1
Engine displacement
600
2
Year
1997
3
Trim
600 XCR - 0975677
4
Parts Catalog
FOX SHOCK
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
CRANKCASE
FOX SHOCK
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
-
SHOCK RR.TRK X10 FOX (Incl. 1-23)
7041595
Not Available
1
BUSHING SHAFT END
5432040
9999999
Not Available
2
AIR VALVE ASSEMBLY
1500014
9999999
Not Available
3
SCREW
1500019
9999999
Not Available
4
BUSHING 1.40
5020657
9999999
Not Available
5
O-RING .103W-1.549ID
1500108
$15,74 Unit Price incl. VAT
6
PISTON
1500011
9999999
Not Available
7
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
8
O-RING ENDCAP
1500003
9999999
Not Available
9
PLATE BACKUP
1500015
9999999
Not Available
10
PISTON
1500149
9999999
Not Available
11
O-RING INNER
1500021
9999999
Not Available
12
WIPER INNER
1500025
1500266
$52,49 Unit Price incl. VAT
13
WIPER CLR OUTER
1500024
5433298
$23,09 Unit Price incl. VAT
14
EYELET-.88W 1.38TLG 808-05-002
1500302
9999999
Not Available
15
BRG.ASM W/BLD SS.
1500151
9999999
Not Available
16
O-RING; .103 X 1.299
1500020
9999999
Not Available
17
PLATE TOP OUT
1500017
9999999
Not Available
18
DAMPER; PISTON RING
1500002
9999999
Not Available
19
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
20
O-RING DRUM OUTER
1500022
9999999
Not Available
21
SCREW
1500018
9999999
Not Available
22
O-RING OUTER
1500023
9999999
Not Available
23
CAP BODY
1500073
Not Available

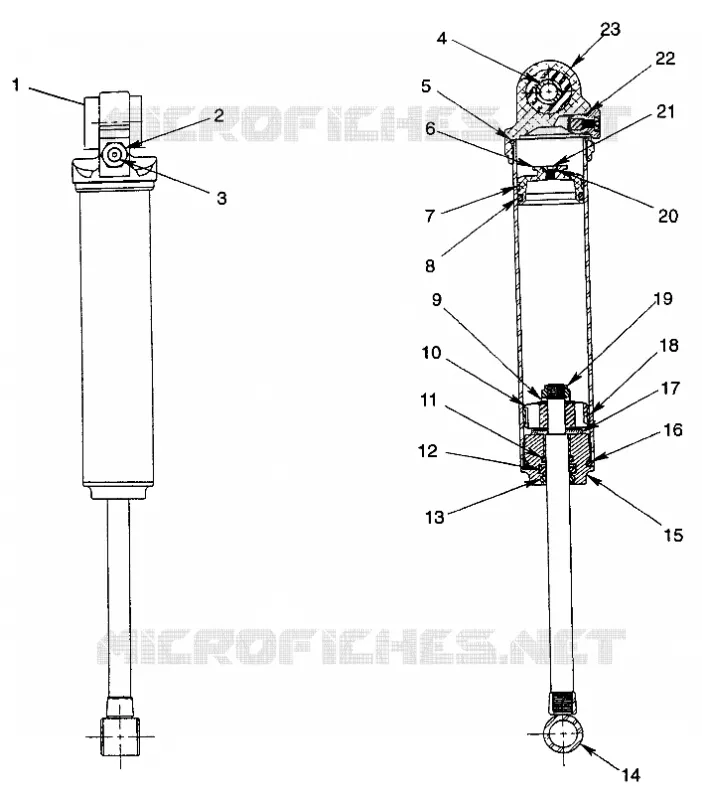

Find the detailed FOX SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
