1
Engine displacement
550
2
Year
2003
3
Trim
550 TRAIL TOURING
4
Parts Catalog
OIL TANK
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by
AIR BOX
OIL TANK
18
19
20
21
18
19
20
21
21
21
21
22
22
23
1
ASM-OIL TANK W/FOILFC
1253352
9999999
Not Available
2
FOIL OIL TANK
5811934
9999999
Not Available
3
DECAL FUEL SHUT-OFF
7077442
Not Available
4
BOLT
7512276
$9,44 Unit Price incl. VAT
5
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
6
NUT
7670096
$3,14 Unit Price incl. VAT
7
OIL LEVER SENSOR
4110134
$141,74 Unit Price incl. VAT
8
VENTED OIL CAP CUSTOM COLOR
1240094
1244736
$68,24 Unit Price incl. VAT
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SCREW
7517264
9999999
Not Available
12
GROMMET
7052028
$11,54 Unit Price incl. VAT
13
FTTNG 90 D.PRESS-ON
7052208
$11,54 Unit Price incl. VAT
14
RIVET
7661637
$2,09 Unit Price incl. VAT
15
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
16
SCREW(10)
7517615
9999999
Not Available
17
BRKT FUEL PUMP MOUNT-Z
5242680
9999999
Not Available
18
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
19
BRKT-OIL TANK W/BRIDGE
5244339
9999999
Not Available
20
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
21
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
22
FUEL LINE; 1/4 ID
84500031525
Not Available
23
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT

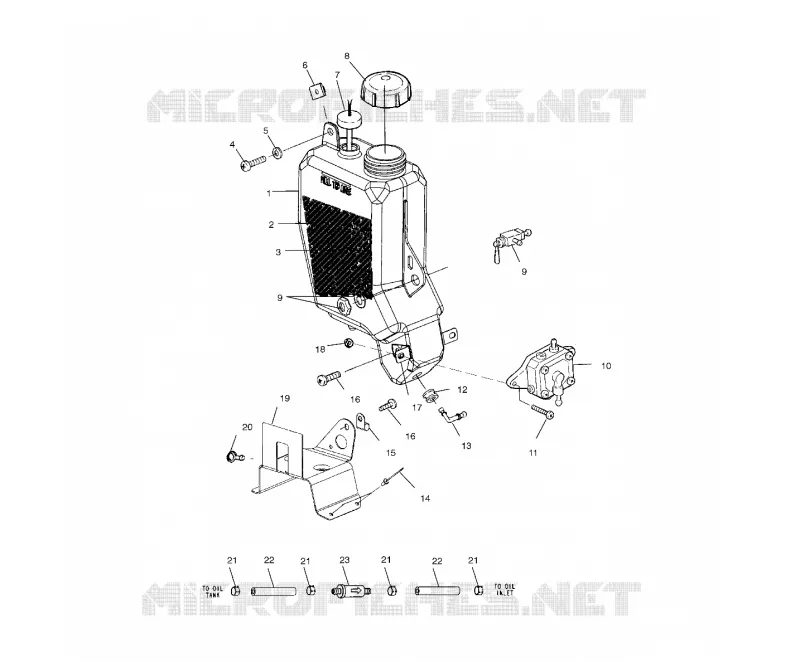

Find the detailed OIL TANK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
