Parts Catalog
ENGINE MOUNTING XLT LTD 0973756 AND EUROPEAN XLT LTD E973756 (4937793779C001)
5
Parts Diagram
Parts Catalog
TOOL KIT XLT LTD 0973756 AND EUROPEAN XLT LTD E973756 (4937793779B014)
by
EXHAUST SYSTEM XLT LTD 0973756 AND EUROPEAN XLT LTD E973756 (4937793779C002)
ENGINE MOUNTING XLT LTD 0973756 AND EUROPEAN XLT LTD E973756 (4937793779C001)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
15
15
16
16
16
16
17
17
18
19
20
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
36
36
37
38
39
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
15
15
16
16
16
16
17
17
18
19
20
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
34
35
36
36
36
37
38
39
1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
CONDUIT CONVOLUTED
4010051
9999999
Not Available
7
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
8
ENG.(S.B.)EC58PL-09 [No Longer Available]
3085355
Not Available
9
WELL NUT
7541923
$10,49 Unit Price incl. VAT
10
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
13
WASHER
7555740
$3,14 Unit Price incl. VAT
14
MOUNT ENGINE
5410390
9999999
Not Available
15
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
16
PLATE MTR.MT RH
5240796
9999999
Not Available
16
PLATE MTR.MT LH
5240795
Not Available
17
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
18
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
19
BOLT
7512575
9999999
Not Available
20
ENGINE MOUNT
3110061
9999999
Not Available
21
WASHER FLAT(10)
7555915
$6,29 Unit Price incl. VAT
22
NUT FLEXLOC
7542402
9999999
Not Available
23
NUT HEX
7542414
$9,44 Unit Price incl. VAT
24
LIMITER
1011503067
Not Available
25
RIVET
7661637
$2,09 Unit Price incl. VAT
26
STOP TORQUE COARSE
3110056
Not Available
27
SPACER (MTR.MT.)
5332778
9999999
Not Available
28
SCREW(10)
7512222
9999999
Not Available
29
WASHER
7552604
$3,14 Unit Price incl. VAT
30
HANDLE RECOIL
5431499
9999999
Not Available
31
SCREW
7512530
$10,49 Unit Price incl. VAT
32
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
33
THROTTLE CABLE W/ OIL
7080543
9999999
Not Available
34
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
35
FUEL LINE; 600 CM
8450040600
Not Available
36
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
37
FUEL FILTER
2530008
9999999
Not Available
38
HOSE BULK 1/4 FUEL LINE [No Longer Available]
2871059
Not Available
39
VALVE FUEL SHUT-OFF
7052060
9999999
Not Available

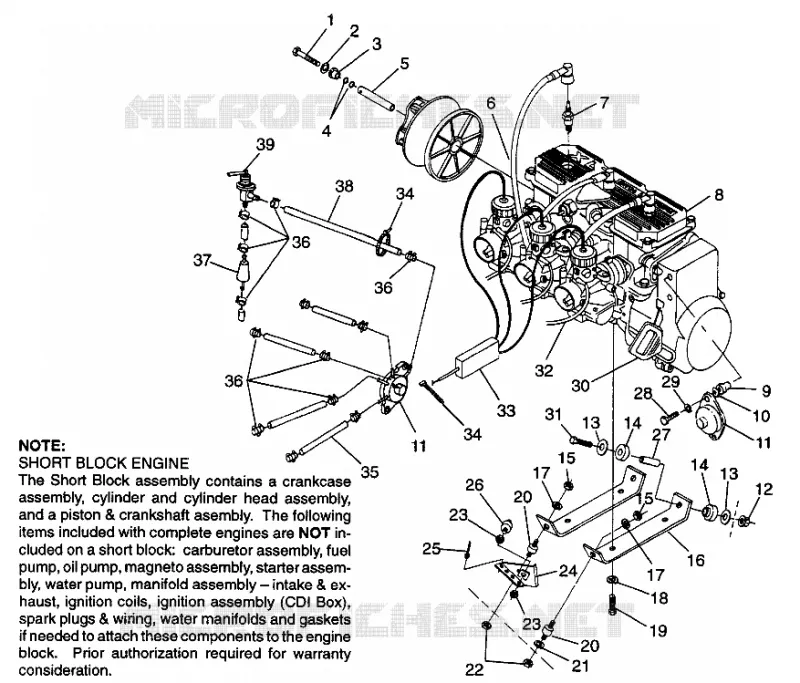

Find the detailed ENGINE MOUNTING XLT LTD 0973756 AND EUROPEAN XLT LTD E973756 (4937793779C001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
