1
Engine displacement
autre
2
Year
1994
3
Trim
EURO XLT - E940767
4
Parts Catalog
CARBURETOR XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420036)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420035)
by
TUNNEL ASSEMBLY XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420001)
CARBURETOR XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420036)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
1
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130439
$27,29 Unit Price incl. VAT
3
THROTTLE PLATE
3130027
$19,94 Unit Price incl. VAT
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET
3130374
9999999
Not Available
6
VALVE THROTTLE 2.0 (2.0)
3130464
Not Available
7
NEEDLE JET(Q-2)
3130376
9999999
Not Available
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
12
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
13
SPRING
3130010
$18,89 Unit Price incl. VAT
14
SCREW THROTTLE STOP
3130009
9999999
Not Available
15
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
16
SPRING AIR ADJUST
3130012
9999999
Not Available
17
JET PILOT #35(10)
3130066
9999999
Not Available
18
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
19
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
20
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
21
PLUG TRAP
5431001
5431893
$26,24 Unit Price incl. VAT
22
FUEL LINE; 1/4 ID
84500031525
Not Available
23
FITTING SEDIMENT
5020476
9999999
Not Available
24
O-RING
3130239
9999999
Not Available
25
JET; MAIN
3130123
9999999
Not Available
26
WASHER
3130014
$3,14 Unit Price incl. VAT
27
CARBURETOR
3130463
9999999
Not Available
28
FLOAT ASSEMBLY
3130430
$73,49 Unit Price incl. VAT
29
CAP
3130237
$8,39 Unit Price incl. VAT
30
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
31
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
32
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
33
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
34
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT

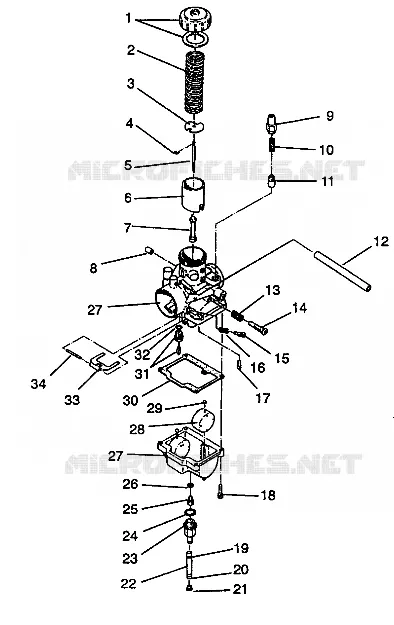

Find the detailed CARBURETOR XLT E940767, XLT SP E940667 XLT SKS E940567 (49274227420036) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
