Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
SEAT SLIDER
by
FRONT BUMPER
ENGINE, AIR INTAKE SYSTEM
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
29
30
31
1
2
2
2
2
2
2
2
2
2
2
2
2
2
6
7
8
9
10
11
12
13
14
15
16
17
18
20
29
30
1
AIRBOX SUPPORT WELD; BLACK
1017918329
Not Available
2
MAIN AIR INTAKE ASSEMBLY
1240698
9999999
Not Available
3
ROD-NUT FLAT PIVOT M6
5138692
$4,48 Unit Price incl. VAT
3
ROD-NUT PIVOT M6
5137498
5138692
$4,48 Unit Price incl. VAT
4
BSHG-FLG 21X9.5X10.5
5137652
$5,24 Unit Price incl. VAT
5
GROMMET-BASE TOP
5414160
$7,34 Unit Price incl. VAT
6
AIRBOX BASE
5439632
9999999
Not Available
7
KNOB; 6 MM X 1.0 MM
7081690
9999999
Not Available
8
INTAKE ASSEMBLY; RESONATOR
1240634
9999999
Not Available
9
DRAIN CAP
5412960
$31,49 Unit Price incl. VAT
10
BOX-INTAKE RES.
5438704
9999999
Not Available
11
CLAMP-HOSE
7081488
9999999
Not Available
12
AIRBOX MOUNT BRACKET; LOWER
5254608
9999999
Not Available
13
BRKT-SPT INTAKE BOX YZ
5254859
5258645
$52,49 Unit Price incl. VAT
14
GROMMET
5412507
$12,59 Unit Price incl. VAT
15
ASM-BOOT TWIN TB RND
5413981
9999999
Not Available
16
BOOT TWIN TB RND
5413982
9999999
Not Available
17
INTAKE TUBE; 95 MM
5438562
9999999
Not Available
18
AIRBOX LID
5438322
9999999
Not Available
19
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
20
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
21
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
22
INTAKE HOSE LONG
5414284
9999999
Not Available
23
CLAMP-BAND 12MM X 184-235MM SS
7081672
$41,99 Unit Price incl. VAT
24
INTAKE SEAL FOAM
5813750
9999999
Not Available
25
NARROW BAND CLAMP; 70-90 MM
7081279
$5,76 Unit Price incl. VAT
26
BUSHING-PANEL SNAP 30.2MM
7081697
9999999
Not Available
27
ASM.; FILTER; INTAKE
7081622
7081889
$57,63 Unit Price incl. VAT
28
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
29
SCREW
7517685
$3,14 Unit Price incl. VAT
30
LINE-CRANKCASE VENT
5414497
9999999
Not Available
31
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT

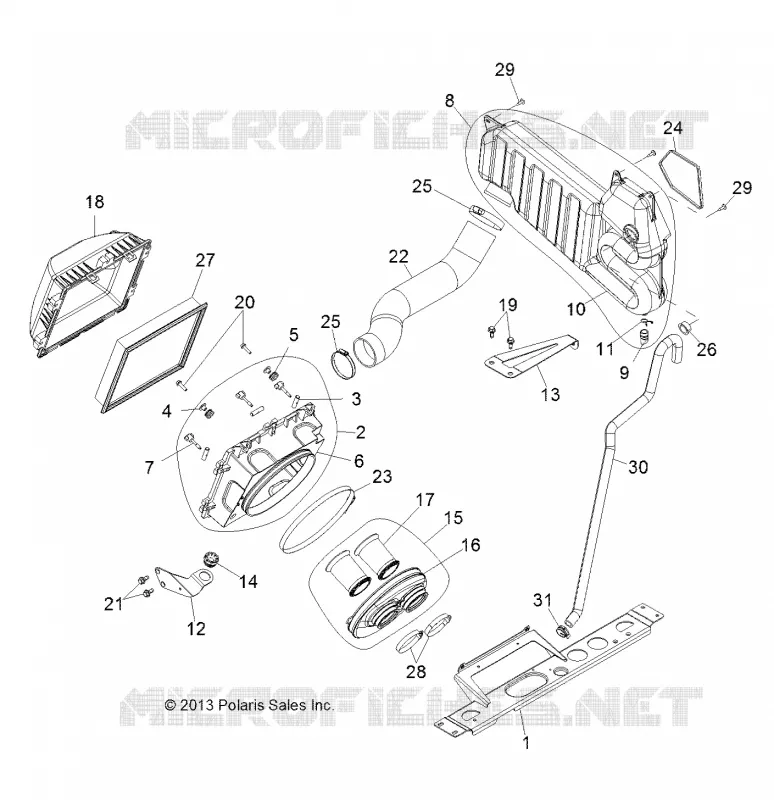

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
