POWER STEERING EPS for POLARIS SPORTSMAN TOURING 570 SP PREMIUM from 2020

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

STEERING, HANDLEBAR & CONTROLS

POWER STEERING EPS

1

STEERING POST WELD; UPPER; BLACK

1824678329

Not Available

2

STEERING POST ASSEMBLY; LOWER

1824203

1830310

$220,49 Unit Price incl. VAT

3

POWER STEERING ASSEMBLY ATV

2415061

9999999

Not Available

4

STEERING BUSHING BRACKET; UPPER

5257028

$62,99 Unit Price incl. VAT

5

PLATE-MNT POWER STEERING BLK

5259190329

Not Available

6

STEERING BUSHING; UPPER; 1 IN

5439731

$12,59 Unit Price incl. VAT

7

SCREW

7515398

9999999

Not Available

8

SCREW

7516827

$12,59 Unit Price incl. VAT

9

BOLT

7517428

$4,19 Unit Price incl. VAT

10

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

11

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

12

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

13

TIE ROD ASSEMBLY

1824206

$194,24 Unit Price incl. VAT

14

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

15

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

16

WASHER

7556153

$3,66 Unit Price incl. VAT

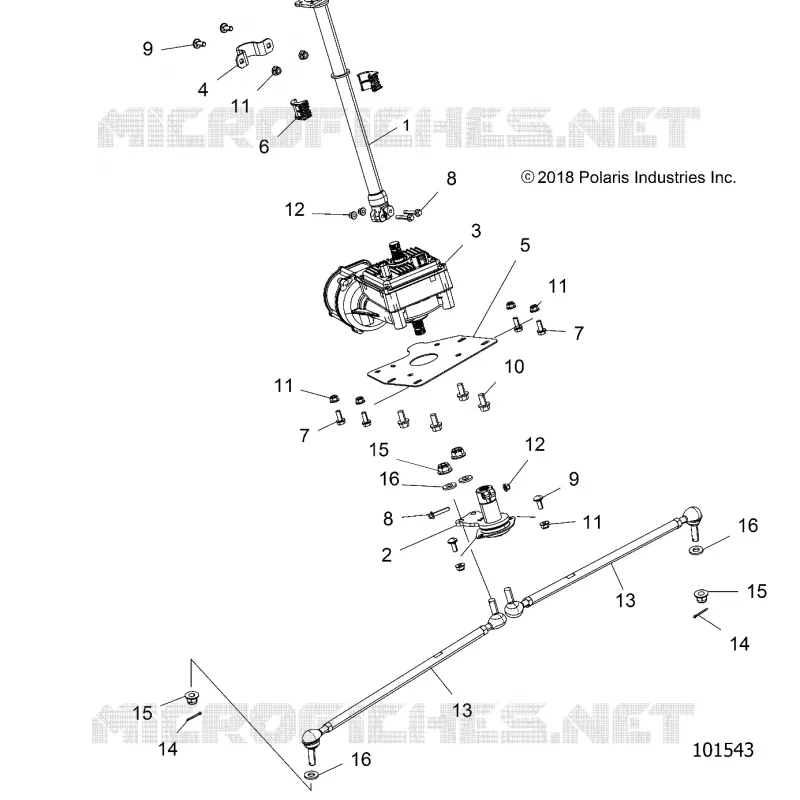

Find the detailed POWER STEERING EPS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN TOURING 570 SP PREMIUM

RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP

SEAT

STORAGE BOX, REAR

BODY, FRONT STORAGE

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, REAR DRIVE SHAFT

COOLING SYSTEM

CLUTCH COVER

HEADLIGHT POD

REAR CAB AND FOOTWELLS

REAR RACK AND HAND GRIPS

BRAKE LINES

BRAKES, FRONT BRAKE LEVER AND MASTER CYLINDER

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT PROP SHAFT

BATTERY

HEADLIGHTS

ELECTRICAL, VOLTAGE REGULATOR AND MOUNTING

ENGINE, AIR INTAKE SYSTEM SUPPORT BRACKET

EXHAUST

ENGINE, MOUNTING

ENGINE, VALVE COVER

OWNERS MANUAL

FRONT SUSPENSION SHOCK

TORSION BAR

DECALSS

FRONT BUMPER AND MOUNTING

BODY, FRONT CAB & SIDE PANELS

FUEL TANK ASM.

FRONT BRAKE CALIPER MOUNTING

REAR BRAKE CALIPER

CHASSIS, FRAME

CHASSIS, FUEL TANK SUPPORT BRACKET

IGNITION COIL, WIRE AND SPARK PLUG

MAIN WIRE HARNESS

SWITCHES, SENSORS AND ECM

TAIL LAMPS

OIL FILTER AND DIPSTICK

OIL PUMP

STARTER DRIVE

ENGINE, STATOR COVER AND FLYWHEEL

THERMOSTAT AND COVER

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, REAR TIRE AND BRAKE DISC

CRANKCASE

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

CYLINDER

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

POWER STEERING EPS

STEERING, HANDLEBAR & CONTROLS

FRONT SUSPENSION

BODYWORK

REAR RACK ADDITIOINAL RED REFLECTOR

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

FRONT BRAKE CALIPER

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, SECONDARY CLUTCH

GAUGES & INDICATORS

ENGINE, AIR INTAKE SYSTEM

CAM CHAIN AND SPROCKET

CYLINDER HEAD, CAMS AND VALVES

LONG BLOCK

THROTTLE BODY AND FUEL RAIL

ENGINE, WATERPUMP IMPELLER AND COVER

REAR SUSPENSION

TOOL KIT

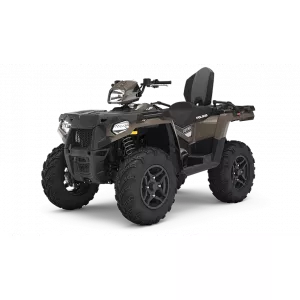

POLARIS SPORTSMAN TOURING 570 SP PREMIUM 2020
