ENGINE MOUNTING for POLARIS SPORTSMAN 500 RSE - A00CH50AJ from 2000

ENGINE MOUNTING

1

NYLOK NUT

7546601

$2,09 Unit Price incl. VAT

2

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

3

HOSE (.25 IDX1.75LG.)

5811490

9999999

Not Available

4

FUEL LINE; 600 CM

8450040600

Not Available

5

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

6

CLAMP BAND; NARROW

7080413

$5,76 Unit Price incl. VAT

7

BOOT CARB

5410995

9999999

Not Available

8

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

9

FUEL LINE; 1/4 ID

84500031525

Not Available

10

FITTING TEE

7052075

$17,84 Unit Price incl. VAT

11

MOUNT; RUBBER

3110032

9999999

Not Available

12

WASHER

7552605

9999999

Not Available

13

NUTSERT HEX

7547069

$7,34 Unit Price incl. VAT

14

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

15

STRAP CARB.MT BLK.

5211626067

Not Available

16

LINE FUEL 1/8 ID 600 CM.

8360009600

Not Available

17

BOLT

7512315

$9,44 Unit Price incl. VAT

18

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

19

NUT

7547108

$9,44 Unit Price incl. VAT

20

CLAMP HOSE SPRING

7080694

$10,49 Unit Price incl. VAT

21

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

22

FLAT WASHER

7555815

$7,34 Unit Price incl. VAT

23

MOUNT RUBBER FRONT

3110046

9999999

Not Available

24

CLAMP NYLON CABLE

7080539

$9,44 Unit Price incl. VAT

25

RIVET

7621462

$2,09 Unit Price incl. VAT

26

FRAME SUPPORT STRAP; MEDIUM GLOSS BLACK

5224658067

Not Available

27

BOLT

7512566

9999999

Not Available

28

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

29

WASHER

5210748

$7,34 Unit Price incl. VAT

30

BUSHING

5430261

$13,64 Unit Price incl. VAT

31

CLUTCH INTAKE BOOT

5410421

9999999

Not Available

32

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

33

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

34

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

35

HOSE CLAMP

7080474

$13,64 Unit Price incl. VAT

36

SCREW

7515417

9999999

Not Available

37

MOUNT FR.ENGINE BLK.

5241150067

Not Available

38

MOUNT RUBBER TOP

3110044

3024012

$83,99 Unit Price incl. VAT

39

WASHER

7555801

$7,34 Unit Price incl. VAT

40

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

41

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

42

MANIFOLD BLK

1260771029

Not Available

43

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

44

ENG.(S.B.)EH50PLE-01

3085556

9990000

Not Available

45

MOUNT ENG TOP BLK

5241453067

Not Available

46

BOLT

7512232

$2,09 Unit Price incl. VAT

47

CABLE GND-ENGINE

4010132

9999999

Not Available

48

SMALL IN-LINE FILTER

2530009

$12,59 Unit Price incl. VAT

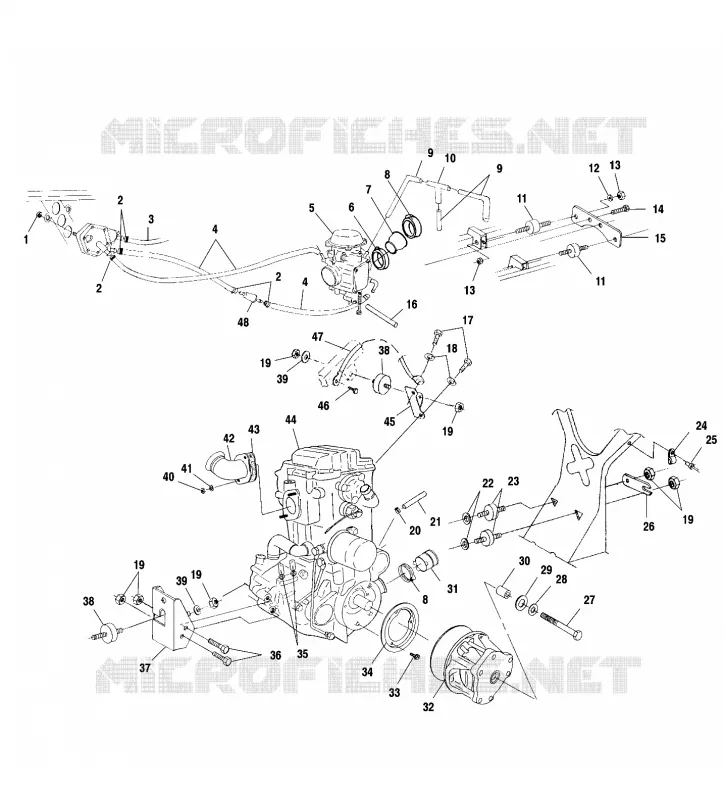

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
