1
Engine displacement
800
2
Year
2017
3
Trim
RANGER 800 6X6 MD POLAND
4
Parts Catalog
HOOD AND FRONT FASCIA
5
Parts Diagram
Parts Catalog
GLOVE BOX
by
HOOD LATCH
HOOD AND FRONT FASCIA
1
2
3
4
4
4
5
6
7
8
9
9
10
11
11
12
13
14
14
15
1
HOOD PANEL; SB GRN MTLC;
5438256498
Not Available
2
HINGE ASSEMBLY
5437902
$19,94 Unit Price incl. VAT
3
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
4
SCREW
7517685
$3,14 Unit Price incl. VAT
5
K-DASH RGR 6X6MD
2207398
Not Available
6
SCREW
7512026
$2,09 Unit Price incl. VAT
7
CUP HOLDER
5436836
$36,74 Unit Price incl. VAT
8
HOOD LINER; BLACK
5438975070
Not Available
9
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
10
FASCIA; FRONT; GLOSS BLACK
5437575070
Not Available
11
SCREW 1/4-20 TORX
7518375
$2,09 Unit Price incl. VAT
12
FENDER FLARE; FRONT; RIGHT; GLOSS BLACK
5437569070
Not Available
13
FENDER WITH FLARE; LEFT; GLOSS BLACK
5437568070
Not Available
14
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
15
WASHER .281 X 1.00 X 0.51
7556329
$2,09 Unit Price incl. VAT

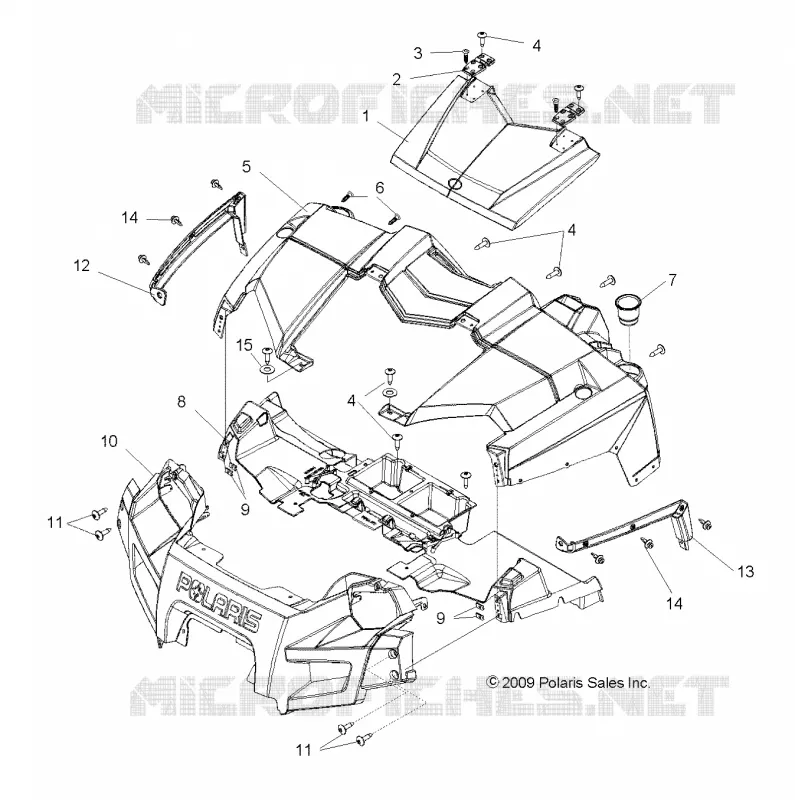

Find the detailed HOOD AND FRONT FASCIA POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
