FRONT TORQUE ARM TRAIL 0962761 (4931763176C005)
5
Parts Diagram
Parts Catalog
TOOL KIT TRAIL 0962761, TRAIL TOURING 0962262, AND EUROPEAN TRAIL TOURING E (4931763176B012)
by
FRONT TORQUE ARM TRAIL TOURING 0962262, AND EUROPEAN TRAIL TOURING E962262 (4931763176C006)
FRONT TORQUE ARM TRAIL 0962761 (4931763176C005)
1
BOLT(10)
7515432
9999999
Not Available
2
SHAFT MTG REAR
5020570
9999999
Not Available
3
ARM FR.TORQUE
1540973067
Not Available
4
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
5
EYE BOLT
7010050
9999999
Not Available
6
RETAINER SPRING
5241276067
Not Available
7
SPRING SHIELD
5430671
9999999
Not Available
8
SHOCK FR.TRACK
7041430
9999999
Not Available
9
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
10
COMPRESSION SPRING MEDIUM GLOSS BLACK
7041253067
Not Available
11
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
12
WAVE SPRING WASHER
7555795
$2,09 Unit Price incl. VAT
13
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
14
NUT LOCK
7542403
9999999
Not Available
15
SPACER
5333028
9999999
Not Available
16
ARM SHOCK
1540942067
Not Available
17
BOLT
7515438
$9,44 Unit Price incl. VAT
18
BOLT
7515472
$4,19 Unit Price incl. VAT
19
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
20
SPACER OUTER
5332784
9999999
Not Available
21
BUSHING
7556301
$6,29 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
SCREW
7515415
9999999
Not Available
24
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
25
WASHER
7555716
$3,14 Unit Price incl. VAT
26
BOLT
7515307
$7,34 Unit Price incl. VAT
27
STRAP LIMITER FRONT
5411045
9999999
Not Available

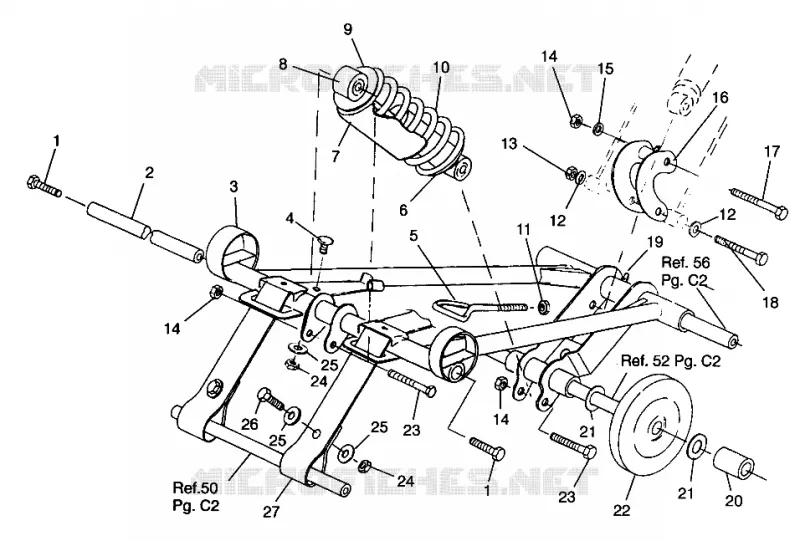

Find the detailed FRONT TORQUE ARM TRAIL 0962761 (4931763176C005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
