1
Engine displacement
500
2
Year
1999
3
Trim
WORKER 500 - A99CH50EA
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
DECALS
by
CV JOINT
COOLING SYSTEM
1
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
2
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
3
HOSE 3/4X22
5411410
9999999
Not Available
4
HOSE-LOWER ENGINE
5411072
9999999
Not Available
5
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
6
SWITCH-THERMAL; 4 STROKE; 500CC
4010202
9999999
Not Available
7
CAP; RADIATOR
2511189
9999999
Not Available
8
RADIATOR"U"FLOW
1240015
9999999
Not Available
9
WASHER
7552605
9999999
Not Available
10
BOLT
7512113
$7,34 Unit Price incl. VAT
11
O-RING
5410607
9999999
Not Available
12
COVER RADIATOR W/MESH
5431760
9999999
Not Available
13
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
14
VALVE;DRAIN COCK
7052181
9999999
Not Available
15
SHROUD FAN (ATV)
5432593
9999999
Not Available
16
MOUNT SPACER
5020572
9999999
Not Available
17
MOUNT; RUBBER
3110032
9999999
Not Available
18
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
19
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
20
NUT (10)
7547004
$9,44 Unit Price incl. VAT
21
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
22
MOTOR FAN LIQ D-SHAFT CONN
4170013
9999999
Not Available
23
BRKT.COOL.FAN BLK
5241355067
Not Available
24
BOLT
7512232
$2,09 Unit Price incl. VAT
25
SCREW
7517475
9999999
Not Available
26
BLADE FAN NYLON 8
5242550
9999999
Not Available
27
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
28
GASKET
5810279
$4,19 Unit Price incl. VAT
29
PLUG CAP
5431895
5433774
$10,49 Unit Price incl. VAT
30
TANK; SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
31
FUEL LINE; 1/4 ID
84500031525
Not Available
32
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
33
SCREW
7512084
$2,09 Unit Price incl. VAT

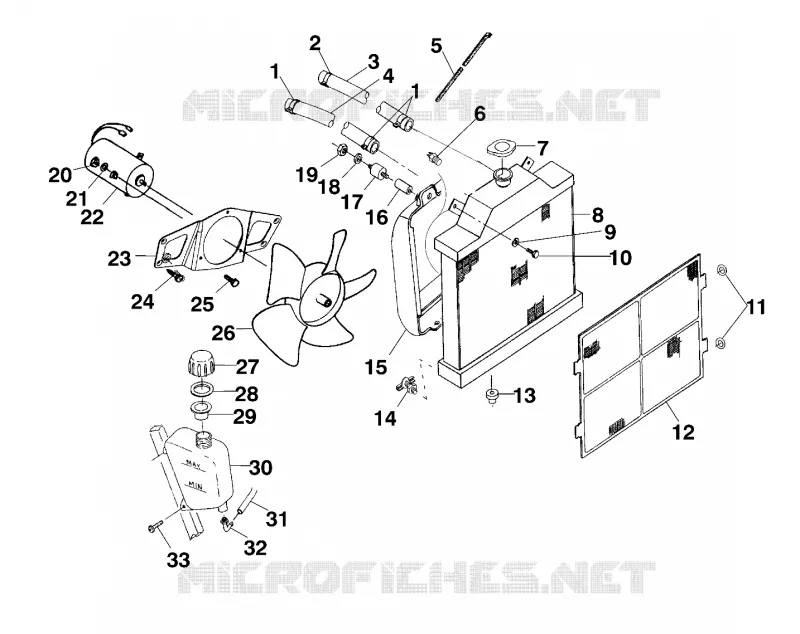

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
