RIGHT HAND GEARCASE BRAKE MOUNTING. (4911701170037A) for POLARIS TRAIL BOSS

DRIVEN CLUTCH ASSEMBLY. (4911701170036A)

GEARCASE ASSEMBLY (4911701170038A)

GEARCASE ASM.(2X4)

1341058

9990000

Not Available

SHIFTER

3231501

9999999

Not Available

COVER BRAKE DISC [No Longer Available]

5220598

Not Available

BOLT

7515320

Not Available

BALL STEEL

3231502

Not Available

WASHER WROUGHT

7558302

$3,14 Unit Price incl. VAT

SPRING

3231550

9999999

Not Available

DISC BRAKE

1910021

9999999

Not Available

SHAFT SHIFT

3231504

9999999

Not Available

WASHER [No Longer Available]

3231575

Not Available

CALIPER BRAKE [No Longer Available]

1910026

Not Available

BEARING

3231506

9999999

Not Available

KIT PUCK REPLACEMENT

2200231

9999999

Not Available

SEAL OIL

3231507

9999999

Not Available

BOLT SPECIAL

7512665

9999999

Not Available

PLATE;BOLT LOCK

5220611

9999999

Not Available

SHAFT INPUT

3231508

9999999

Not Available

COLLAR

3231509

Not Available

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

GEAR

3231510

9999999

Not Available

BEARING

3231511

9999999

Not Available

GEARCASE COMPL. Substituted by 1341041

1341027

Not Available

SHAFT

3231512

9999999

Not Available

SCREW

7512307

$7,34 Unit Price incl. VAT

WASHER

3231513

9999999

Not Available

DECAL Substituted by 7072602

7072242

Not Available

GEAR

3231514

Not Available

GUARD SPROCKET

5220644

Not Available

GEAR

3231515

9999999

Not Available

SCREW

7512208

9999999

Not Available

BUSHING SWING ARM MT.

5630267

9999999

Not Available

SEAL OIL Substituted by 3231516

3231570

Not Available

SUPPORT

3231517

9999999

Not Available

CASE LH

3231571

9999999

Not Available

CASE RH Substituted by 3231583

3231572

Not Available

PACKING

3231553

9999999

Not Available

SEAL OIL

3231521

9999999

Not Available

SHAFT SELECT

3231559

9999999

Not Available

GEAR Substituted by 3231585

3231523

Not Available

GEAR

3231524

9999999

Not Available

WASHER

3231525

Not Available

BEARING NEEDLE

3231526

9999999

Not Available

WASHER

3231527

9999999

Not Available

SEAL OIL

3231528

9999999

Not Available

GEAR

3231529

9999999

Not Available

BOLT(10)

7512391

9999999

Not Available

C RING

3231531

9999999

Not Available

SHAFT OUTPUT

3231573

9999999

Not Available

WASHER SHAKEPROOF 5/16

7577902

Not Available

CHAIN; DRIVE

3224043

9999999

Not Available

SPKT 13T (SPLINED)

3221045

3221041

$83,99 Unit Price incl. VAT

SPROCKET; 11 TOOTH

3221043

$73,49 Unit Price incl. VAT

SPROCKET; 12 TOOTH

3221044

$83,99 Unit Price incl. VAT

CONNECTOR LINK

3225024

9999999

Not Available

PLUG DRAIN 20MM MAGNET

3231569

9999999

Not Available

GASKET [No Longer Available]

3231538

Not Available

GASKET

3231539

9999999

Not Available

PLUG OIL

3231561

9999999

Not Available

BOLT [No Longer Available]

3231541

Not Available

BOLT [No Longer Available]

3231542

Not Available

PIPE KNOCK

3231543

9999999

Not Available

NUT(10) [No Longer Available]

3231544

Not Available

WASHER SPRING(10)

3231545

Not Available

BOLT [No Longer Available]

3231546

Not Available

BOLT [No Longer Available]

3231547

Not Available

PIPE BREATHER

3231548

Not Available

NUT LOCK

3231555

Not Available

KEY; HI-PRO

7721113

9999999

Not Available

SW REV./NEUT.INDIC.

4110062

$62,99 Unit Price incl. VAT

NUT

7542404

$3,14 Unit Price incl. VAT

BOLT

7515485

9999999

Not Available

SHIM 25 0.1

3231577

Not Available

SHIM 25 0.3

3231576

Not Available

SHIM 20 0.3

3231564

9999999

Not Available

SHIM 20 0.1

3231565

9999999

Not Available

SW REV./NEUT.INDIC.

4110062

$62,99 Unit Price incl. VAT

SPACER WASHER DRIVEN CLUTCH

5211041

9999999

Not Available

BELT-DRIVE(5)

3211048

3211077

$107,93 Unit Price incl. VAT

CLUTCH; DRIVEN

1322112

9999999

Not Available

BOLT

7515327

$10,49 Unit Price incl. VAT

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

DOMED WASHER

5220646

$4,19 Unit Price incl. VAT

BEARING

3231574

Not Available

WASHER

3231505

9999999

Not Available

SHIM 25 0.1

3231563

9999999

Not Available

SHIM 25 0.3

3231562

9999999

Not Available

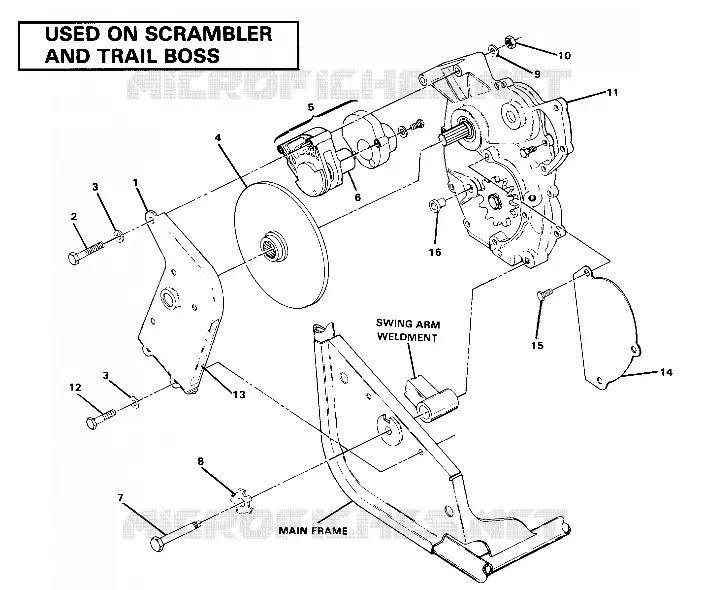

Find the detailed RIGHT HAND GEARCASE BRAKE MOUNTING. (4911701170037A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
