1
Engine displacement
1000
2
Year
2019
3
Trim
RANGER 1000 CREW NORTHSTAR RIDE COMMAND 49/50S
4
Parts Catalog
SEAT ASM. AND SLIDER
5
Parts Diagram
Parts Catalog
SEALING FOAM
by
DRIVE TRAIN, FRONT, MID, REAR PROP SHAFT

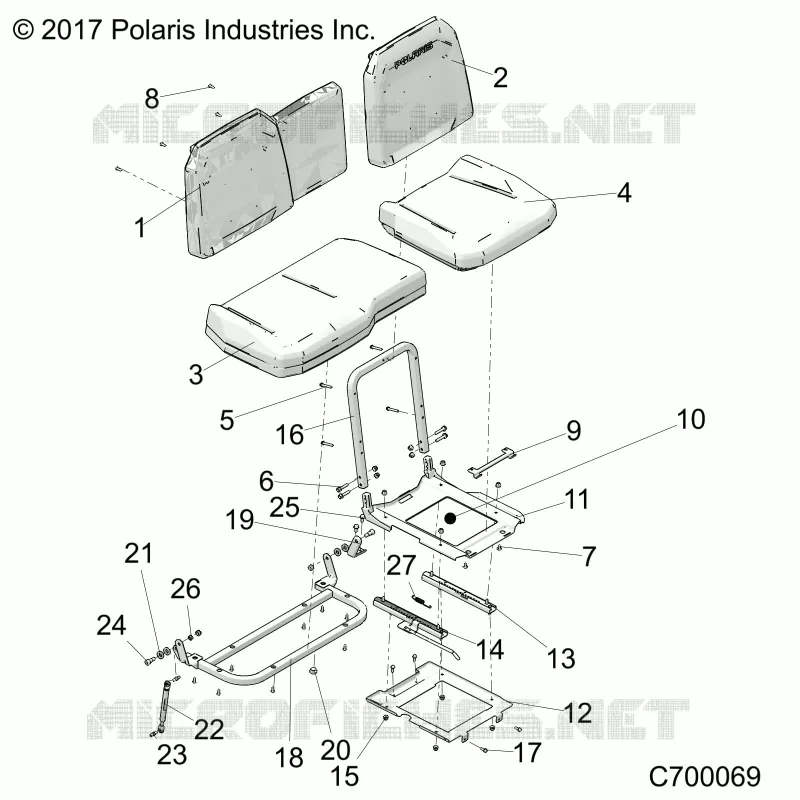

SEAT ASM. AND SLIDER
1
1
2
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
SEAT ASM BACK BLACK/POLARIS PURSUIT CAMO
2689002
9999999
Not Available
1
SEAT BACK ASSEMBLY; BLACK/GRAY
2689015
9999999
Not Available
2
SEAT ASSEMBLY; BACK; 40
2689008
9999999
Not Available
2
SEAT ASSEMBLY; BACK; BLACK/GRAY
2689021
9999999
Not Available
3
BOTTOM SEAT ASSEMBLY
2689005
$745,49 Unit Price incl. VAT
3
BOTTOM SEAT ASSEMBLY; BLACK AND GRAY
2689018
$745,49 Unit Price incl. VAT
4
SEAT ASSEMBLY; BOTTOM;40; BLACK/GRAY
2689024
$745,49 Unit Price incl. VAT
4
SEAT ASSEMBLY; BOTTOM
2689011
$629,99 Unit Price incl. VAT
5
SCREW #14 X 1-3/4(10)
7512093
$2,09 Unit Price incl. VAT
6
SCR-HXFL-M8X1.25X45 8.8 ZOD
7519738
$7,34 Unit Price incl. VAT
7
SCR-M6X1X16 TR/TX-M
7518936
$7,34 Unit Price incl. VAT
8
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
9
DOUBLE SEAT HINGE BRACKET; MATTE BLACK
5265262458
Not Available
10
SEAT SLIDE ASSEMBLY
2688492
$834,74 Unit Price incl. VAT
11
WELD-SLIDE SEAT TOP BLK
1023808458
Not Available
12
SEAT BRACKET; BOTTOM; MATTE BLACK
5265236458
Not Available
13
SLIDE SEAT LH
7081852
7082834
$99,74 Unit Price incl. VAT
14
SEAT SLIDE RIGHT
7081853
7082835
$99,74 Unit Price incl. VAT
15
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
16
SEAT BACK TUBE; MATTE BLACK
5340280458
Not Available
17
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
18
PASSENGER SEAT BASE WELD; MATTE BLACK
1023099458
Not Available
19
BRKT-SEAT PIVOT;BLK
5263494458
Not Available
20
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
21
SEATBELT WASHER; RUBBER
5813829
$2,09 Unit Price incl. VAT
22
GAS SHOCK; 285 MM
7044799
7046186
$73,49 Unit Price incl. VAT
23
END BALL
7082301
7083089
$5,24 Unit Price incl. VAT
24
SCR-SHS-M10X1.5-M12X16 RIE
7519355
$19,94 Unit Price incl. VAT
25
SCR-HWH-M8X1.25X20 TAP/R ZPB
7519780
$9,44 Unit Price incl. VAT
26
NUT-HH M10X1.5 NYLOC ZOD
7547442
$7,34 Unit Price incl. VAT
27
SPRING-SEAT SLIDER
7082394
9999999
Not Available

Find the detailed SEAT ASM. AND SLIDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
