1
Engine displacement
570
2
Year
2018
3
Trim
ACE 570 EFI EURO
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
ENGINE, STATOR COVER AND FLYWHEEL
by
SUSPENSION, FRONT STRUT
STEERING
1
2
3
1
5
23
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
2
3
1
1
5
23
7
8
8
9
10
10
11
11
12
13
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
25
26
27
28
29
30
30
31
32
33
34
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
OUTER TIE ROD
7061189
$136,49 Unit Price incl. VAT
3
JAM NUT; LEFT; 14-1.5 MM
2205058
$41,99 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BOOT CLAMP; SMALL
7080978
$4,19 Unit Price incl. VAT
6
DRIVER SIDE BOOT RACK
5412012
$115,49 Unit Price incl. VAT
7
BOOT CLAMP; LARGE
7080979
$10,49 Unit Price incl. VAT
8
SHOULDER BOLT; 8-16 MM; 6 MM X 1.0 MM
7518786
$4,19 Unit Price incl. VAT
9
HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM
7518644
$9,44 Unit Price incl. VAT
10
BUSHING-TILT STEERING
5439154
9999999
Not Available
11
STEERING BUSHING
7556675
$24,14 Unit Price incl. VAT
12
HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM
7519217
$3,14 Unit Price incl. VAT
13
STEERING BEARING
3514646
$27,29 Unit Price incl. VAT
14
STEERING WHEEL; 14 IN.
1823623
$246,74 Unit Price incl. VAT
15
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
16
STEERING WHEEL CAP
5436536
$62,99 Unit Price incl. VAT
17
WELD-PIVOT TUBE W/STRG LOCK;BK
1021219458
Not Available
18
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
19
SHAFT-STEERING 17T
1824546
9999999
Not Available
20
WASHER
7556099
$3,14 Unit Price incl. VAT
21
NUT-NY INS;M10X1.5;HEX;ZINC;YW
7547385
$2,09 Unit Price incl. VAT
22
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
23
DRIVER SIDE BOOT RACK
5412012
$115,49 Unit Price incl. VAT
24
HEX FLANGE SCREW 10 MM X 1.25 MM X 75 MM
7519854
$31,49 Unit Price incl. VAT
25
WASHER
7555919
$7,34 Unit Price incl. VAT
26
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
27
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
28
STEERING GEARBOX ASSEMBLY
1824540
9999999
Not Available
29
ASM-SHOCK TILT STEERING
7044420
$125,99 Unit Price incl. VAT
30
SCR-SHS-M10X1.5-M12X16 RIE
7519355
$19,94 Unit Price incl. VAT
31
NUT-HH M10X1.5 NYLOC ZOD
7547442
$7,34 Unit Price incl. VAT
32
COLLAR-STEERING LOCK;MATTE BLK
5632295458
Not Available
33
LOCK-STEERING 1000COMBINATIONS
7082045
9999999
Not Available
34
SCR-M5X.8X10 TX BTN PIN-IN-HD
7518457
$4,19 Unit Price incl. VAT

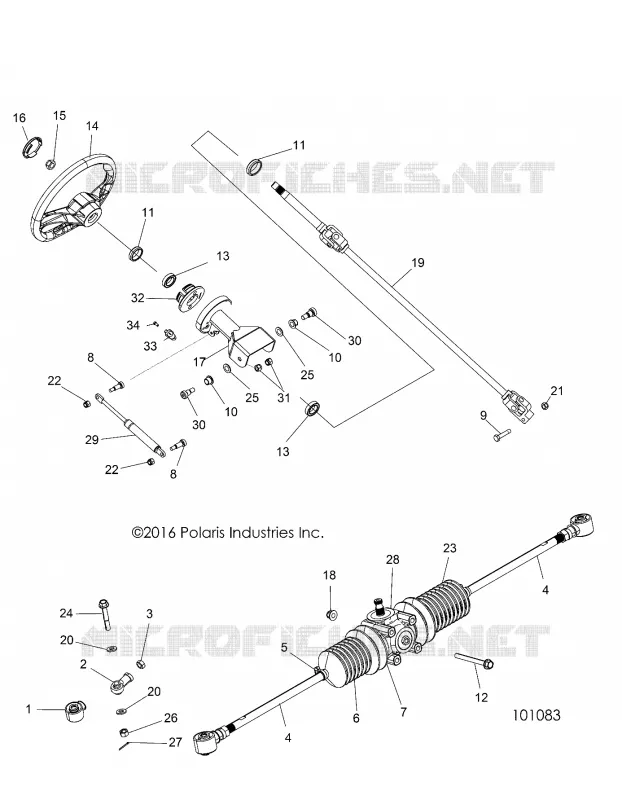

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for ACE 570 EFI EURO

HOOD AND FRONT BODY WORK

HOOD AND FRONT BODY WORK

for ACE 570 EFI EURO from 2018

REAR BODYWORK RACK AND FENDERS

REAR BODYWORK RACK AND FENDERS

for ACE 570 EFI EURO from 2018

SEAT ASM.

SEAT ASM.

for ACE 570 EFI EURO from 2018

SEAT MOUNTING AND BELT

SEAT MOUNTING AND BELT

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for ACE 570 EFI EURO from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for ACE 570 EFI EURO from 2018

ENGINE, BREATHER

ENGINE, BREATHER

for ACE 570 EFI EURO from 2018

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for ACE 570 EFI EURO from 2018

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for ACE 570 EFI EURO from 2018

ENGINE, THROTTLE BODY AND FUEL RAIL

ENGINE, THROTTLE BODY AND FUEL RAIL

for ACE 570 EFI EURO from 2018

ENGINE, THROTTLE PEDAL

ENGINE, THROTTLE PEDAL

for ACE 570 EFI EURO from 2018

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for ACE 570 EFI EURO from 2018

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for ACE 570 EFI EURO from 2018

DECALS

DECALS

for ACE 570 EFI EURO from 2018

FUEL TANK

FUEL TANK

for ACE 570 EFI EURO from 2018

SIDE NETS

SIDE NETS

for ACE 570 EFI EURO from 2018

BRAKES, BRAKE LINES AND MASTER CYLINDER

BRAKES, BRAKE LINES AND MASTER CYLINDER

for ACE 570 EFI EURO from 2018

CHASSIS, MAIN FRAME AND SKID PLATE

CHASSIS, MAIN FRAME AND SKID PLATE

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, FRONT GEARCASE INTERNALS

DRIVE TRAIN, FRONT GEARCASE INTERNALS

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR HALF SHAFT

for ACE 570 EFI EURO from 2018

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for ACE 570 EFI EURO from 2018

ELECTRICAL, SENSORS

ELECTRICAL, SENSORS

for ACE 570 EFI EURO from 2018

ELECTRICAL, TURN SIGNALS, HORN AND MIRRORS

ELECTRICAL, TURN SIGNALS, HORN AND MIRRORS

for ACE 570 EFI EURO from 2018

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for ACE 570 EFI EURO from 2018

ENGINE, CYLINDER HEAD, CAMS AND VALVES

ENGINE, CYLINDER HEAD, CAMS AND VALVES

for ACE 570 EFI EURO from 2018

STARTER DRIVE

STARTER DRIVE

for ACE 570 EFI EURO from 2018

THERMOSTAT AND COVER

THERMOSTAT AND COVER

for ACE 570 EFI EURO from 2018

REFERENCES, TOOL KIT AND OWNERS MANUAL

REFERENCES, TOOL KIT AND OWNERS MANUAL

for ACE 570 EFI EURO from 2018

SUSPENSION, A-ARM AND STRUT MOUNTING

SUSPENSION, A-ARM AND STRUT MOUNTING

for ACE 570 EFI EURO from 2018

ENGINE, EXHAUST SYSTEM

ENGINE, EXHAUST SYSTEM

for ACE 570 EFI EURO from 2018

BUMPER, REAR

BUMPER, REAR

for ACE 570 EFI EURO from 2018

FLOOR AND ROCKER PANELS

FLOOR AND ROCKER PANELS

for ACE 570 EFI EURO from 2018

SPLASH SHIELDS

SPLASH SHIELDS

for ACE 570 EFI EURO from 2018

BARKE CALIPER MOUNTING

BARKE CALIPER MOUNTING

for ACE 570 EFI EURO from 2018

CHASSIS, CAB FRAME AND SIDE BARS

CHASSIS, CAB FRAME AND SIDE BARS

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, FRONT GEARCASE MOUNTING- A18DAA57F5 (101081)

DRIVE TRAIN, FRONT GEARCASE MOUNTING- A18DAA57F5 (101081)

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for ACE 570 EFI EURO from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for ACE 570 EFI EURO from 2018

ELECTRICAL, TAILLAMPS

ELECTRICAL, TAILLAMPS

for ACE 570 EFI EURO from 2018

ELECTRICAL, WIRE HARNESS

ELECTRICAL, WIRE HARNESS

for ACE 570 EFI EURO from 2018

CRANKCASE

CRANKCASE

for ACE 570 EFI EURO from 2018

CYLINDER

CYLINDER

for ACE 570 EFI EURO from 2018

ENGINE, ENGINE AND TRANSMISSION MOUNTING

ENGINE, ENGINE AND TRANSMISSION MOUNTING

for ACE 570 EFI EURO from 2018

OIL PUMP

OIL PUMP

for ACE 570 EFI EURO from 2018

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for ACE 570 EFI EURO from 2018

STEERING

STEERING

for ACE 570 EFI EURO from 2018

SUSPENSION, FRONT STRUT

SUSPENSION, FRONT STRUT

for ACE 570 EFI EURO from 2018

BUMPER, FRONT

BUMPER, FRONT

for ACE 570 EFI EURO from 2018

BRAKES, FRONT BRAKE CALIPER

BRAKES, FRONT BRAKE CALIPER

for ACE 570 EFI EURO from 2018

BRAKES, REAR CALIPER

BRAKES, REAR CALIPER

for ACE 570 EFI EURO from 2018

BRAKES, PARKING BRAKE LEVER ASM.

BRAKES, PARKING BRAKE LEVER ASM.

for ACE 570 EFI EURO from 2018

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

BRAKES, PEDAL AND MASTER CYLINDER MOUNTING

for ACE 570 EFI EURO from 2018

ELECTRICAL, DASH INSTRUMENTS AND SWITCHES

ELECTRICAL, DASH INSTRUMENTS AND SWITCHES

for ACE 570 EFI EURO from 2018

ELECTRICAL, HEADLIGHTS

ELECTRICAL, HEADLIGHTS

for ACE 570 EFI EURO from 2018

ELECTRICAL, IGNITION

ELECTRICAL, IGNITION

for ACE 570 EFI EURO from 2018

ELECTRICAL, RELAY, DIFFERENTIAL

ELECTRICAL, RELAY, DIFFERENTIAL

for ACE 570 EFI EURO from 2018

ENGINE, EXHAUST SYSTEM SHIELDS

ENGINE, EXHAUST SYSTEM SHIELDS

for ACE 570 EFI EURO from 2018

ENGINE, FUEL INJECTOR 2521068 O-RINGS

ENGINE, FUEL INJECTOR 2521068 O-RINGS

for ACE 570 EFI EURO from 2018

LONG BLOCK

LONG BLOCK

for ACE 570 EFI EURO from 2018

ENGINE, OIL FILTER AND DIPSTICK

ENGINE, OIL FILTER AND DIPSTICK

for ACE 570 EFI EURO from 2018

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for ACE 570 EFI EURO from 2018

SUSPENSION, REAR SHOCK MOUNTING

SUSPENSION, REAR SHOCK MOUNTING

for ACE 570 EFI EURO from 2018

SUSPENSION, REAR STABILIZER BAR

SUSPENSION, REAR STABILIZER BAR

for ACE 570 EFI EURO from 2018

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, FRONT TIRE AND BRAKE DISC

for ACE 570 EFI EURO from 2018

WHEELS, REAR

WHEELS, REAR

for ACE 570 EFI EURO from 2018

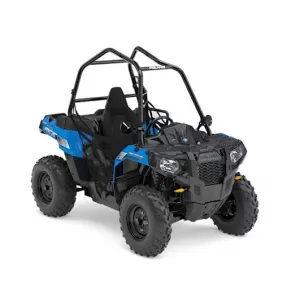

POLARIS ACE 570 EFI EURO 2018
