Engine displacement
570
2
Year
2016
3
Trim
RANGER 570
4
Parts Catalog
HOOD, DASH AND GRILL
5
Parts Diagram
Parts Catalog
FUEL TANK ASM.
by
BRAKES, BRAKE LINES AND MASTER CYLINDER
HOOD, DASH AND GRILL
1
1
1
1
1
2
3
3
4
4
5
5
6
7
8
9
10
11
12
12
13
14
15
15
15
15
16
17
18
19
20
1
HOOD; SOLAR RED
5451006342
Not Available
1
BASIC HOOD; SUNSET RED
5451347520
Not Available
1
HOOD POLARIS PURSUIT CAMO
5451352587
Not Available
1
HOOD; SAGEBRUSH GREEN METALLIC
5451006498
Not Available
2
FRONT FASCIA; GLOSS BLACK
5451005070
Not Available
3
HOOD RETAINER STRAP
5415295
$16,79 Unit Price incl. VAT
4
DASH-PANEL LOWER CPI BLK
5452627070
Not Available
4
PANEL DASH; LOWER; GLOSS BLACK
5451129070
Not Available
5
BOLT
7519650
$7,34 Unit Price incl. VAT
6
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
7
CLEVIS PIN; 1/4 X 3/4
7661843
$4,19 Unit Price incl. VAT
8
PIN-HITCH 1/16-Y
7662139
$2,09 Unit Price incl. VAT
9
GLOVEBOX COVER; GLOSS BLACK
5451007070
Not Available
10
SEAL-GLOVEBOX
5522052
$5,24 Unit Price incl. VAT
11
RUBBER GROMMET; MOUNT; 25 IN.
5412504
$7,34 Unit Price incl. VAT
12
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
13
PANEL DASH; UPPER; GLOSS BLACK
5451009070
Not Available
14
DASH TRIM CLIP
7519806
$7,34 Unit Price incl. VAT
15
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
16
NUT-7/16 PUSHNUT
7710820
$2,09 Unit Price incl. VAT
17
CUP HOLDER
5436836
$36,74 Unit Price incl. VAT
18
SHIFT LEVER GROMMET
5414249
$41,99 Unit Price incl. VAT
19
GROMMET-STEERING
5415087
$68,24 Unit Price incl. VAT
20
BOLT RETAINER; 1/4 -20
7670154
$2,09 Unit Price incl. VAT

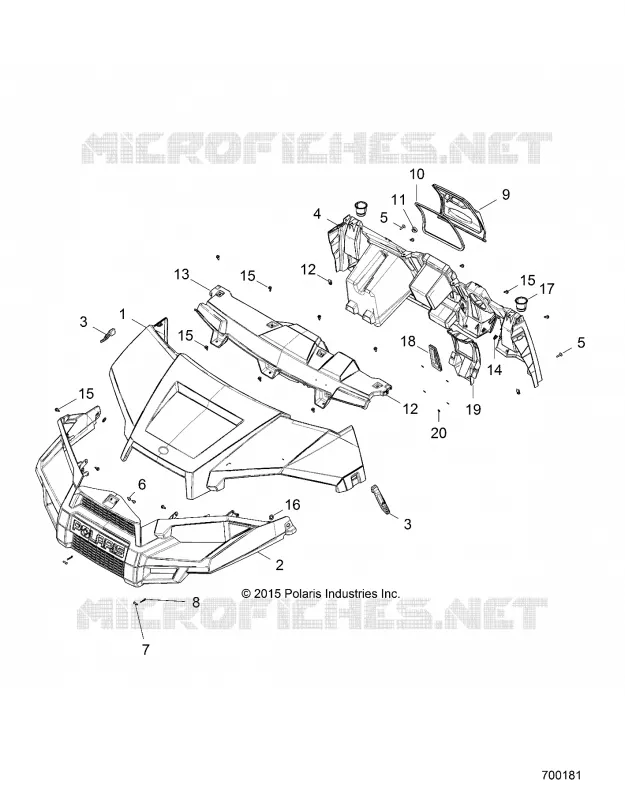

Find the detailed HOOD, DASH AND GRILL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
