1
Engine displacement
700
2
Year
2005
3
Trim
SPORTSMAN MV7 - A05MH68AP
4
Parts Catalog
INLET EXHAUST
5
Parts Diagram
Parts Catalog
GEARCASE MOUNTING, REAR
by
DIPSTICK
INLET EXHAUST
1
2
3
4
5
6
6
7
8
9
10
11
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
14
14
15
15
16
1
ROCKER ARM ASSEMBLY
1202169
$204,74 Unit Price incl. VAT
2
PUSHROD
5132402
5138254
$99,74 Unit Price incl. VAT
3
CAMSHAFT KIT
2202693
9999999
Not Available
4
THRUST PLATE
5244286
9999999
Not Available
5
SCREW
7517598
$19,94 Unit Price incl. VAT
6
SUB ASM-SPLIT GEAR
1202735
9999999
Not Available
7
SPRNG-COMPRESSION 4.85X1.44X25
7041999
9999999
Not Available
8
SPRING WASHER; 1.1 X .559 X .0315
7556183
$17,84 Unit Price incl. VAT
9
HEX FLANGE SCREW; 8 MM X 1.25 MM X 45 MM
7517865
$20,99 Unit Price incl. VAT
10
LIFTER-VALVE HYDRAULIC
5134152
5137206
$68,24 Unit Price incl. VAT
11
HI-TEMP EXHAUST VALVE; 35 MM
5133363
9999999
Not Available
12
VALVE-INTAKE 35MM
5132696
5137265
$73,49 Unit Price incl. VAT
13
VALVE GUIDE SEAL
5411895
9999999
Not Available
14
SPRING VALVE
7041565
9999999
Not Available
15
SPRING RETAINER
5131413
9999999
Not Available
16
VALVE STEM RETAINER LOCK
5910042
$10,49 Unit Price incl. VAT

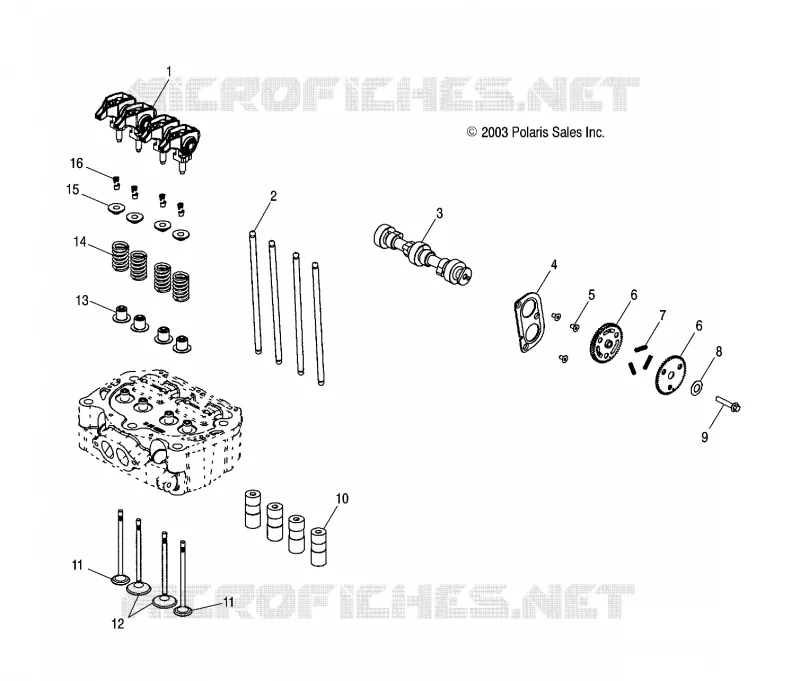

Find the detailed INLET EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
