WHEELS, FRONT
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION SHOCK (7043778)
by
WHEELS, REAR
WHEELS, FRONT
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
1
WHEEL NUT
7547309
$6,81 Unit Price incl. VAT
2
RIM-FRONT 12X6 WE 26.2 OFST BK
1522058067
Not Available
3
VALVE-RIM
1522123
9999999
Not Available
4
CASTLE NUT; 18 MM X 1.5 MM
7547337
$3,66 Unit Price incl. VAT
5
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
6
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
7
FRONT WHEEL HUB; MEDIUM GLOSS BLACK
5137659067
Not Available
8
STUD
7517871
$3,14 Unit Price incl. VAT
9
FRONT DISC BRAKE
5254999
$125,99 Unit Price incl. VAT
10
TIRE-FRONT 26X9-12 MAXXIS
5413644
9999999
Not Available
11
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
12
SEALED BALL BEARING; 44 X 72 X 33.1
3514699
$73,49 Unit Price incl. VAT
13
CARRIER-BEARING FRONT LH(MACH)
5138231
5139976
$188,99 Unit Price incl. VAT
13
CARRIER-BEARING FRONT RH(MACH)
5138232
5139977
$182,69 Unit Price incl. VAT
14
RING-12IN WE BEADLOCKV BLUE
1522062619
Not Available
15
BOLT FRONT LEFT 10 MM X 1.5 MM X 20 MM
7518978
$7,34 Unit Price incl. VAT
16
SCR-6MMX1X20 HX/CP
7518925
$6,29 Unit Price incl. VAT
17
WASHER
7555827
$7,34 Unit Price incl. VAT

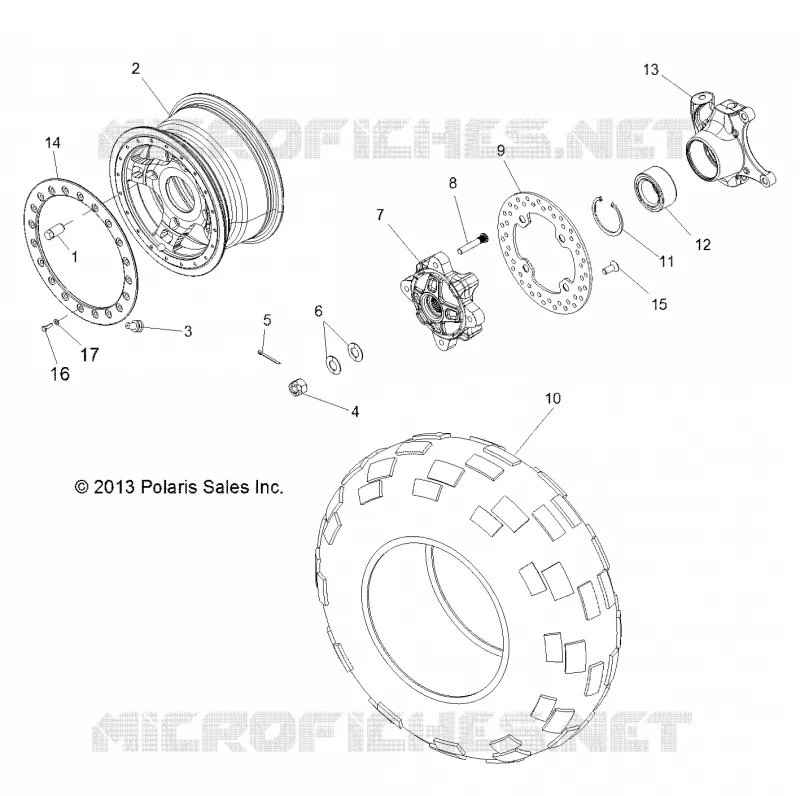

Find the detailed WHEELS, FRONT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
