CARBURETOR for POLARIS TRAIL BLAZER - A05BA25CA from 2005

CARBURETOR

1

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

2

THROTTLE SPRING

3130354

9999999

Not Available

3

THROTTLE PLATE

3130002

9999999

Not Available

4

NEEDLE-JET (5DP7-2)

3130356

3130155

$52,49 Unit Price incl. VAT

5

WASHER

3130355

9999999

Not Available

6

THROTTLE VALVE

3130420

9999999

Not Available

7

CAP; PLUNGER

3130359

9999999

Not Available

8

SPRING PLUNGER

3130006

3131764

$18,89 Unit Price incl. VAT

9

PLUNGER ASSEMBLY

3130328

$68,24 Unit Price incl. VAT

10

SPRING AIR ADJUST

3130012

9999999

Not Available

11

AIR SCREW

3130011

$36,74 Unit Price incl. VAT

12

SPRING

3130010

$18,89 Unit Price incl. VAT

13

SCREW THROTTLE STOP

3130324

9999999

Not Available

14

JET PILOT #40(10)

3130067

9999999

Not Available

15

WASHER

3130014

$3,14 Unit Price incl. VAT

16

ASM. SCREW & WASHER(10)

3130025

$6,29 Unit Price incl. VAT

17

DRAIN PLUG

3130321

$41,99 Unit Price incl. VAT

18

O-RING

3130239

9999999

Not Available

19

JET MAIN HX.HD#130

3130109

$15,74 Unit Price incl. VAT

20

FLOAT CHAMBER ASSEMBLY

3130441

9999999

Not Available

21

FLOAT ASSEMBLY

3130021

$83,99 Unit Price incl. VAT

22

CAP

3130237

$8,39 Unit Price incl. VAT

23

FLOAT CHAMBER GASKET

3130020

$31,49 Unit Price incl. VAT

24

VALVE NEEDLE

3131459

9999999

Not Available

25

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

26

FLOAT PIN

3130361

$18,89 Unit Price incl. VAT

27

NEEDLE VALVE PACKING

3130017

$7,34 Unit Price incl. VAT

28

ASM-CARBURETOR

3131381

9999999

Not Available

29

NEEDLE JET

3130409

9999999

Not Available

30

E RING

3130003

3130508

$12,59 Unit Price incl. VAT

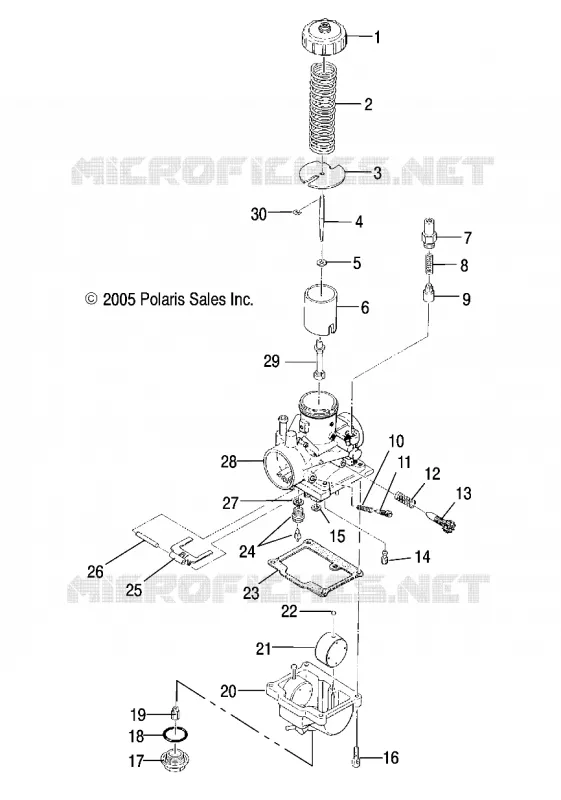

Find the detailed CARBURETOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
