ENGINE, COOLING SYSTEM for POLARIS RZR XP 4 TURBO from 2021

ENGINE, COOLING SYSTEM

1

ASM-CORE RADIATOR

1241388

$1 044,74 Unit Price incl. VAT

2

BRUSHLESS FAN ASSEMBLY

2414657

$512,39 Unit Price incl. VAT

3

HEX HEAD FLANGE SCREW; 6 MM X 16 MM

7518591

$6,29 Unit Price incl. VAT

4

MOUNT BRACKET; RADIATOR; LEFT; BLACK

5263170329

Not Available

5

RADIATOR BRACKET MOUNT; RIGHT; BLACK

5263171329

Not Available

6

BRKT-MOUNT RADIATOR ECOAT

5268338329

Not Available

7

GROMMET

7052028

$11,54 Unit Price incl. VAT

8

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

9

RADIATOR SHROUD; UPPER

5452630

$36,74 Unit Price incl. VAT

10

SCR-M6X1X16 TR/TX-M

7518936

$7,34 Unit Price incl. VAT

11

HOSE-OUT SURGE TANK TO TEE

5415443

9999999

Not Available

12

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

13

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

14

IAC HOSE; SHORT

5813672

$12,59 Unit Price incl. VAT

15

HOSE CLAMP

7080236

$3,14 Unit Price incl. VAT

16

SCREW #14 X 1 HI/LO

7518158

$9,44 Unit Price incl. VAT

17

COOLANT TUBE; 1 IN

5141784

$83,99 Unit Price incl. VAT

18

COOLANT TUBE; 1 IN; MP

5141785

$83,99 Unit Price incl. VAT

19

COOLANT TUBE BRACKET; BLACK

5259433329

Not Available

20

COOLANT TUBE BRACKET; BLACK

5265342329

Not Available

21

COOLANT TUBE BRACKET

5451221

$16,79 Unit Price incl. VAT

22

SCR-M6X1X40 TR/TX-M

7519001

$7,34 Unit Price incl. VAT

23

SCREW

7512026

$2,09 Unit Price incl. VAT

24

ENGINE OUTLET HOSE; REAR

5414530

$141,74 Unit Price incl. VAT

25

ENGINE INLET HOSE; REAR

5414976

$83,99 Unit Price incl. VAT

26

RADIATOR HOSE; UPPER

5416028

$104,99 Unit Price incl. VAT

27

RADIATOR HOSE; LOWER; FRONT

5416030

$62,99 Unit Price incl. VAT

28

RADIATOR HOSE; LOWER; REAR

5415446

9999999

Not Available

29

CONNECTOR-TEE 1 1 1 BARBED

7052373

$19,94 Unit Price incl. VAT

30

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

31

PRESSURE CAP

1240300

$73,49 Unit Price incl. VAT

32

DUAL SURGE TANK WELD

1240943

$230,99 Unit Price incl. VAT

33

1/4SAEJ2002 EPDM HOSE 61 CM

845012061

Not Available

34

FAN BRACKET MOUNT WELD; BLACK

1241122329

Not Available

35

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

36

BUMPER MOUNT BRACKET; FRONT; LEFT; BLACK

5264780329

Not Available

37

BUMPER MOUNT BRACKET FRT UPR RIGHT BLACK

5264781329

Not Available

38

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

39

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

40

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

41

CLIP-COOLANT ROUTING

5453767

$10,49 Unit Price incl. VAT

42

RADIATOR SHROUD

5454422

$136,49 Unit Price incl. VAT

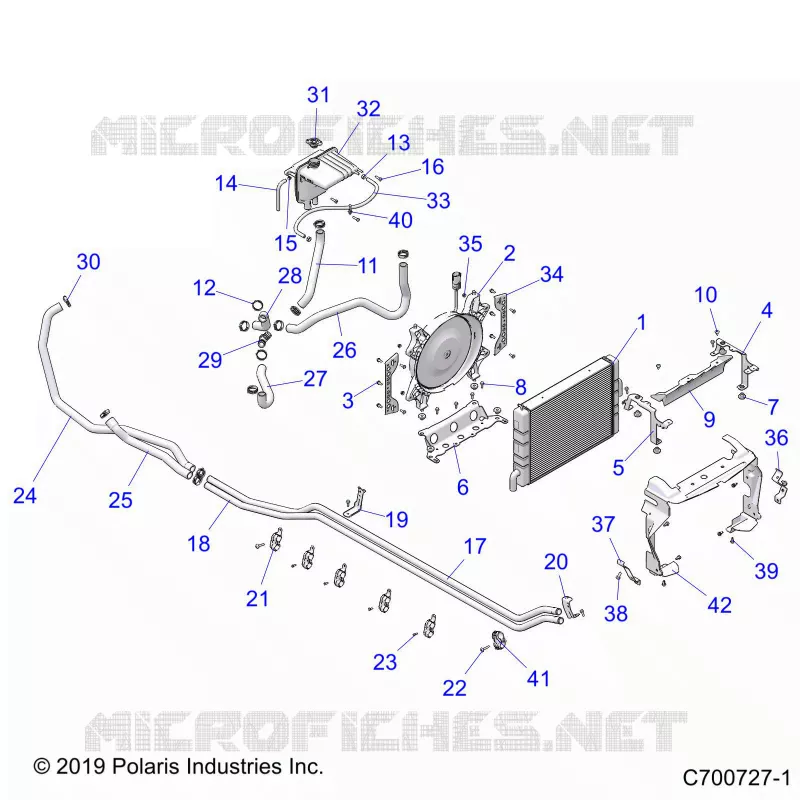

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
