FRONT SUSPENSION A-ARMS for POLARIS SCRAMBLER 1000 55" EU EPS from 2023

STEERING, STEERING POST ASM.

FRONT SUSPENSION HUB AND STEERING KNUCKLE- A23SGE95PN (C101483)

FRONT SUSPENSION A-ARMS

1

WELD-UCA FRONT 55 RH BLK

1025580458

Not Available

1

WELD-UCA FRONT 55 LH BLK

1025579458

Not Available

2

WELD-LCA FRONT 55 RH M.BLK

1023400458

Not Available

2

WELD-LCA FRONT 55 LH M.BLK

1023399458

Not Available

3

EXTERNAL RETAINER RING

7710533

$4,19 Unit Price incl. VAT

4

TAPERED JOINT BALL; 12 MM X 1.50 MM

7061270

$73,49 Unit Price incl. VAT

5

SEALED PIVOT CAP ASSEMBLY; 10 MM

1543611

$10,49 Unit Price incl. VAT

6

SHAFT-PIVOT SHORT M10 43MM

5141292

$8,39 Unit Price incl. VAT

7

STANDARD SUSPENSION BUSHING; 10 MM

5452233

$5,24 Unit Price incl. VAT

8

PIVOT CAP ASSEMBLY; SEALED; 10 MM

1543922

$19,94 Unit Price incl. VAT

9

NUT 12MM X 1.5MM

7547334

$9,44 Unit Price incl. VAT

10

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$7,34 Unit Price incl. VAT

11

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

12

SPIRAL RING; STEEL; 30 MM

7710869

$7,34 Unit Price incl. VAT

13

FLANGE SCREW

7519306

$10,49 Unit Price incl. VAT

14

WASHER

7556153

$3,66 Unit Price incl. VAT

15

STANDARD BUSHING; SUSPENSION; M12

5452271

$6,29 Unit Price incl. VAT

16

WASHER 13 X 2.5

7556287

$13,64 Unit Price incl. VAT

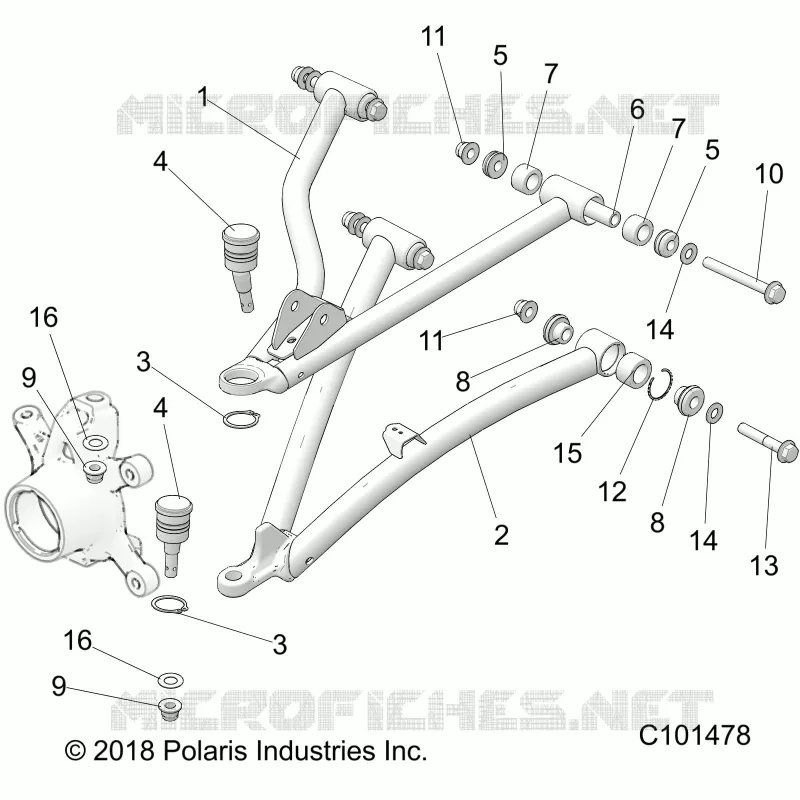

Find the detailed FRONT SUSPENSION A-ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
