FRONT SUSPENSION CONTROL ARMS for POLARIS RANGER 900 DIESEL - R12TH90DG from 2012

FRONT SUSPENSION CONTROL ARMS

1

CONTROL ARM; FRONT; UPPER; RIGHT; GS BLK

1018198067

Not Available

2

CONTROL ARM FRONT UPPER LEFT SIDE GS BLK

1018197067

Not Available

3

SCREW M10 X 1.25-6G

7519043

$17,84 Unit Price incl. VAT

4

73.96 MM. PIVOT SHAFT

5137591

$10,49 Unit Price incl. VAT

5

A-ARM BUSHING; SHORT; BLACK

5439270

$4,19 Unit Price incl. VAT

6

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

7

LOWER FRONT CONTROL ARM; GS BLK

1018186067

Not Available

8

BALL-JOINT LONG STUD

7081666

7061220

$141,74 Unit Price incl. VAT

9

EXTERNAL RETAINER RING

7710533

$4,19 Unit Price incl. VAT

10

CV SHIELD; FRONT; RIGHT; GLOSS BLACK

5437545070

Not Available

11

CV SHIELD; FRONT; LEFT; GLOSS BLACK

5437544070

Not Available

12

SCREW

7512084

$2,09 Unit Price incl. VAT

13

RIGHT HAND WHEEL BEARING CARRIER

5136949

9999999

Not Available

13

WHEEL BEARING CARRIER; LEFT

5136948

$262,49 Unit Price incl. VAT

14

SCREW

7516733

$11,54 Unit Price incl. VAT

15

NUT-M8X1.25C10 HX NYL DIN982 Z

7547405

$2,09 Unit Price incl. VAT

16

BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM

7518760

$17,84 Unit Price incl. VAT

17

BRAKE LINE RETAINER; 1 IN

5439192

$3,14 Unit Price incl. VAT

18

POP RIVET

7621323

$2,09 Unit Price incl. VAT

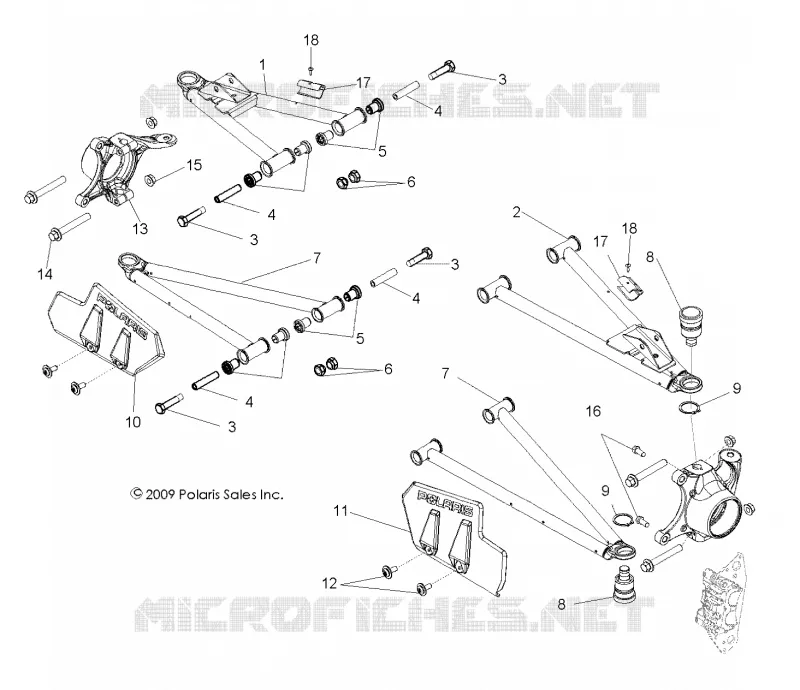

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
