ENGINE MOUNTING CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295031A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295030A)
by
EXHAUST SYSTEM CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295032A)
ENGINE MOUNTING CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295031A)
1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
PRESSURE CAP
2511155
9999999
Not Available
7
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
8
ENG.EC50PL-04 [No Longer Available]
1211483
Not Available
8
ENG. EC50PL-05 [No Longer Available]
1211484
Not Available
9
HANDLE-RECOIL
5430520
Not Available
10
SCREW
7512530
$10,49 Unit Price incl. VAT
11
WASHER
7555740
$3,14 Unit Price incl. VAT
12
MOUNT ENGINE
5410390
9999999
Not Available
13
SPACER (MTR.MT.)
5332778
9999999
Not Available
14
WASHER
7555817
9999999
Not Available
15
NUT FLEXLOCK
7542503
9999999
Not Available
16
PLATE ENG.MT.
5222169
9999999
Not Available
17
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
18
BOLT
7512539
$7,34 Unit Price incl. VAT
19
MOUNT
3110022
9999999
Not Available
20
WASHER
7555721
$2,09 Unit Price incl. VAT
21
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
22
NUT JAM
7542432
$7,34 Unit Price incl. VAT
23
BRACKET TORQUE LIMITER
1011741067
Not Available
24
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
25
FITTING TEE
7052048
$7,34 Unit Price incl. VAT
26
CHECKVALVE VENT
7052047
9999999
Not Available
27
STOP
3110023
9999999
Not Available
28
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
29
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
30
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
31
CABLE; THROTTLE
7080373
9999999
Not Available
32
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
33
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
34
FUEL FILTER
2530008
9999999
Not Available
35
FUEL SHUT OFF VALVE
7052039
9999999
Not Available
36
LINE FUEL GOODYEAR 1/4SAE#30R
8450040
8450040-600
$136,49 Unit Price incl. VAT
37
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

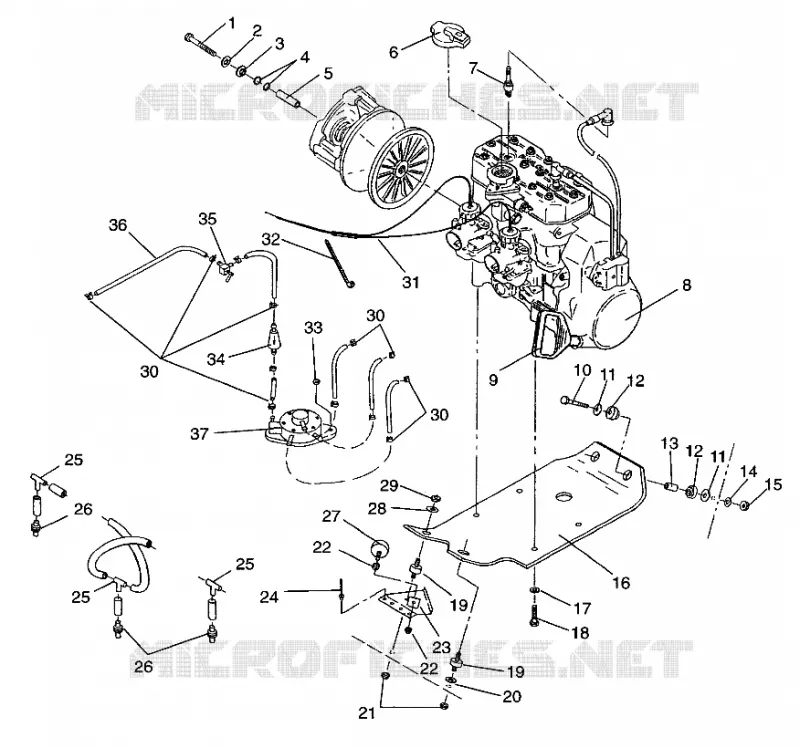

Find the detailed ENGINE MOUNTING CLASSIC / 0930864 AND CLASSIC TOURING / 0930865 (4922952295031A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
