SUSPENSION, TRAILING ARMS for POLARIS RZR TURBO R PREMIUM from 2023

WHEELS, FRONT/REAR

REAR SUSPENSION TRAILING ARMS MOUNTING

SUSPENSION, TRAILING ARMS

1

ASM-TRAILING ARM;74;RH;BLK

1544541458

Not Available

1

ASM-TRAILING ARM;74;LH;BLK

1544540458

Not Available

2

BRKT-DEBRIS FLAP;LH;BLK

5272682458

Not Available

2

BRKT-DEBRIS FLAP;RH;BLK

5272683458

Not Available

3

BRKT-WHEEL SCRAPER LH

5270331

$52,49 Unit Price incl. VAT

3

BRKT-WHEEL SCRAPER RH

5270332

$52,49 Unit Price incl. VAT

4

BRKT-MOUNT; DEBRIS FLAP;BLK

5270915458

Not Available

5

FLAP DEBRIS

5417579

9999999

Not Available

6

BEARING-SPHERICAL; M14;47X55

7082583

$40,94 Unit Price incl. VAT

7

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

8

BOLT-CARR M6X1.0X20 8.8 ZOD

7518994

$6,29 Unit Price incl. VAT

9

SCR-HWH-M8X1.25X20 TAP/R ZPB

7519780

$9,44 Unit Price incl. VAT

10

HEX FLANGE NUT; 6 MM X 1.0 MM

7547453

$7,34 Unit Price incl. VAT

11

RING-SNAP DIN472 47X1.75MM

7710947

$7,34 Unit Price incl. VAT

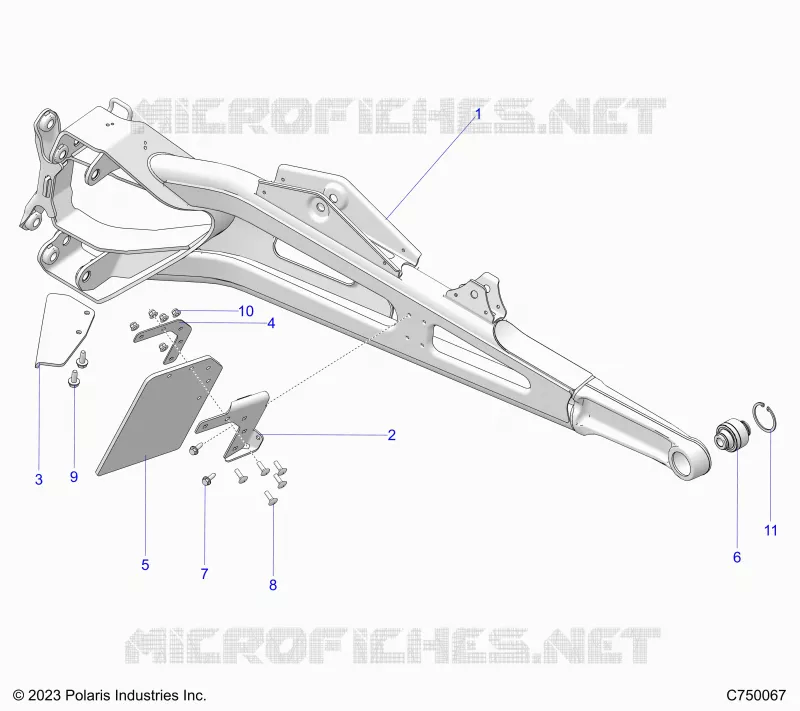

Find the detailed SUSPENSION, TRAILING ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
