Engine displacement
550
2
Year
2002
3
Trim
550 TRAIL TOURING
4
Parts Catalog
PISTON CRANKSHAFT
5
Parts Diagram
Parts Catalog
OIL TANK
by
BLOWER HOUSING RECOIL STARTER
PISTON CRANKSHAFT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
1
1
1
1
2
2
2
2
2
2
3
3
4
4
4
5
5
6
6
7
7
8
8
8
8
9
9
10
11
12
13
14
15
16
16
17
18
19
20
1
STANDARD PISTON RING
3086988
9999999
Not Available
1
PISTON RING .020 IN/50MM
3086990
9999999
Not Available
1
RING PISTON .010 IN
3086989
9999999
Not Available
2
SET PISTON .010/.25MM O/S
3087025
9999999
Not Available
2
PISTON STANDARD
3087024
9999999
Not Available
2
SET PISTON .020/.50MM O/S
3087026
9999999
Not Available
3
PISTON PIN
3083838
2207579
$356,99 Unit Price incl. VAT
4
PISTON PIN CLIP
3084167
2207579
$356,99 Unit Price incl. VAT
5
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
6
END BEARING; LARGE
3086390
9999999
Not Available
7
PIN CRANK 2
3083456
5141629
$57,74 Unit Price incl. VAT
8
CRANKPIN SPACER
3083277
9999999
Not Available
9
CONNECTING ROD
3240083
9999999
Not Available
10
BALL BEARING
3085754
3515059
$88,19 Unit Price incl. VAT
11
SPACER
3085677
5143730
$23,09 Unit Price incl. VAT
12
BALL BEARING
3085753
3515060
$88,19 Unit Price incl. VAT
13
CRANKSHAFT #3PTO SIDE
3085675
9999999
Not Available
14
BALL BEARING
3084586
3515063
$60,89 Unit Price incl. VAT
15
CRANKSHAFT 2; CENTER
3085674
9999999
Not Available
16
CRANKSHAFT #1MAG SIDE
3085673
9999999
Not Available
16
CRANKSHAFT ASSEMBLY
3086389
9999999
Not Available
17
BALL BEARING
3084681
3515061
$141,74 Unit Price incl. VAT
18
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
19
WASHER-SPRING(10)
3083094
7557228
$6,29 Unit Price incl. VAT
20
KEY; WOODRUFF
3080130
3081543
$26,24 Unit Price incl. VAT

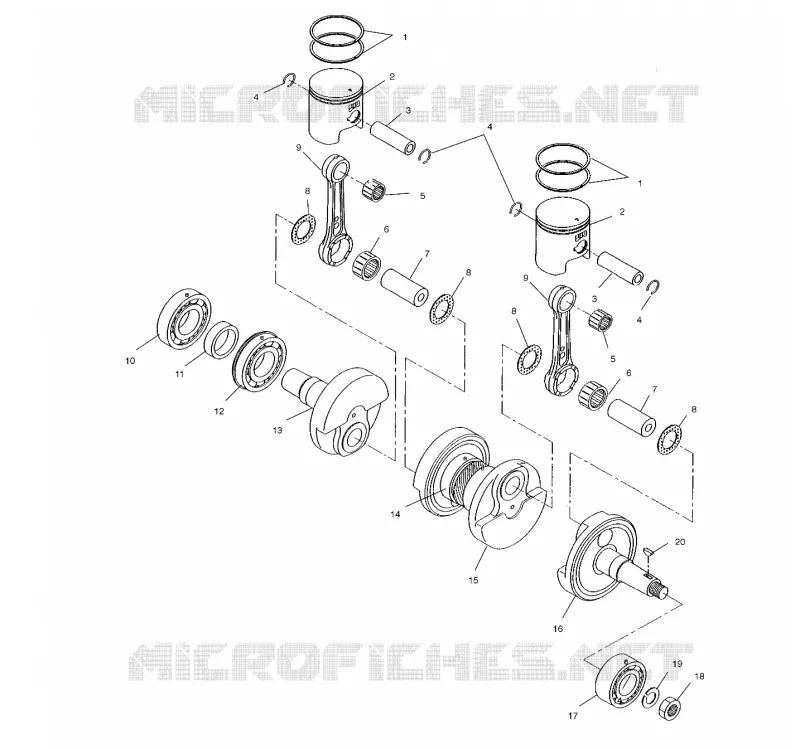

Find the detailed PISTON CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
