Engine displacement
800
2
Year
2008
3
Trim
RZR 800 EFI - R08VH76AD/AG
4
Parts Catalog
ENGINE/TRANSMISSION MOUNTING
5
Parts Diagram
Parts Catalog
ELECTRICAL (BUILT 8/13/07 AND BEFORE)
by
GEARCASE, DIFFERENTIAL MOUNTING
ENGINE/TRANSMISSION MOUNTING
1
1
2
3
3
3
4
4
5
5
6
6
6
7
8
8
9
10
10
11
12
13
14
13
16
17
18
19
20
21
22
23
1
FLANGED SCREW
7515304
9999999
Not Available
2
ENGINE AND TRANSMISSION MOUNTING BRACKET
5250848
9999999
Not Available
3
SCREW
7515415
9999999
Not Available
4
SCREW
7515398
9999999
Not Available
5
REAR DIFFERENTIAL MOUNT
1332450
9999999
Not Available
6
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
7
BOLT-5/16-18X1-1/2 HXFLNG;P-30
7518425
$7,34 Unit Price incl. VAT
8
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
9
WELD-TRANNY MNT FRTYZ
1015537
9999999
Not Available
10
ISOLATOR BASE WELD
1015672
9999999
Not Available
11
ENGINE MOUNT WELD
1015673
9999999
Not Available
12
SCR-5/16-18X3/4 FLGHX 65 LK-Y
7518181
9999999
Not Available
13
BOLT-3/8-16X7/8 HEX FLANGE GR5
7518364
$3,14 Unit Price incl. VAT
14
WELD-REAR MNT BRKT;MATTE BLK
1015623458
Not Available
15
BOLT-3/8-16X7/8 HEX FLANGE GR5
7518364
$3,14 Unit Price incl. VAT
16
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
17
FLANGED NUT LOCK(10)
7542459
$3,14 Unit Price incl. VAT
18
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
19
SCREW
7517696
$10,49 Unit Price incl. VAT
20
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
21
FUEL LINE; 1/4 ID
84500031525
Not Available
22
CRANKCASE MOUNT STUD; LOWER
7518657
$41,99 Unit Price incl. VAT
23
KIT-SHORT BLOCK 800 EFI
2203305
9990000
Not Available

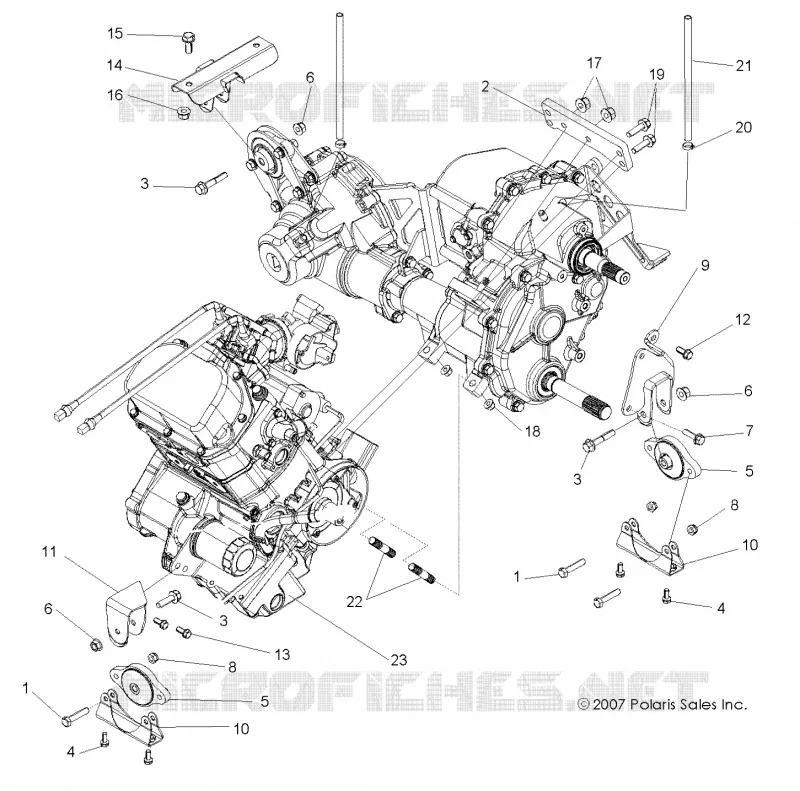

Find the detailed ENGINE/TRANSMISSION MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
