THROTTLE BODY AND INJECTOR
5
Parts Diagram
Parts Catalog
ENGINE, STATOR AND COVER
by
THROTTLE PEDAL
THROTTLE BODY AND INJECTOR
1
2
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
1
1
2
3
4
5
6
7
8
9
10
1
DUAL THROTTLE BODY ASSEMBLY
1204552
9999999
Not Available
2
FUEL INJECTOR
2521068
$188,99 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
FLOWTHROUGH FUEL RAIL ASSEMBLY
3131715
$629,99 Unit Price incl. VAT
5
BOLT-FUEL RAIL
3131716
$9,44 Unit Price incl. VAT
6
INJECTOR CLIP
3131717
$20,99 Unit Price incl. VAT
7
ADAPTER-THROTTLE BODY
1204490
3023789
$83,99 Unit Price incl. VAT
8
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
9
SCREW
7519297
$7,34 Unit Price incl. VAT
10
SCREW
3130592
3130924
$3,14 Unit Price incl. VAT
11
COVER-THROTTLE CAM
3131734
$62,99 Unit Price incl. VAT
12
O-RING-THROTTLE CAM COVER
3131735
9999999
Not Available
13
ASM-INJECTOR FUEL BLACK MAG
1204366
$104,99 Unit Price incl. VAT
14
SM-INJECTOR FUEL GRAY PTO
1204367
$73,49 Unit Price incl. VAT
15
HOSE-IAC .500 ID FORMED
5813644
9999999
Not Available
16
IAC HOSE; SHORT
5813672
$12,59 Unit Price incl. VAT
17
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
18
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
19
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
20
CHECK VALVE
7052038
$20,99 Unit Price incl. VAT
21
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
22
3/16 EPDM HOSE; 153 CM
8450113153
Not Available

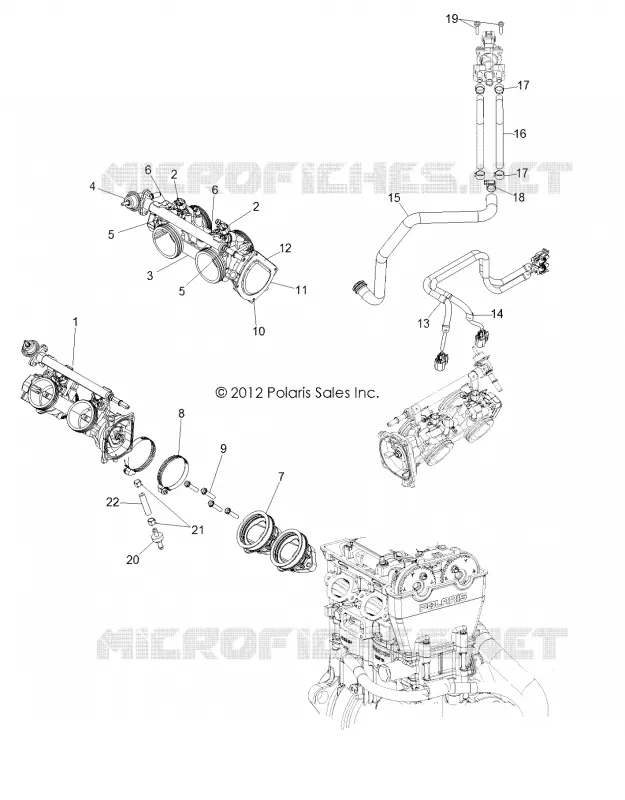

Find the detailed THROTTLE BODY AND INJECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
