COOLING SYSTEM for POLARIS SPORTSMAN 500 EFI - A07MH50AB/AL/AQ/AX/AY/AZ/MN50AF/AN/AT/AY from 2007

BRAKE REAR CALIPER

COOLING SYSTEM

1

HEX HEAD BOLT; 6 MM

7517975

9999999

Not Available

2

FAN AND MOTOR ASSEMBLY; 11 IN

2410383

$303,96 Unit Price incl. VAT

3

CAP-PRESSURE 13 PSI

1240044

1240508

$89,24 Unit Price incl. VAT

4

FILLER NECK

5412402

$52,49 Unit Price incl. VAT

5

SCREW

7512084

$2,09 Unit Price incl. VAT

6

CLAMP-ROTO CLIP

7080826

9999999

Not Available

7

HOSE-FILLER NECK

5412405

9999999

Not Available

8

CLAMP HOSE 1.25 WORM DRIVE

7080696

$10,49 Unit Price incl. VAT

9

HOSE-LOWER ENGINE

5412404

9999999

Not Available

10

PLASTIC HOSEGUARD 18

5521550

9999999

Not Available

11

CLAMP HOSE 1.375 VNL ECOATED

7080908

9999999

Not Available

12

SCREW

7517386

$2,09 Unit Price incl. VAT

13

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

14

CABLE TIE; 11 IN

7080492

$5,24 Unit Price incl. VAT

15

RADIATOR BRACKET; LOWER; GS BLK

5247047067

Not Available

16

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

17

SCREW

7515179

$4,19 Unit Price incl. VAT

18

RADIATOR-CROSSFLOW

1240152

1241477

$834,74 Unit Price incl. VAT

18

RADIATOR-CROSSFLOW

1240305

1241477

$834,74 Unit Price incl. VAT

19

GROMMET AND INSERT ASSEMBLY

5411975

9999999

Not Available

20

FUEL LINE; 1/4 ID

84500031525

Not Available

21

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

22

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

23

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

24

GASKET

5810279

$4,19 Unit Price incl. VAT

25

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

26

HOSE-UPPER ENGINE

5412403

9999999

Not Available

27

RADIATOR BRACKET; UPPER; BLACK

5246754067

Not Available

28

TUBING-CONVOLUTED 1X4.00

5521602

9999999

Not Available

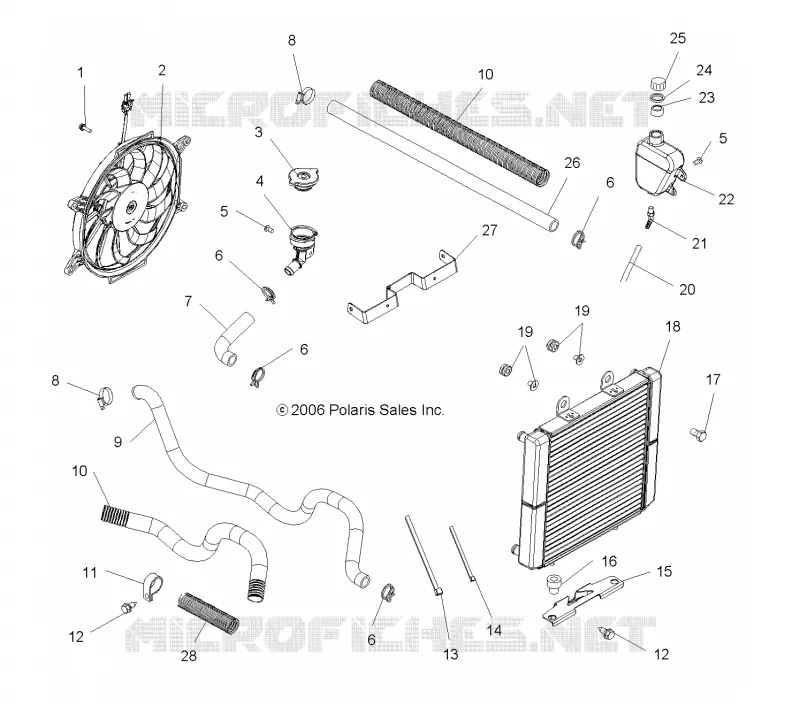

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
