1
Engine displacement
850
2
Year
2019
3
Trim
850 AXYS PRO-RMK 163 / SC SELECT
4
Parts Catalog
BRAKES, BRAKE SYSTEM
5
Parts Diagram
Parts Catalog
CHASSIS, BULKHEAD ASM.
by
DRIVE TRAIN, CLUTCH, PRIMARY
BRAKES, BRAKE SYSTEM
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
18
19
19
20
21
1
K-M/C ASM 1/2 BUR 98-35320
2207435
$472,49 Unit Price incl. VAT
2
KIT-M10X1.25 BANJO 98-20930
2203392
$36,74 Unit Price incl. VAT
3
CRUSH WASHER KIT; COPPER
2203393
$47,24 Unit Price incl. VAT
4
MASTER CYLINDER COVER
2203055
$141,74 Unit Price incl. VAT
5
KIT-RES COVER SCR 98-16758
2202796
$19,94 Unit Price incl. VAT
6
KIT-CLAMP SCR 98-16760
2202798
$41,99 Unit Price incl. VAT
7
KIT-CLAMP HB 11/16 98-19608
2203093
$94,49 Unit Price incl. VAT
8
K-PSTN BUR ASM 1/2 98-35154
2207436
$383,24 Unit Price incl. VAT
9
BRAKE LEVER WITH PARK KIT
2202791
$83,99 Unit Price incl. VAT
10
PARK LEVER KIT
2203054
$68,24 Unit Price incl. VAT
11
KIT-PVT PIN&SNAP RNG 98-16761
2202799
$41,99 Unit Price incl. VAT
12
STOPLIGHT SWITCH KIT
2207632
$104,99 Unit Price incl. VAT
13
K-BRKLN 810MM 45X0D 98-35704
2207633
9999999
Not Available
14
KIT-HSG PSTN SLS BLDR 98-31831
2205919
$388,49 Unit Price incl. VAT
14
BRAKE CALIPER KIT; THIN
2206471
$524,99 Unit Price incl. VAT
15
KIT-SCREW BLEEDER HB 98-31836
2205923
$10,49 Unit Price incl. VAT
16
BRAKE PADS
2206462
$167,99 Unit Price incl. VAT
17
PISTON AND SEALS KIT
2205921
$104,99 Unit Price incl. VAT
18
KIT-PISTON SEALS 98-31833
2205922
$68,24 Unit Price incl. VAT
19
BRAKE DISC
2204712
1914210
$383,24 Unit Price incl. VAT
19
SERVICE DISC KIT
2205373
$440,99 Unit Price incl. VAT
20
HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM
7519243
$7,34 Unit Price incl. VAT
21
WASHER-.344X.688X.063 FL-ZOD
7556524
$1,56 Unit Price incl. VAT

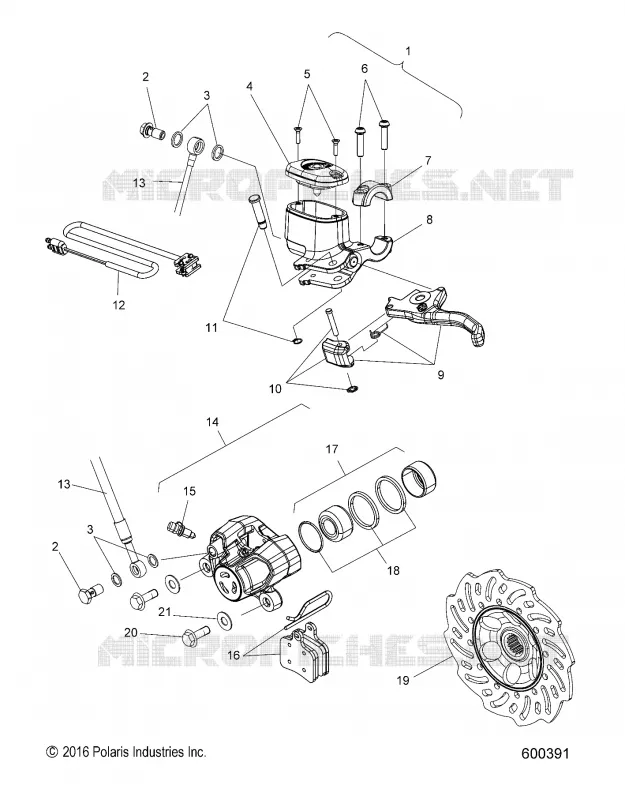

Find the detailed BRAKES, BRAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
