Parts Catalog
DRIVE SHAFT
5
Parts Diagram
Parts Catalog
GEARCASE
by
DRIVE CLUTCH
DRIVE SHAFT
1
RING RETAINING
7713401
7710436
$9,44 Unit Price incl. VAT
2
BUSHING MACHINED
7555922
$11,54 Unit Price incl. VAT
3
DISC BRAKE ASM.
1910217
9999999
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BOLT
7517291
$23,09 Unit Price incl. VAT
6
O-RING
5410630
9999999
Not Available
7
SCREW
7517446
$15,74 Unit Price incl. VAT
8
COUPLER ASM LONG 19 TOOTH W/ GREASE
1332219
$220,49 Unit Price incl. VAT
8
GREASE ZERK
7080437
9999999
Not Available
9
JACKSHIFT ASSEMBLY; LONG KEY
1332256
9999999
Not Available
10
BEARING
3514525
$54,59 Unit Price incl. VAT
11
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
12
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
13
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
14
GASKET JACKSHAFT 2-BOLT
5830135
$5,24 Unit Price incl. VAT
15
FLANGETTE; GREASABLE
5222647
$47,24 Unit Price incl. VAT
16
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
17
BUSHING
7556509
$3,14 Unit Price incl. VAT
18
KEY-1/4 X 3/16 X 2.25
7721132
9999999
Not Available
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
SPACER INLET SHAFT
5431482
9999999
Not Available
21
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
22
WASHER; SPRING
7571626
9999999
Not Available
23
BOLT
7515502
9999999
Not Available
24
DRIVE BELT
3211070
$147,51 Unit Price incl. VAT
25
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
26
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
27
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
28
OFFSET FLANGETTE WITH HOLE
5243529
9999999
Not Available
29
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
30
FLANGETTE W/ SCREWS ASSEMBLY
1012945
9999999
Not Available
31
ASM-DRIVESHAFT
1590338
1590450
$939,74 Unit Price incl. VAT
32
COUPLER W/ GREASE ZERK ASM 19 TOOTH
1332260
$325,49 Unit Price incl. VAT
32
GREASE ZERK
7080437
9999999
Not Available
33
BOLT
7517292
$36,74 Unit Price incl. VAT
34
BOLT
7515474
9999999
Not Available
35
SHIM
5211065
9999999
Not Available
35
SPACER-.063 (10)
5210759
$6,29 Unit Price incl. VAT
35
SPACER-.080 (10)
5210760
9999999
Not Available
35
SPACER; .020
5210764
9999999
Not Available
36
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT

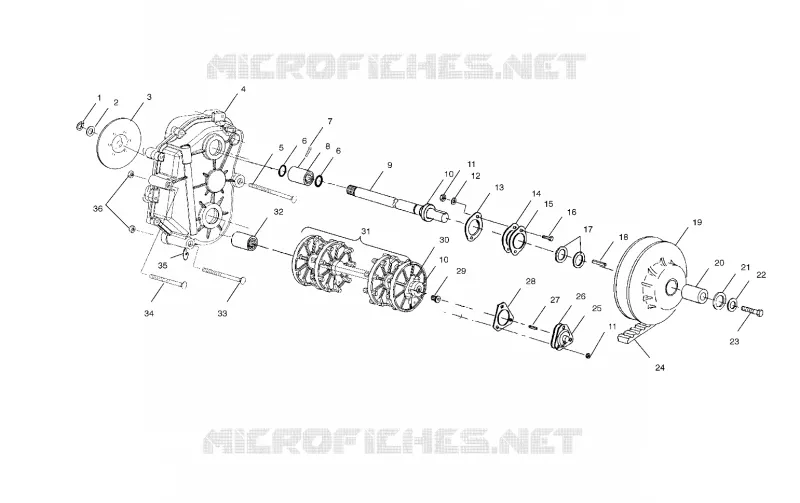

Find the detailed DRIVE SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
