1
Engine displacement
800
2
Year
2012
3
Trim
RZR 4 800 EFI - R12XE76AD/7EAB/EAO
4
Parts Catalog
BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
SIDE NETS
by
BARKE CALIPER MOUNTING
BRAKE LINES AND MASTER CYLINDER
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
1
BRAKE LINE; REAR; LEFT
1911448
$173,24 Unit Price incl. VAT
2
BRAKE LINE; REAR; RIGHT
1911449
$173,24 Unit Price incl. VAT
3
MASTER TO REAR BRAKE LINE
1911553
9999999
Not Available
4
ASM-TANDEM MASTER CYL;+3/8 PR
1911699
1911982
$246,74 Unit Price incl. VAT
4
TANDEM MASTER CYLINDER CAP KIT; 3/4 IN
2203455
$89,24 Unit Price incl. VAT
5
BRAKE LINE; LEFT; FRONT
1911610
9999999
Not Available
6
BRAKE LINE; FRONT; RIGHT
1911611
9999999
Not Available
7
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
8
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
9
BANJO DOUBLE BOLT; 10 MM X 1.25 MM
1911194
$41,99 Unit Price incl. VAT
10
SEAL
5413212
9999999
Not Available
11
BRAKE CROSS FITTING
7052316
$73,49 Unit Price incl. VAT
12
PRESSURE SWITCH; BRAKE W/ SEALANT
4012866
9999999
Not Available
13
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
14
BRAKE LINE RETAINER; 1 IN
5439192
$3,14 Unit Price incl. VAT
15
POP RIVET
7621323
$2,09 Unit Price incl. VAT
16
SCREW
7512025
$9,44 Unit Price incl. VAT
17
CLIP
7670102
$4,19 Unit Price incl. VAT
18
SCREW
7512084
$2,09 Unit Price incl. VAT

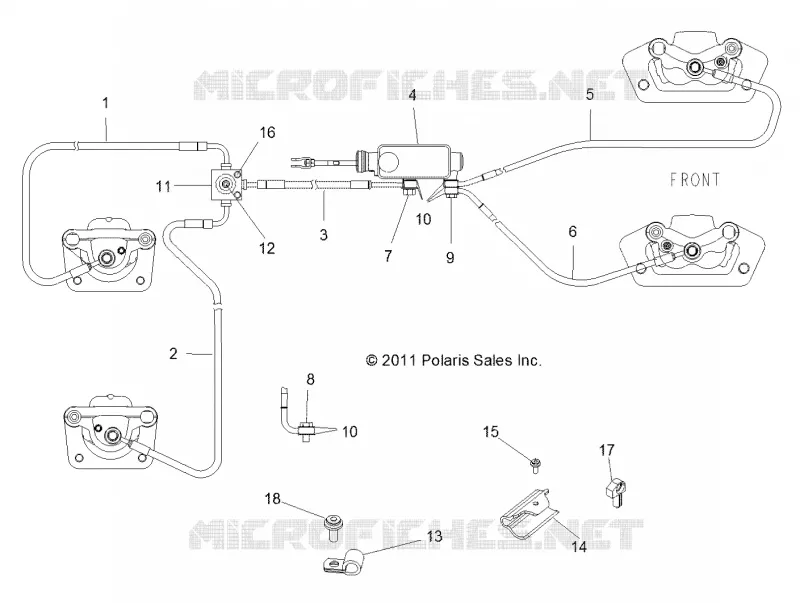

Find the detailed BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
