Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
NOSEPAN RXL 0940768 and RXL TOURING 0940869 (4925062506005A)
by
STEERING ASSEMBLY RXL 0940768 AND RXL TOURING 0940869 (4925062506014A)
STEERING
1
GRIP H BAR BLACK
5410272067
Not Available
2
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
3
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
4
THROTTLE LEVER
5430652
9999999
Not Available
5
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
6
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
7
CLIP
7080278
9999999
Not Available
8
BOLT
7512254
9999999
Not Available
9
H BAR COVER ASM;W/DECAL
2690080
9999999
Not Available
10
PAD HANDLEBAR
5810448
Not Available
11
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
12
HANDLEBAR BLK 1#RAISED
5224514067
Not Available
13
DIMMER SWITCH
4110107
9999999
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
CAPLUG
7080467
9999999
Not Available
16
HEATER GRIP ASSEMBLY; HI/LO
2460311
$115,49 Unit Price incl. VAT
17
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
18
BOLT ;
7512239
7517377
$9,44 Unit Price incl. VAT
19
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
20
POST STRG. BLK.
1823144067
Not Available
21
SCREW
7511848
$7,34 Unit Price incl. VAT
22
SCREW
7511858
$7,34 Unit Price incl. VAT
23
PLATE BLK WIREHOLDER
5240256067
Not Available
24
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
25
WASHER
7555730
$7,34 Unit Price incl. VAT
26
SCREW SET
7512465
$7,34 Unit Price incl. VAT
27
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
28
SWITCH AUX.SHUT-OFF
4110109
Not Available
29
LEVER ASM SHIFT (Incl. 27-40) (Touring)
1341067
Not Available
30
BOLT SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
31
CLAMP SHIFT LEVER (Touring)
5130766
Not Available
32
PAD
5810317
9999999
Not Available
33
MOUNT LEVER
5130765
9999999
Not Available
34
CABLE; SHIFT
7080428
9999999
Not Available
35
LEVER; SHIFT
5130764
9999999
Not Available
36
BUSHINGCABLE END
5333059
9999999
Not Available
37
WASHER PLASTIC
7555794
9999999
Not Available
38
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
39
SCREW
7512021
9999999
Not Available
40
SCREW
7512030
9999999
Not Available
41
WASHER
7555799
7558201
$9,44 Unit Price incl. VAT
42
BUSHING SHIFT LEVER
5333060
9999999
Not Available
43
WASHER PLASTIC
5431224
9999999
Not Available

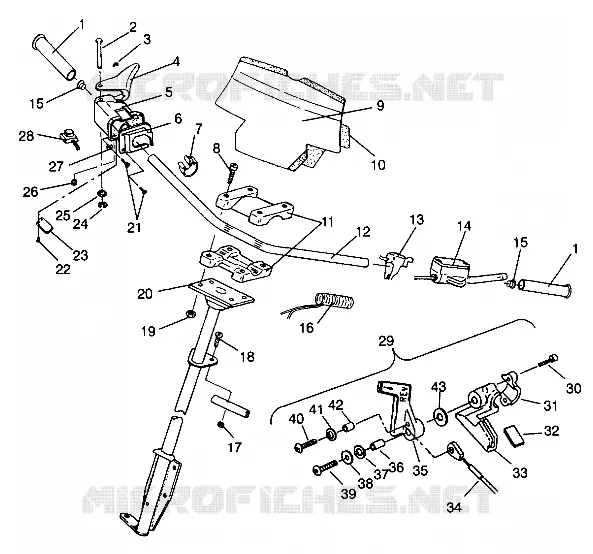

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
