1
Engine displacement
800
2
Year
2020
3
Trim
800 AXYS PRO RMK 174 3"
4
Parts Catalog
SUSPENSION, FRONT SHOCK TRACK (CLEAR COIL OVER)
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
by
DECALS, SNOW CHECK, GHOST GRAY SIDE PANEL W/ORANGE ACCENT
SUSPENSION, FRONT SHOCK TRACK (CLEAR COIL OVER)
12
13
13
14
15
16
17
18
19
20
21
22
23
24
-
SHOCK W/E COIL-OVER CLEAR
7044769
9999999
Not Available
1
BODY FT 6.81 CLR 1400131
1800722
$209,99 Unit Price incl. VAT
2
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
3
ASM-CHARGE PORT 0800213
1800805
$73,49 Unit Price incl. VAT
3
NEEDLE VALVE
1800329
$62,99 Unit Price incl. VAT
4
SCREW-BUTTON HEAD 8/32(10)
1800109
$6,29 Unit Price incl. VAT
5
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
6
ADJUSTER-SPRING BLK 1500131-AB
1800899
$73,49 Unit Price incl. VAT
7
RETAINER SPRING BLK 200343-AB
1800764
$89,24 Unit Price incl. VAT
8
ASM-SEAL HEAD BLK 1100157-AB
1800898
$204,74 Unit Price incl. VAT
9
SHAFT .50 X 5.935L
1800725
$173,24 Unit Price incl. VAT
10
LOOP-SHFT SHORT BLK 1000161-AB
1800903
$209,99 Unit Price incl. VAT
11
BUSHING
1800406
$9,44 Unit Price incl. VAT
12
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
13
SPRG-COMP.306X8.75 150# BLK
7043678458
Not Available
14
JAM NUT
1800465
$99,74 Unit Price incl. VAT
15
THIN WEAR BAND
1800543
$73,49 Unit Price incl. VAT
16
ASM-PISTON IFP 1600054
1800902
$125,99 Unit Price incl. VAT
17
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
18
PISTON CONVEX THIN (1100126)
1800542
$246,74 Unit Price incl. VAT
19
SHAFT; BUSHING
1800544
$40,94 Unit Price incl. VAT
20
O-RING
1800095
$2,09 Unit Price incl. VAT
21
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
22
SEAL; U-CUP
1800294
$47,24 Unit Price incl. VAT
23
WIPER SEAL
1800295
$26,24 Unit Price incl. VAT
24
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT

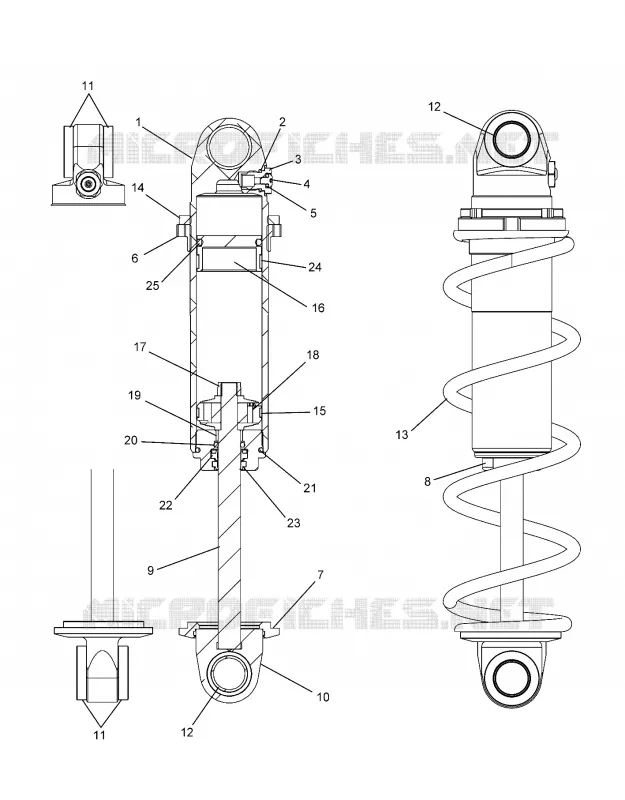

Find the detailed SUSPENSION, FRONT SHOCK TRACK (CLEAR COIL OVER) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
