Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
BUMPER / RACKS MOUNTING
by
HEADLIGHT ASSEMBLY
ENGINE MOUNTING
1
ENG.(S.B.)EH42PL-01 [No Longer Available]
3085023
Not Available
2
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
3
WASHER
7555801
$7,34 Unit Price incl. VAT
4
CABLE GROUND/ENG.
4010067
9999999
Not Available
5
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
6
MOUNT ENG.TOP BLK.
5240328067
Not Available
7
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
8
BOLT
7512315
$9,44 Unit Price incl. VAT
9
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
10
FUEL LINE; 600 CM
8450040600
Not Available
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
Gasket
_______
Not Available
14
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
15
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
16
MOUNT RUBBER REAR
3110045
9999999
Not Available
17
SCREW
7512490
$7,34 Unit Price incl. VAT
18
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
19
MT. SEAL RETAINER BLK.
5211431067
Not Available
20
NUT LOCK
7542403
9999999
Not Available
21
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
22
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
23
BUSHING
5430261
$13,64 Unit Price incl. VAT
24
WASHER
5210748
$7,34 Unit Price incl. VAT
25
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
26
BOLT
7512566
9999999
Not Available
27
Gasket
_______
Not Available
28
Gasket
_______
Not Available
29
BRKT RETAINER SEAL BLK.
5240409067
Not Available
30
MOUNT RUBBER FRONT
3110046
9999999
Not Available
31
CLAMP WORM DRIVE
7080547
9999999
Not Available
32
HOSE; WATER
845005063
Not Available
33
LOCK WASHER
3080530
9999999
Not Available
34
NUT
3080285
9999999
Not Available
35
MANIFOLD BLK.
1260628029
Not Available
36
GASKET; EXH.
3084689
9999999
Not Available

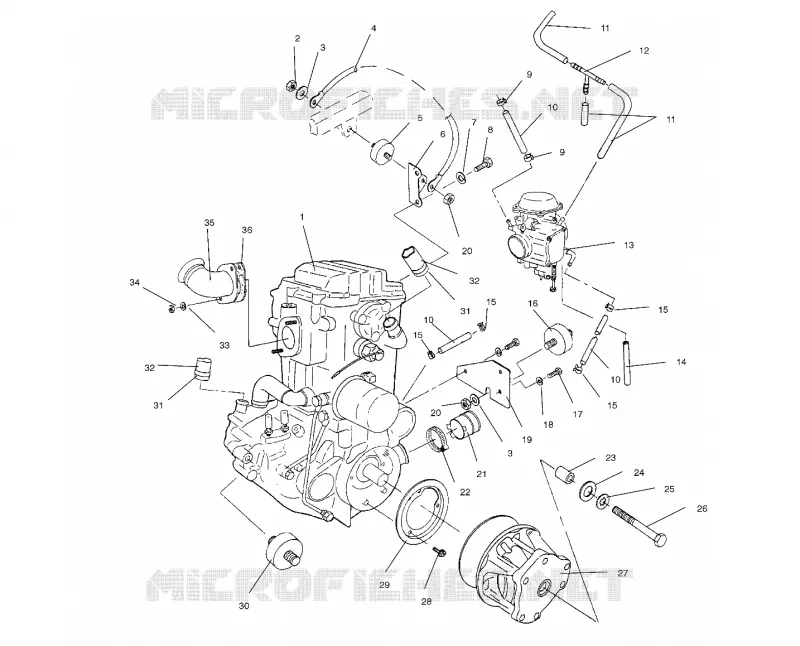

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
