ENGINE, AIR INTAKE SYSTEM for POLARIS SPORTSMAN 450 HO from 2016

ENGINE, AIR INTAKE SYSTEM

1

INTAKE GASKET

5411422

$10,49 Unit Price incl. VAT

2

AIR INLET DUCT

5450386

9999999

Not Available

3

AIR BOX COVER

5450388

5459622

$83,99 Unit Price incl. VAT

4

AIRBOX COVER SEAL

5813949

$52,49 Unit Price incl. VAT

5

SCREW

7517317

$6,29 Unit Price incl. VAT

6

CLIP

5242044

$17,84 Unit Price incl. VAT

7

COMPARTMENT PLUG

5412981

5418084

$6,29 Unit Price incl. VAT

8

ENGINE BOOT INTAKE

5415034

$167,99 Unit Price incl. VAT

9

AIR INTAKE BOX; SPORTSMAN

5450387

$257,24 Unit Price incl. VAT

10

FOIL-AIRBOX

5813982

9999999

Not Available

11

TIE CABLE; 14 IN

7080761

$5,24 Unit Price incl. VAT

12

HOSE-BREATHER FORMED 570

5415276

$68,24 Unit Price incl. VAT

13

SLEEVE-CARB INNER

5433847

$27,29 Unit Price incl. VAT

14

PRECLEANER FILTER SLEEVE

5811633

$19,20 Unit Price incl. VAT

15

VALVE BREATHER WITH .53 IN BARB ID

7052577

$52,49 Unit Price incl. VAT

16

AIR INTAKE FILTER

7082101

7083107

$51,23 Unit Price incl. VAT

17

CLAMP-HOSE 2.75 -SS

7080446

$20,99 Unit Price incl. VAT

18

CLAMP-HOSE 13/16 -1 1/2

7081174

$13,64 Unit Price incl. VAT

19

SCREW

7517685

$3,14 Unit Price incl. VAT

20

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

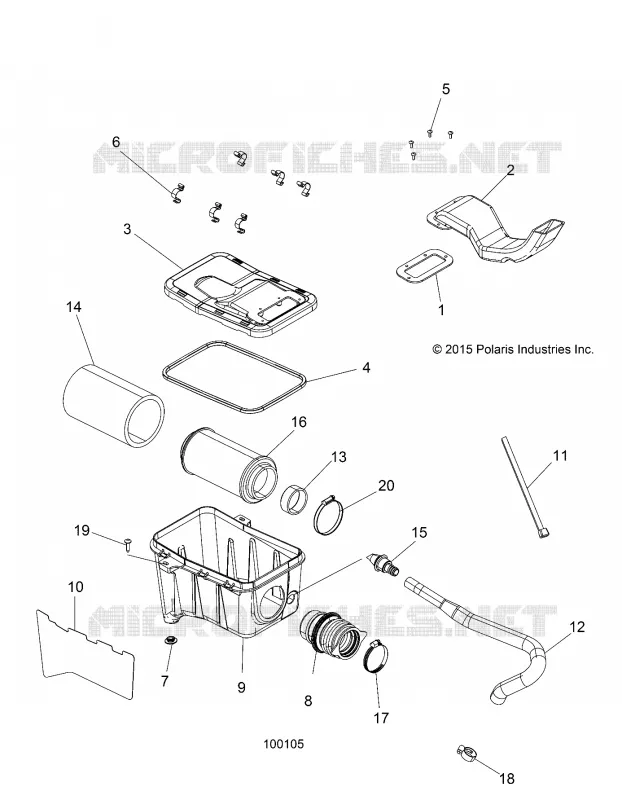

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
