Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
HOOD AND FRONT BODY WORK
by
DRIVE TRAIN, FRONT GEARCASE
DRIVE TRAIN, CLUTCH COVER AND DUCTING
17
18
19
20
21
1
OUTER CLUTCH COVER ASSEMBLY
2634179
$346,49 Unit Price incl. VAT
2
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
3
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
4
ASM-COVER CLUTCH INNER
2635395
9999999
Not Available
4
ASM-COVER CLUTCH INNER
2636243
9999999
Not Available
5
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
6
HOSE-INTAKE CLUTCH
5414892
9999999
Not Available
7
DUCT-CLUTCH AIR IN
5452670
9999999
Not Available
8
INTAKE CLUTCH BOX; LEFT
5450727
$141,74 Unit Price incl. VAT
9
CLUTCH COVER SEAL OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
10
DUCT-CLUTCH AIR IN
5451299
9999999
Not Available
11
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT
12
PLASTIC DART CLIP; NYLON
7670088
$3,14 Unit Price incl. VAT
13
SCR-#14X1-1/4 HI/LO/TAPER-Y
7519849
$6,29 Unit Price incl. VAT
14
BOLT/WASHER ASSMEBLY; 20 MM
7519278
$9,44 Unit Price incl. VAT
15
SCR-TFHFL-M6X1.0X20 ZOD
7519279
$19,94 Unit Price incl. VAT
16
WASHER
7555748
$9,44 Unit Price incl. VAT
17
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
18
FILTER INTAKE; FOAM
5814026
$26,24 Unit Price incl. VAT
19
ADHESIVE FOAM SEAL
5814033
$20,99 Unit Price incl. VAT
20
SCREW
7512098
$3,14 Unit Price incl. VAT
21
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT

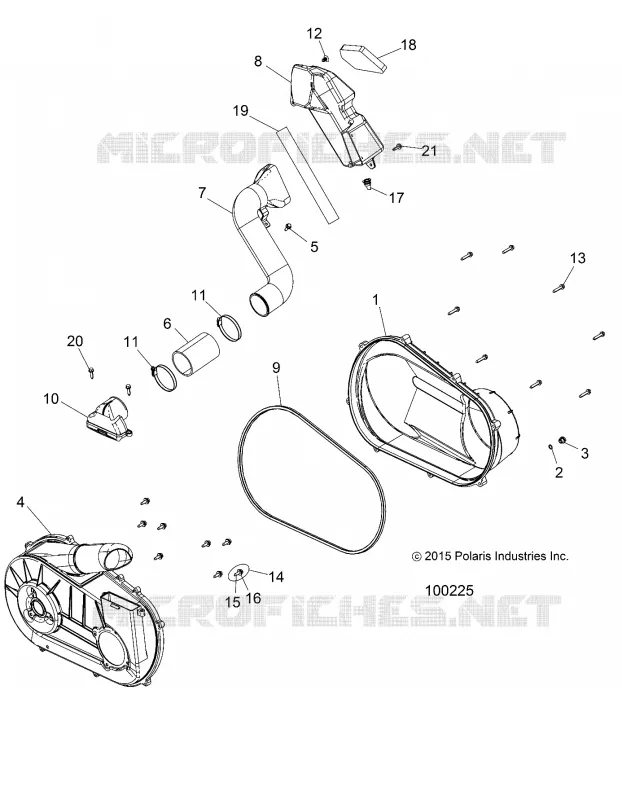

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
