Engine displacement
550
2
Year
2010
3
Trim
SPORTSMAN XP 550 - A10ZN55AL/AQ/AX
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
FRONT BUMPER AND MOUNTING
by
DRIVE TRAIN, DRIVE REAR SHAFT (BUILT 11/17/09 AND AFTER)
DRIVE TRAIN, MAIN GEARCASE
-
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
24
25
26
27
-
ASM-DRIVE SYSTEM;TRANS 550
1332786
9999999
Not Available
1
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
4
SCREW; TORX PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
5
SCREW; HEX
3234634
$25,19 Unit Price incl. VAT
6
HEX NUT; 18 MM X 1.5 MM
3234788
$41,99 Unit Price incl. VAT
7
WASHER
3234638
9999999
Not Available
8
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
9
COMPRESSION SPRING
3234790
$47,24 Unit Price incl. VAT
10
GTO GEARCASE COVER
3234689
$692,99 Unit Price incl. VAT
11
GEARCASE; MAIN
3234690
9999999
Not Available
12
BELLHOUSING
3234691
9999999
Not Available
13
DETENT BULLET
3234695
$68,24 Unit Price incl. VAT
14
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
15
DETENT PLUG
3234715
$68,24 Unit Price incl. VAT
16
PIPE; KNOCK
3234765
$26,24 Unit Price incl. VAT
17
DEFLECTOR; OIL
3234725
$26,24 Unit Price incl. VAT
18
O-RING
3234302
$13,64 Unit Price incl. VAT
19
O-RING
3234728
9999999
Not Available
20
TRIPLE LIP SEAL
3234739
$57,74 Unit Price incl. VAT
21
O-RING
3234729
$25,19 Unit Price incl. VAT
22
VITON TRIPLE LIP SEAL
3234892
$68,24 Unit Price incl. VAT
23
TRIPLE LIP SEAL
3234769
$78,74 Unit Price incl. VAT
24
SENSOR-SPEED TRANS
4012167
4082135
$204,74 Unit Price incl. VAT
25
COUPLER-TRANS 15T MACH
5136575
9999999
Not Available
26
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
27
FUEL LINE; 1/4 ID
84500031525
Not Available

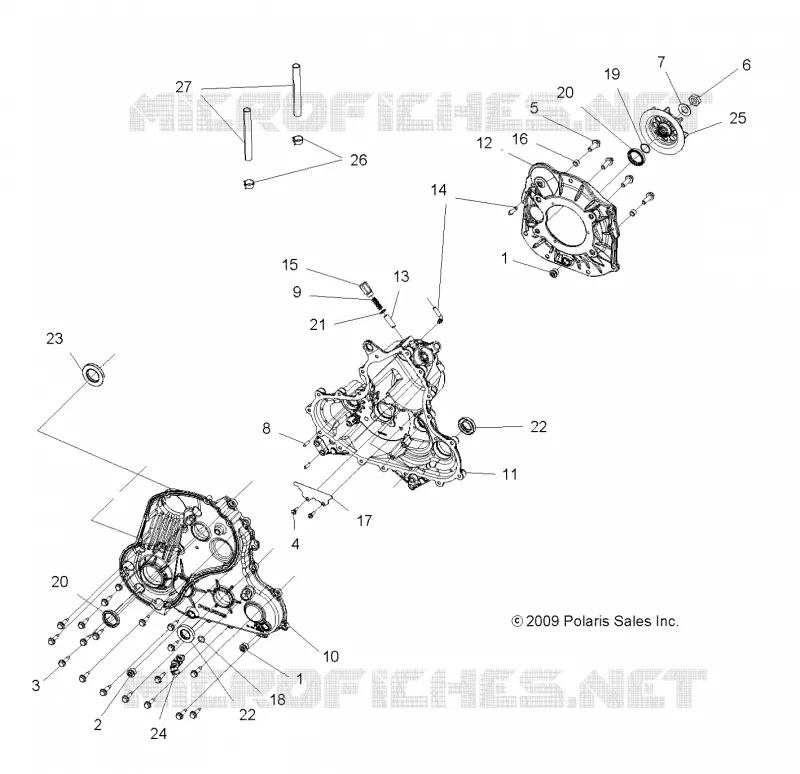

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
