ELECTRICAL, WIRE HARNESS

1

HARNESS-CHASSIS FP TRC

2415433

Not Available

2

FUSE PARK 20 AMP (10)

2434017

4012811

$15,74 Unit Price incl. VAT

3

DECAL-WARN PASS/TIRE BCT

7300639

9999999

Not Available

4

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

5

CONNECTOR-7-WAY EURO TRAILER

4012558

Not Available

6

DIAGNOSTIC COVER WITH CLIP

4012170

4083556

$15,00 Unit Price incl. VAT

7

GROMMET-USB 3 MM 22 MM DIA

5415308

$7,34 Unit Price incl. VAT

8

SEALED CIRCUT BREAKER; 20 AMP

2410881

$141,74 Unit Price incl. VAT

9

RELAY-SPST SERIES 303 SEALED

4011283

4016819

$68,24 Unit Price incl. VAT

10

65 MM GROMMET WITH FLANGE; BLACK

5814560

$24,14 Unit Price incl. VAT

11

FUSE 10 AMP

2434016

$10,49 Unit Price incl. VAT

12

MAIN FUSE; 30 AMP

2434015

$15,74 Unit Price incl. VAT

13

FUSE-MINI BLADE;15 AMP

2410280

4010859

$15,74 Unit Price incl. VAT

14

COVER-FUSEHOLDER

4012260

$19,94 Unit Price incl. VAT

15

FUSE 5 AMP

4011652

9999999

Not Available

16

MINI BLADE FUSE; 7.5

4011068

9999999

Not Available

17

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

18

DART CLIP; PLASTIC

7670090

$2,09 Unit Price incl. VAT

19

VOLTAGE REGULATOR

4016868

$246,74 Unit Price incl. VAT

20

SCR-TFHFL-M6X1.0X25 ZY3

7520715

$7,34 Unit Price incl. VAT

21

COIL-EFI

4010425

2876049

$451,49 Unit Price incl. VAT

22

BRKT-COIL MOUNT

5263891

$19,94 Unit Price incl. VAT

23

COIL MOUNT SPACER

5436577

$7,34 Unit Price incl. VAT

24

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

25

GROMMET-HOOD LINER;SPLIT

5417082

$13,64 Unit Price incl. VAT

26

SCR-M6X1.0X40 HX/SOC/CP-B

7518780

$7,34 Unit Price incl. VAT

27

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

28

COVER TB JCASE

5454284

$62,99 Unit Price incl. VAT

28

PLUG ACCY TB

5454283

$83,99 Unit Price incl. VAT

28

BLOCK-TERMINAL 6 POS

4016007

$68,24 Unit Price incl. VAT

28

CARTRIDGE FUSE

4013891

$68,24 Unit Price incl. VAT

29

MOUNT BRACKET; REG

5263643

$73,49 Unit Price incl. VAT

30

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

31

NO START ELECTRIC CONTROL MODULE (ECM)

4014125

$1 123,49 Unit Price incl. VAT

32

SCR-#10X1/2-HI/LO-PN-T25 TRX-M

7519091

$6,29 Unit Price incl. VAT

33

HARNESS BOX RANGER EU

2415135

9999999

Not Available

33

HARNESS BOX RANGER EU

2413922

Not Available

34

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$7,34 Unit Price incl. VAT

35

BRKT-ROUTING BLK

5268050329

Not Available

35

BRKT-ROUTING BLK

5264313329

Not Available

36

BRKT-HARNESS ROUTINGBLK

5264314329

Not Available

37

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

38

JUMPER-BRAKE PRESSURE SWITCH

4018636

Not Available

39

CABLE TIE; 11 IN

7080492

$5,24 Unit Price incl. VAT

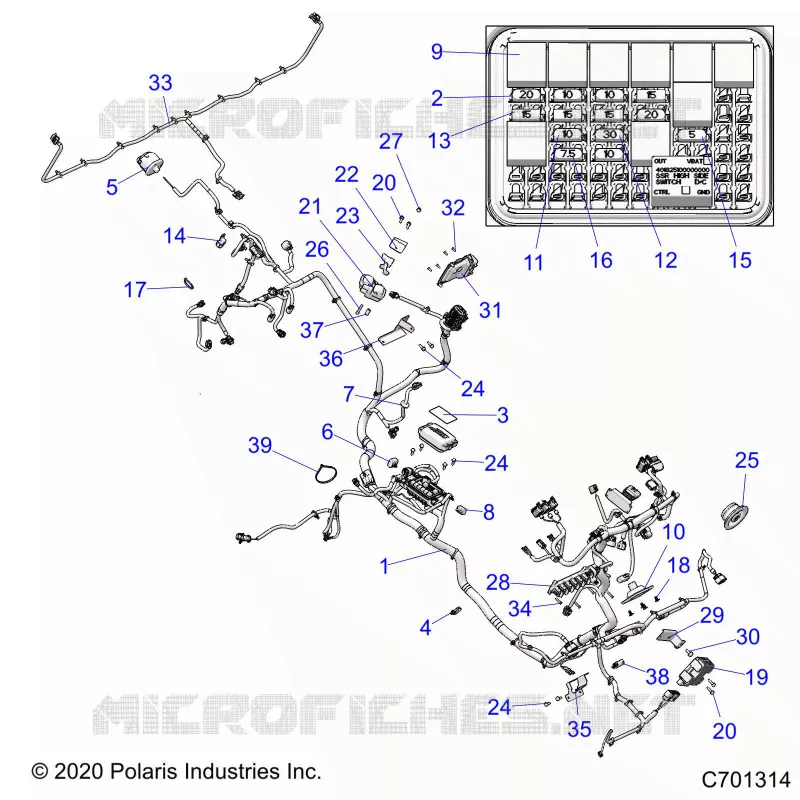

Find the detailed ELECTRICAL, WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RANGER XP 1000 EPS MD

FRONT BUMPER

ACCESSORY

BODYWORK

BODYWORK

TAILGATE

DASHBOARD

DECALSS

FLOOR AND ROCKER

FUEL TANK

HOOD AND FRONT FACIA

NETS

REAR BODYWORK CLOSEOFF, AND FENDERS

SEAT ASM. AND SLIDER

SEAT BELT AND MOUNTING

FRONT BRAKE CALIPER

PARKING BRAKE BRAKE

BRAKES, PEDAL

BRAKES, REAR CALIPER

CHASSIS, CAB FRAME

CHASSIS, MAIN FRAME AND SKID PLATES

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR PROP SHAFT

DRIVE TRAIN, SECONDARY CLUTCH

ELECTRICAL, BATTERY

ELECTRICAL, COMPONENTS, AND LICENSE PLATE

ELECTRICAL, DASH INSTUMENTS

ELECTRICAL, HEADLIGHTS AND TAILLIGHTS

ELECTRICAL, WIRE HARNESS

ENGINE, AIR INTAKE MANIFOLD

ENGINE, AIR INTAKE SYSTEM

CAM CHAIN AND TENSIONER

ENGINE, COOLING SYSTEM

ENGINE, CRANKCASE AND CRANKSHAFT

CYLINDER AND PISTON

ENGINE, CYLINDER HEAD AND VALVES

ENGINE, DIPSTICK & OIL FILTER

ENGINE, EXHAUST SYSTEM

ENGINE, MOUNTING

OIL PUMP

STARTER

ENGINE, STATOR AND FLYWHEEL

ENGINE, THROTTLE BODY AND VALVE COVER

ENGINE, THROTTLE PEDAL

ENGINE, WATERPUMP AND BYPASS

REFERENCE, OWNERS MANUAL AND TOOL KIT

STEERING

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION HUB

SUSPENSION, FRONT SHOCK MOUNTING

SUSPENSION, FRONT STABILIZER BAR

SUSPENSION, REAR CARRIER

REAR SUSPENSION CONTROL ARMS

SUSPENSION, REAR SHOCK MOUNTING

SUSPENSION, REAR STABILIZER BAR

WHEELS, FRONT

WHEELS, REAR

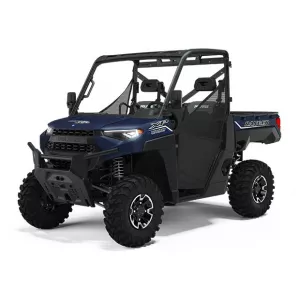

POLARIS RANGER XP 1000 EPS MD 2021
