1
Engine displacement
570
2
Year
2016
3
Trim
RZR 570
4
Parts Catalog
SEAT MOUNTING AND BELTS
5
Parts Diagram
Parts Catalog
SEAT ASM.
by
SIDE NETS
SEAT MOUNTING AND BELTS
1
2
3
4
5
6
14
8
9
10
11
12
13
14
15
1
2
2
3
4
5
6
14
14
14
8
9
10
10
11
11
12
12
13
13
14
14
15
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAT BELT ASSEMBLY; 3PT
2635134
$488,24 Unit Price incl. VAT
3
SEAT BASE WELD; REAR; BACK; MATTE BLACK
1017452458
Not Available
4
BOLT
7517442
$12,59 Unit Price incl. VAT
5
NYLOK NUT
7542525
$9,44 Unit Price incl. VAT
6
HEX FLANGE SCREW 12 MM X 1.75 MM X 25 MM
7519072
$10,49 Unit Price incl. VAT
7
NUT NYLOK 12 MMX 1.5 MM
7540000
$7,34 Unit Price incl. VAT
8
LATCH PLUNGER
7519252
$45,14 Unit Price incl. VAT
9
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
10
SEATBELT WASHER; RUBBER
5813829
$2,09 Unit Price incl. VAT
11
BOLT-SHOULDER 7/16-20 X 1.25
5137011
$10,49 Unit Price incl. VAT
12
RETAINER
5253444
9999999
Not Available
13
BOLT-CAP
5137010
9999999
Not Available
14
NUT NYLOK 12 MMX 1.5 MM
7540000
$7,34 Unit Price incl. VAT
15
SEATBELT BUCKLE CABLE
2635104
$152,24 Unit Price incl. VAT

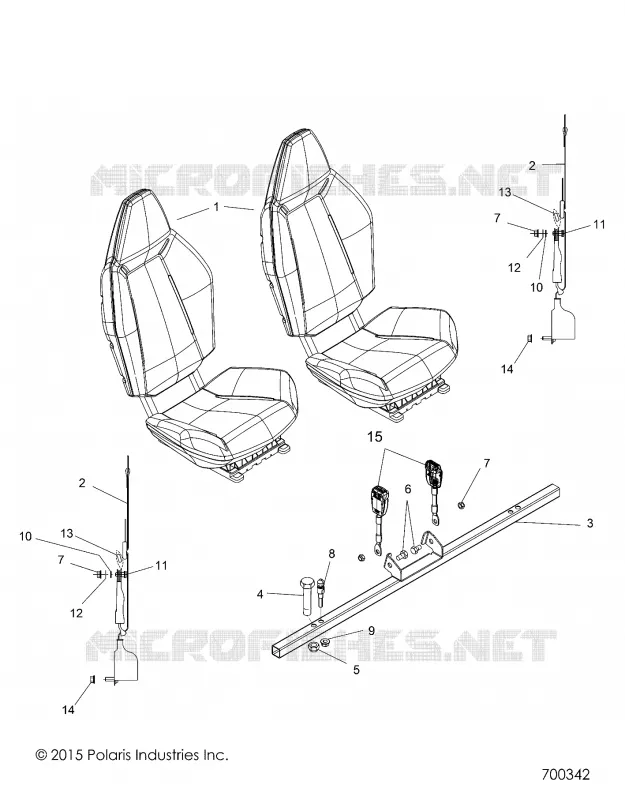

Find the detailed SEAT MOUNTING AND BELTS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
