Engine displacement
550
2
Year
2011
3
Trim
SPORTSMAN X2 550 - A11TN55AA/AZ
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNALS (BUILT 3/02/11 AND AFTER)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE (BUILT 3/02/11 AND AFTER)
by
FRONT CARGO BOX

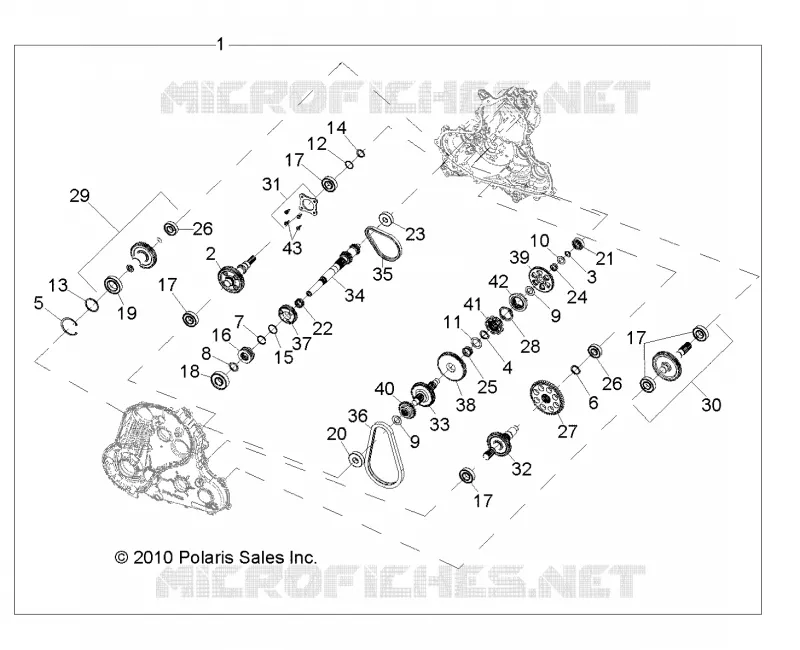

DRIVE TRAIN, MAIN GEARCASE INTERNALS (BUILT 3/02/11 AND AFTER)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
31
1
2
2
3
3
4
4
5
5
6
6
7
8
9
10
11
11
12
12
13
13
14
15
16
1
ASM-TRANS 550;BOSS/LUK
1332847
9999999
Not Available
2
INPUT SHAFT
3235194
$435,74 Unit Price incl. VAT
3
EXTERNAL RETAINING RING
3234318
$5,76 Unit Price incl. VAT
4
RING; RETAINING BASIC; EXTERNA
3234327
$13,64 Unit Price incl. VAT
5
INTERNAL RETAINING RING
3234741
$17,84 Unit Price incl. VAT
6
RING-RETAINING
3233699
$13,64 Unit Price incl. VAT
7
EXTERNAL RETAINING RING
3234641
$26,24 Unit Price incl. VAT
8
THRUST WASHER; 1.300 X .995 X .065
3234248
$17,84 Unit Price incl. VAT
9
SHIM
3234643
$68,24 Unit Price incl. VAT
10
SHIM
3234644
$26,24 Unit Price incl. VAT
11
WASHER; THRUST
3234646
$41,99 Unit Price incl. VAT
12
INPUT SHAFT SHIM PACK KIT
2204343
$54,59 Unit Price incl. VAT
13
SHIM KIT
2204268
$68,24 Unit Price incl. VAT
14
SNAP RING
3233106
$10,49 Unit Price incl. VAT
15
WASHER; THRUST
3234757
$20,99 Unit Price incl. VAT
16
DOG-ENGAGEMENT GTO HIGH
3235190
$136,49 Unit Price incl. VAT
17
BEARING
3233019
$54,59 Unit Price incl. VAT
18
BEARING
3233020
$80,84 Unit Price incl. VAT
19
BALL BEARING
3233265
$68,24 Unit Price incl. VAT
20
BALL BEARING
3234651
$27,29 Unit Price incl. VAT
21
BEARING; BALL; 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
22
NEEDLE BEARING
3234759
$27,29 Unit Price incl. VAT
23
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
24
BEARING; NEEDLE
3234655
$27,29 Unit Price incl. VAT
25
NEEDLE BEARING
3234656
$27,29 Unit Price incl. VAT
26
BEARING
3233018
$47,24 Unit Price incl. VAT
27
SPROCKET; 44 TOOTH
3234998
$125,99 Unit Price incl. VAT
28
SPRING; WAVE
3234688
$19,94 Unit Price incl. VAT
29
PRIMARY SHAFT SUB ASSEMBY; 50 TOOTH
3235191
$577,49 Unit Price incl. VAT
30
OUTPUT ASSEMBLY; FRONT
3234723
$414,74 Unit Price incl. VAT
31
SUB ASSSEMBLY; BEARING COVER
3235198
$40,94 Unit Price incl. VAT
32
OUTPUT SHAFT
3235195
$430,49 Unit Price incl. VAT
33
SHAFT; REVERSE; 56T
3234736
$482,99 Unit Price incl. VAT
34
INPUT SHAFT; 25 TOOTH
3235063
$593,24 Unit Price incl. VAT
35
SILENT CHAIN
3234737
$314,99 Unit Price incl. VAT
36
SILENT CHAIN
3234738
$456,74 Unit Price incl. VAT
37
HELICAL GEAR; 39T
3235132
9999999
Not Available
38
GEAR; 67T
3234706
$173,24 Unit Price incl. VAT
39
SPROCKET; 48 TOOTH
3234707
$68,24 Unit Price incl. VAT
40
SPROCKET 23 TOOTH
3234708
3235544
$73,49 Unit Price incl. VAT
41
DOG; ENGAGEMENT; LOW
3234718
$346,49 Unit Price incl. VAT
42
DOG-ENGAGEMENT GTO REV/LOW
3235341
$335,99 Unit Price incl. VAT
43
SUB ASSSEMBLY; BEARING COVER
3235198
$40,94 Unit Price incl. VAT
