Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN X2 - A06MN50AU
4
Parts Catalog
REAR BOX
5
Parts Diagram
Parts Catalog
REAR CAB AND MAINFRAME
by
TAILGATE
REAR BOX
1
2
2
3
3
4
4
5
5
5
5
5
5
6
7
8
8
8
8
8
8
8
8
9
9
10
10
11
12
12
13
13
14
14
15
16
16
17
18
18
19
1
1
1
2
2
3
4
5
6
6
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
1
FENDER; REAR; RIGHT
5436262
9999999
Not Available
2
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
3
BOLT
7512232
$2,09 Unit Price incl. VAT
4
SIDE TIEDOWN; GLOSS BLACK
5434803070
Not Available
5
SCR-5/16-18X1.75 TX-M
7518235
$3,14 Unit Price incl. VAT
6
FOIL-BOX
5813012
9999999
Not Available
7
BOX-REAR BASE BLK
5436490070
Not Available
8
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
9
CHANNEL; FRONT; FLAT BLACK
5248471418
Not Available
10
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
11
FENDER BOX; REAR; LEFT
5436261
9999999
Not Available
12
PIN-SEAT LATCH
5910252
5910284
$27,29 Unit Price incl. VAT
13
INSERT
7542143
$10,49 Unit Price incl. VAT
14
SCR-5/16-18X3.00 TR/TX-M
7517983
$17,84 Unit Price incl. VAT
15
PASSENGER HANDLE; LEFT; GLOSS BLACK
5436491070
Not Available
16
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT
17
PLUG-DRAIN BOX
5413002
$52,49 Unit Price incl. VAT
18
PLATE-PASSENGER; GRIP
5249846
9999999
Not Available
19
PASSENGER HANDLE; RIGHT; GLOSS BLACK
5436492070
Not Available

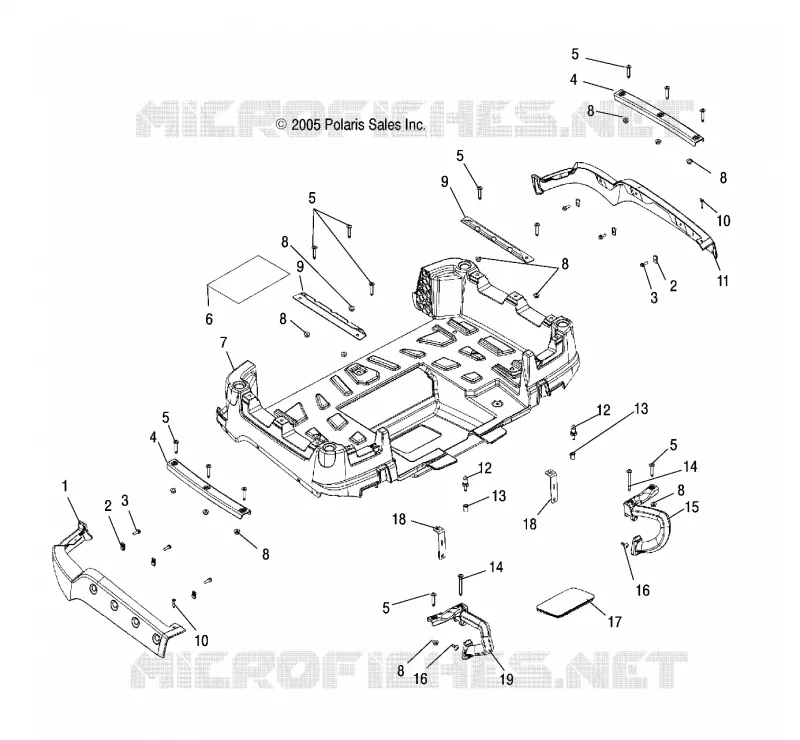

Find the detailed REAR BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
