1

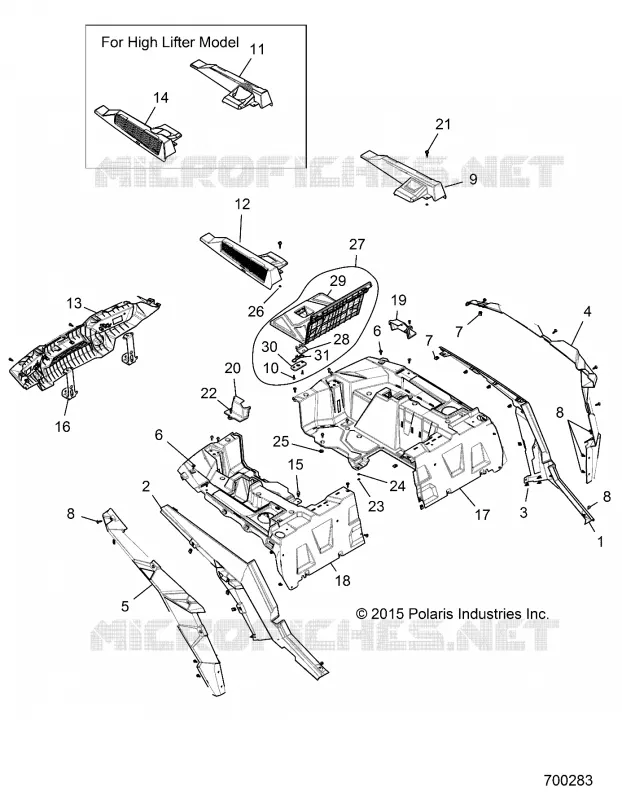

FENDER ASM REAR LEFT MATTE GOLD METALLIC
2635123703
Not Available
1
FENDER ASM LEFT SIDE WHITE LIGHTNING
2635123599
Not Available
1
FENDER; REAR; LEFT SIDE; VELOCITY BLUE
2635123689
Not Available
1
FENDER REAR LFT SIDE TTNM MET GLOSS
2635123653
Not Available
1
FENDER; REAR; LEFT SIDE; CRUISER BLACK
2635123266
Not Available
2
FENDER REAR RIGHT HAND VELO
2635126689
Not Available
2
FENDER; REAR; RIGHT HAND; CRUISER BLACK
2635126266
Not Available
2
FNDR ASM REAR CLIP RHT MTE GOLD METALLIC
2635126703
Not Available
2
FENDER REAR RIGHT SIDE WHITE LIGHTNING
2635126599
Not Available
2
FENDER REAR RHT SIDE TTNM MET GLOSS
2635126653
Not Available
3
DASH TRIM CLIP
7519806
$7,34 Unit Price incl. VAT
4
REAR LEFT FENDER FLARE; GLOSS BLACK
5439762070
Not Available
5
REAR RIGHT FENDER FLARE; GLOSS BLACK
5439763070
Not Available
6
BOLT
7519650
$7,34 Unit Price incl. VAT
7
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
8
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
9
LEFT HAND FROG SKINZ BEZEL ASSEMBLY
2635658
$204,74 Unit Price incl. VAT
10
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
11
AIR INTAKE BEZEL; LEFT
5451620070
Not Available
12
INTAKE COVER WITH MESH
2635659
$204,74 Unit Price incl. VAT
13
REAR FASCIA ASM GLOSS BLK INCLUDES DECAL
2635073070
Not Available
13
FASCIA W/ DECAL ASM REAR GLOSS BLACK
2636319070
Not Available
14
AIR INTAKE BEZEL; RIGHT; GLOSS BLACK
5451621070
Not Available
15
BOX PLUNGER LATCH
5139009
$25,19 Unit Price incl. VAT
16
FASCIA BRACKET; REAR; BLACK
5257790329
Not Available
17
BOX-REAR LH BLK
5439784070
Not Available
17
BOX-REAR LH BLK
5451778070
Not Available
18
BOX-REAR RH BLK
5450238070
Not Available
19
COVER PLASTIC;REAR ROP;LH;BLK
5453087070
Not Available
19
COVER-PLASTIC REAR ROP LH BLK
5451622070
Not Available
20
COVER; REAR; RIGHT; PLASTIC; GLOSS BLACK
5451623070
Not Available
21
KNOB 6 MM X 1.0 MM
7081619
$29,39 Unit Price incl. VAT
22
SCREW
7512026
$2,09 Unit Price incl. VAT
23
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
24
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
25
WASHER NYLON
7555916
$3,14 Unit Price incl. VAT
26
BOLT RETAINER; 1/4 -20
7670154
$2,09 Unit Price incl. VAT
27
ASM-PANEL-BOX ACCESS
2636391
2636746
$194,24 Unit Price incl. VAT
27
PANEL BOX ACCESS ASSEMBLY
2636160
$178,49 Unit Price incl. VAT
28
SEAT LATCH LEVER
5437121
$9,44 Unit Price incl. VAT
29
PANEL-BOX ACCESS BLK
5450499070
Not Available
30
COVER PLATE LATCH; GLOSS BLACK
5450510070
Not Available
31
SEAT LATCH SPRING
7081466
$57,74 Unit Price incl. VAT
