1
Engine displacement
1000
2
Year
2017
3
Trim
RZR XP 4 1000
4
Parts Catalog
POWER STEERING
5
Parts Diagram
Parts Catalog
OIL PUMP
by
FRONT SUSPENSION CONTROL ARMS
POWER STEERING
19
19
20
21
21
22
23
23
23
23
24
25
26
27
28
29
1
STEERING GEAR BOX ASSEMBLY
1824469
9999999
Not Available
2
DRIVER SIDE BOOT RACK
5412012
$115,49 Unit Price incl. VAT
3
PASSENGER SIDE BOOT RACK
5412013
$104,99 Unit Price incl. VAT
4
TAPERED ROD END; 45 DEG
7061234
$89,24 Unit Price incl. VAT
5
JAM NUT; LEFT; 14-1.5 MM
2205058
$41,99 Unit Price incl. VAT
6
BOOT CLAMP; SMALL
7082150
$12,59 Unit Price incl. VAT
7
BOOT CLAMP; LARGE
7080979
$10,49 Unit Price incl. VAT
8
ASM-TILT STEERING RVTD M10 BLK
1824420458
Not Available
9
STEERING SHAFT; UPPER
1823891
$272,99 Unit Price incl. VAT
10
EPS STEERING SHAFT; LOWER
1824012
$257,24 Unit Price incl. VAT
11
ASM-POWER STEERING;RZR;2.0T
2413483
9999999
Not Available
12
EPS MOUNT; BLACK
5257531329
Not Available
13
COVER-EPS
5438626
$68,24 Unit Price incl. VAT
14
NUT 12MM X 1.5MM
7547334
$9,44 Unit Price incl. VAT
15
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
16
HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM
7518644
$9,44 Unit Price incl. VAT
17
HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM
7519052
$3,14 Unit Price incl. VAT
18
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
19
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
20
NUT-NY INS;M10X1.5;HEX;ZINC;YW
7547385
$2,09 Unit Price incl. VAT
21
STEERING BUSHING
7556675
$24,14 Unit Price incl. VAT
22
STEERING WHEEL
1824014
2209704
$248,84 Unit Price incl. VAT
23
STEERING WHEEL CAP; VELOCITY BLUE
5450255689
Not Available
23
STEERING WHEEL CAP; WHITE LIGHTNING
5450255599
Not Available
23
STEERING WHEEL CAP; GRAY
5450255630
Not Available
23
STEERING WHEEL CAP; INDY RED
5450255293
Not Available
24
BOLT-M10X1.25X130 HXFLG-OLIVED
7518665
$25,19 Unit Price incl. VAT
25
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
26
OIL LOCKING SHOCK ASSEMBLY
7044098
$178,49 Unit Price incl. VAT
27
BOLT-SHOULDER M8-15 M6X1.0-BLK
7519980
$13,64 Unit Price incl. VAT
28
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
29
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT

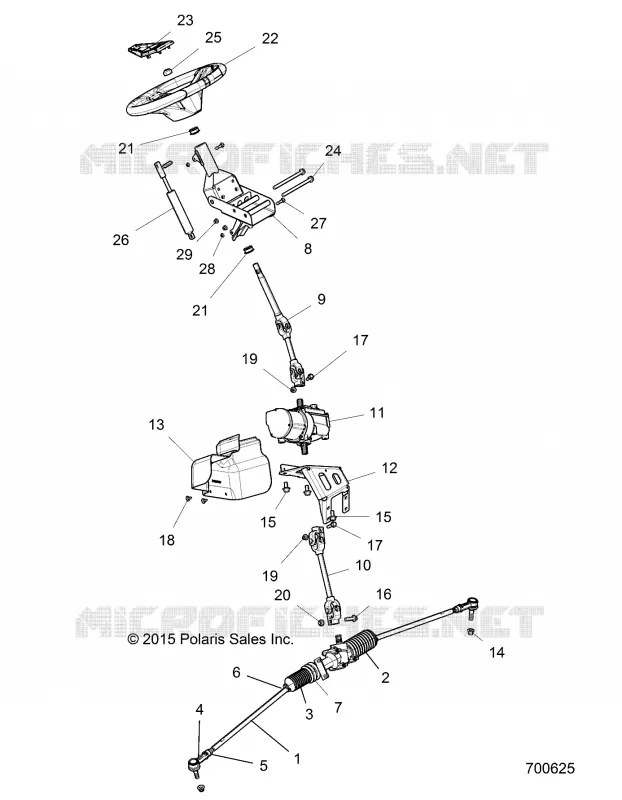

Find the detailed POWER STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
