1
Engine displacement
700
2
Year
1997
3
Trim
INTL SL 700 DELUXE - I974072
4
Parts Catalog
HULL BODY SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 a (4940874087A005)
5
Parts Diagram
Parts Catalog
FUEL / WATER SEPARATOR SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B9 (4940874087C014)
by

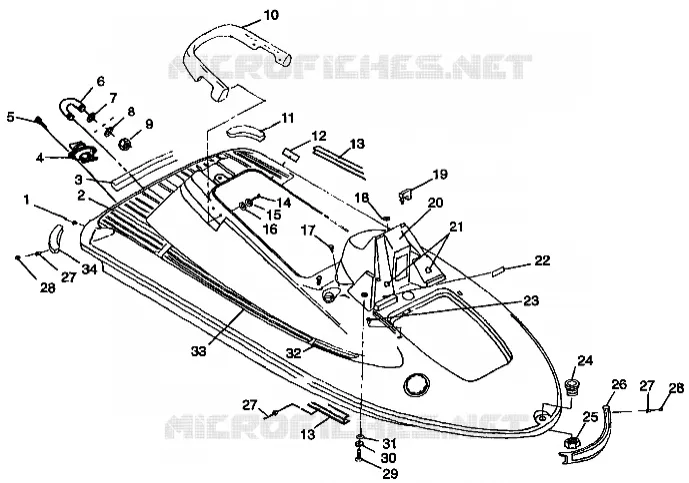

HULL BODY SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 a (4940874087A007)
HULL BODY SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 a (4940874087A005)
1
RIVET (50)
7621491
9999999
Not Available
2
PAD R.F WELL W/O TOW LSR.BL.
5811453217
Not Available
2
PAD R.F#WELL W/O TOW P.WV. (Deluxe)
5811453214
Not Available
3
RAIL RUB R SMOOTH TEAL MET
5521412168
Not Available
3
RAIL;RUB;R.SMOOTH;PUR.WAVE
5521412214
Not Available
4
ASM. PLUG BILGE
1060125
9999999
Not Available
5
SCREW; S.S.
7511882
9999999
Not Available
6
U-BOLT ASM.
1060126
9999999
Not Available
7
WASHER RUBBER(10)
7555870
9999999
Not Available
8
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
9
NUT NYLOK S.S.
7542133
9999999
Not Available
10
HANDLE GRAB PUR.WAVE
5431392214
Not Available
10
HANDLE GRAB TEAL
5431392168
Not Available
11
BUMPER;LH;CORNER;PUR.WAVE
5432582214
Not Available
11
HANDLE GRAB TEAL
5431392168
Not Available
12
DECAL WARN.SEAT/ENG.
7077196
9999999
Not Available
13
RAIL RUB SIDE SMOOTH PUR.WAVE
5521413214
Not Available
13
RUBRAIL RH SMOOTH PUR WAVE
5521416214
Not Available
14
BOLT S.S.
7515357
9999999
Not Available
15
WASHER LOCK S.S.
7552610
9999999
Not Available
16
WASHER; FLAT; S.S.
7555831
9999999
Not Available
17
CLIP; XMASTREE(10)
7080514
9999999
Not Available
18
GROMMET
5410720
9999999
Not Available
19
BUMPER CORNER
5431740
9999999
Not Available
20
POD STRG NOTCHED TEAL MT
5432424168
Not Available
20
POD STRG NOTCH LSR BLUE
5432146217
Not Available
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
DECAL;RECOMMENDED OIL
7074959
9999999
Not Available
23
BUMPER DECK
5431741
9999999
Not Available
24
GROMMET BOW EYE TEAL MT.
5431950168
Not Available
24
GROMMET BOW EYE PUR.WAVE
5431950214
Not Available
25
NUT BOW EYE TEAL MT
5431951168
Not Available
25
NUT BOW EYE PUR.WAVE
5431951214
Not Available
26
BUMPER FR SHORT PUR.WAVE
5411230214
Not Available
26
BUMPER;FR;SHORT;TEAL MT
5411230168
Not Available
27
RIVET(50)
7621511
9999999
Not Available
28
PLUG R.BUMP PUR.WV.
5431994214
Not Available
28
PLUG R.BUMP TEAL MT.
5431994168
Not Available
29
BOLT
7515127
9999999
Not Available
30
WASHER; LOCK; S.S.
7555838
9999999
Not Available
31
WASHER S.S.(10)
7555891
9999999
Not Available
32
PAD F.F WELL GRV P.WV.
5811477214
Not Available
32
PAD F.F#WELL GRV LSR.BL.
5811477217
Not Available
33
PAD CTR.F WELL GRV P.WV.
5811478214
Not Available
33
PAD CTR.F WELL GRV LSRBL
5811478217
Not Available
34
BUMPER;RH;CORNER;PUR.WAVE
5432583214
Not Available
34
BUMPER RH CORNER TEAL
5432583168
Not Available

Find the detailed HULL BODY SL 700 B974071, Intl. SL 700 I974071, SL 700 Deluxe B974072 a (4940874087A005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
