Parts Catalog
ENGINE, CRANKCASE AND CRANKSHAFT
5

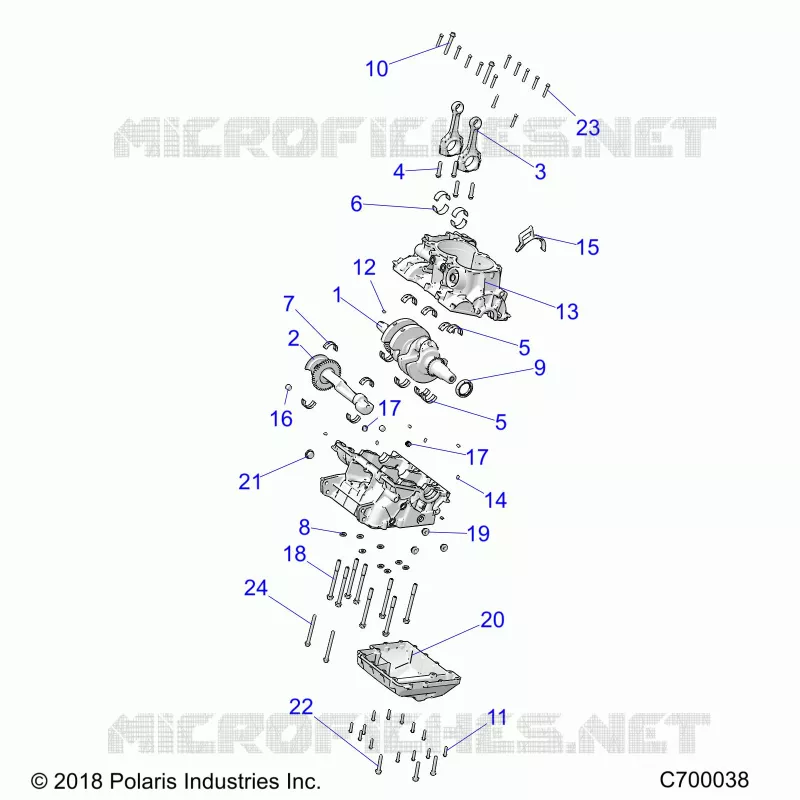

Parts Diagram
Parts Catalog
ENGINE, COOLING SYSTEM
by
CYLINDER AND PISTON
ENGINE, CRANKCASE AND CRANKSHAFT
1
2
3
4
5
5
5
5
5
5
5
5
5
5
6
6
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
1
ASM-CRANKSHAFT HVAC
3024017
$1 847,99 Unit Price incl. VAT
2
BALANCE SHAFT ASSEMBLY
1204835
$677,24 Unit Price incl. VAT
3
CONNECTING ROD ASSEMBLY
3023077
3024568
$157,49 Unit Price incl. VAT
4
BOLT FLANGE MJ9 X 1 X 40
7520378
$10,49 Unit Price incl. VAT
5
BEARING-MAIN G-90 41MM GRD5
3515160005
Not Available
5
BEARING-MAIN G-90 41MM GRD3
3515160003
Not Available
5
BEARING-MAIN G-90 41MM GRD4
3515160004
Not Available
5
BEARING-MAIN G-90 41MM GRD1
3515160001
Not Available
5
BEARING-MAIN G-90 41MM GRD2
3515160002
Not Available
6
BEARING-CON ROD;G-90;41MM GRD3
3515159003
Not Available
6
BEARING-CON ROD;G-90;41MM GRD2
3515159002
Not Available
6
BEARING-CON ROD;G-90;41MM GRD4
3515159004
Not Available
6
BEARING-CON ROD;G-90;41MM GRD1
3515159001
Not Available
7
BALL SHAFT BEARING; 38 X 41 X 17.5
3514756
$16,79 Unit Price incl. VAT
8
WRENCH-8MMX10MM OPEN END
Not Available
9
CRANKSHAFT SEAL
3610284
3610419
Not Available
10
SCREW
7519186
$10,49 Unit Price incl. VAT
11
SCREW
7519297
$7,34 Unit Price incl. VAT
12
WOODRUFF KEY
7721122
$13,64 Unit Price incl. VAT
13
CRANKCASE KIT
2207831
$2 005,49 Unit Price incl. VAT
14
PIN-DOWEL M6X10
5143560
$17,84 Unit Price incl. VAT
15
DIVERTER-OIL DRAIN
5455583
$26,24 Unit Price incl. VAT
16
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
17
PLUG-HEX SOCKET;1/4X18;SEALANT
7518835
$10,49 Unit Price incl. VAT
18
SCR-HXFL M10X1.25X113MM 10.9
7527904
7528378
$4,50 Unit Price incl. VAT
19
PLUG-HEX SCKT;W/O-RING;M16X1.5
7052642
$13,64 Unit Price incl. VAT
20
COVER-SUMP MACH
5143719
$204,74 Unit Price incl. VAT
21
PLUG-HEX SCKT;W/O-RING;M20X1.5
7052643
$14,69 Unit Price incl. VAT
22
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
23
HEX FLANGE SCREW; 6 MM X 35 MM
7518578
$7,34 Unit Price incl. VAT
24
SCREW
7519154
$13,64 Unit Price incl. VAT

Find the detailed ENGINE, CRANKCASE AND CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
