1
Engine displacement
925
2
Year
2018
3
Trim
RZR XP TURBO TRACTOR
4
Parts Catalog
DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
BRAKES, PEDAL AND MASTER CYLINDER
by
DRIVE TRAIN, FRONT GEARCASE MOUNTING
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
INNER CLUTCH COVER ASSEMBLY
2636329
$524,99 Unit Price incl. VAT
2
COVER SEAL
5813708
$41,99 Unit Price incl. VAT
3
O-RING SEAL; .128 X 7.895
5415647
$3,14 Unit Price incl. VAT
4
HEX FLANGE HEAD SCREW; 6 MM X 12 MM
7517886
$3,14 Unit Price incl. VAT
5
HEX HEAD FLANGE BOLT 10MM X 1.5MM X115MM
7518526
$5,76 Unit Price incl. VAT
6
HEX FLANGE SCREW 12MM X 1.75MM X 245MM
7518970
$41,99 Unit Price incl. VAT
7
SCR-TXBH-M10X1.5X45 8.8ZOD P30
7520323
$10,49 Unit Price incl. VAT
8
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
9
HEX FLANGE NUT; 12 MM X 1.75 MM
7547441
$9,44 Unit Price incl. VAT
10
WSHR FLAT INN DIA 10.5 OUT DIA
7556155
$9,44 Unit Price incl. VAT
11
OUTER CLUTCH COVER ASSEMBLY
2636330
$346,49 Unit Price incl. VAT
12
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
13
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
14
CLUTCH COVER SEAL; OUTER
5415793
$68,24 Unit Price incl. VAT
15
DECAL-BELT CAUTION/CHECK
7177469
Not Available
16
SCREW 6 MM X 1.0 MM X 25 MM
7519754
$7,34 Unit Price incl. VAT
17
CLUTCH DUCT INLET
5415509
$136,49 Unit Price incl. VAT
18
CLAMP-WORM DRIVE;.44WX4.25DIA
7080741
$36,74 Unit Price incl. VAT
19
OUTLET DUCT PLATE MOUNT
5261467
$52,49 Unit Price incl. VAT
20
CLUTCH DUCT; OUTLET
5415510
$115,49 Unit Price incl. VAT
21
MOUNT-BRKT OUTLET DUCT
5261466
9999999
Not Available
22
FLANGE HEAD SCREW; 5 MM X 12 MM
7517255
$13,64 Unit Price incl. VAT
23
SOCKET HEAD SCREW; 5 MM X 25 MM
7518086
$10,49 Unit Price incl. VAT
24
TRANSJOINT BRACKET; MAG; MACHINED
5139822
5144809
$89,24 Unit Price incl. VAT
25
HEX HEAD FLANGE BOLT; 10 MM X 45 MM
7518531
$9,44 Unit Price incl. VAT
26
COVER BAFFLE; CLUTCH; INNER; MACHINED
5139918
$40,94 Unit Price incl. VAT
27
SCR-M5X0.8X10 SOC/CP-D
7517847
$5,76 Unit Price incl. VAT

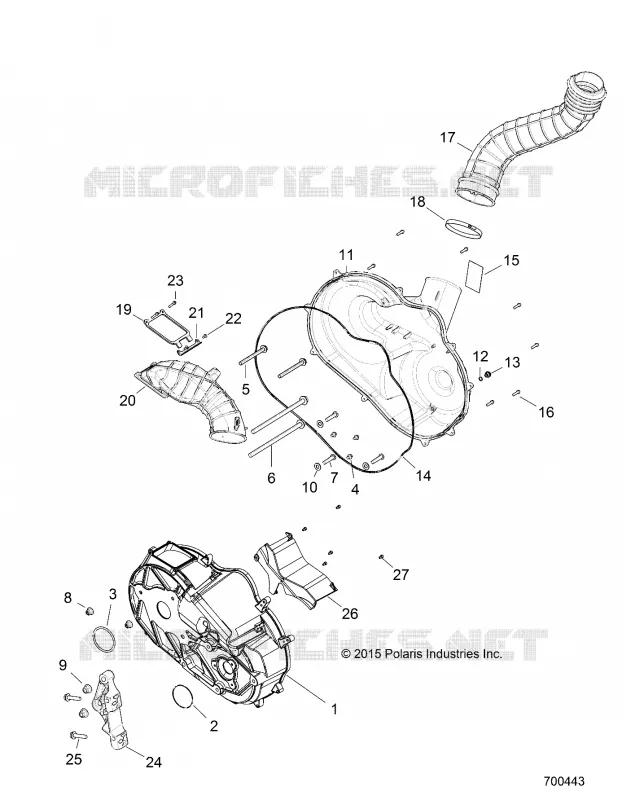

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
