1
Engine displacement
300
2
Year
1994
3
Trim
300 6X6 - W948730
4
Parts Catalog
SHIFT LINKAGE ASSEMBLY 6X6 300 W948730 (4926792679C014)
5
Parts Diagram
Parts Catalog
TOOL KIT ASSEMBLY 6X6 300 W948730 (4926792679C013)
by
GEARCASE ASSEMBLY 6X6 300 W948730 (4926792679D001)
SHIFT LINKAGE ASSEMBLY 6X6 300 W948730 (4926792679C014)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
1
2
3
4
5
6
7
7
7
7
8
9
10
11
12
13
14
15
1
COVER SHIFT KNOB
3233136
9999999
Not Available
2
SCREW
3233079
Not Available
3
DESC NOT_AVAILABLE
3133138
Not Available
4
ROD GEAR SELECTOR Substituted by 3233161
3233137
Not Available
5
WIRE STRAP
3233131
9999999
Not Available
6
CLAMP
3233132
9999999
Not Available
7
BOOT GEAR SELECTOR
3233133
9999999
Not Available
8
COVER GEAR SELECTOR
3233081
9999999
Not Available
9
SPRING HOLDING
3233065
9999999
Not Available
10
STRIKER Substituted by 3233197
3233061
Not Available
11
CUP; BEARING
3233063
9999999
Not Available
12
INTERLOCK BUTTERFLY
3233084
9999999
Not Available
13
SPRING CENTERING
3233083
9999999
Not Available
14
PIN STOP
3233062
9999999
Not Available
15
DETENT SPRING
3233069
9999999
Not Available
16
DETENT BULLET
3233060
9999999
Not Available
17
SWITCH GEAR SELECTOR
3233087
9999999
Not Available
18
GEAR SELECTOR BODY
3233082
9999999
Not Available
19
O-RING
3233076
$11,54 Unit Price incl. VAT
20
SLIDE HIGH/REV.
3233088
Not Available
21
BOLT
7512269
9999999
Not Available
22
WASHER
7552605
9999999
Not Available
23
SLIDE LOW
3233089
9999999
Not Available
24
PIN INTERLOCK
3233070
9999999
Not Available
25
PIN GROOVE
3233067
9999999
Not Available
26
SCREW
3233085
9999999
Not Available
27
SELECTOR ASM GEAR (Incl. 1-20 23-26)
1341133
Not Available
28
ROD SHIFT-LINK HIGH
5020748
9999999
Not Available
29
ROD SHIFT-LINK LOW
5020749
9999999
Not Available
30
ROD END; LH
7060141
7061013
$120,74 Unit Price incl. VAT
31
ROD END; RH
7060142
9999999
Not Available
32
NUT
7546701
9999999
Not Available
33
BOLT
7546702
9999999
Not Available
34
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT

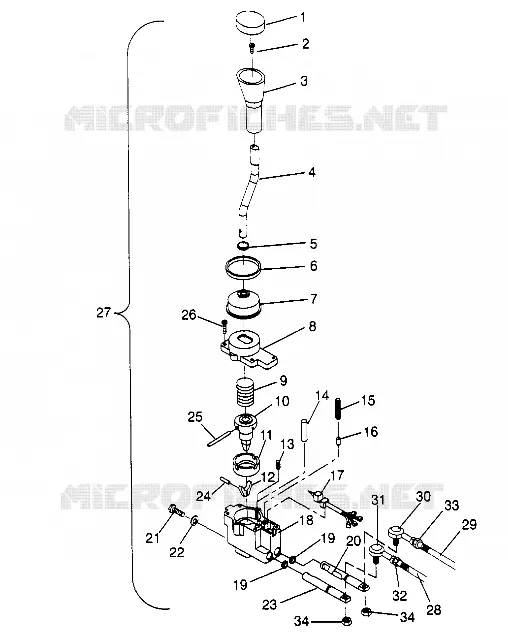

Find the detailed SHIFT LINKAGE ASSEMBLY 6X6 300 W948730 (4926792679C014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
