SUSPENSION, REAR TORQUE ARM for POLARIS 850 AXYS INDY XC 137 from 2021

SUSPENSION, REAR TORQUE ARM

1

TRAILING ARM; REAR; BLACK

1543906329

Not Available

2

PLAIN WHEEL ASSEMBLY

1590001

$141,74 Unit Price incl. VAT

2

BEARING-6007

3514445

1590001

$141,74 Unit Price incl. VAT

2

RING-RETAINING

7710486

9999999

Not Available

3

WASHER

7555939

9999999

Not Available

4

TORSION SPRING SLEEVE

5434989

$7,34 Unit Price incl. VAT

5

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

6

SHAFT-RTA MOUNT

5141400

$26,24 Unit Price incl. VAT

7

CRANK BUSHING

5438876

$13,64 Unit Price incl. VAT

8

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

9

SCR-M8X1.25X65-HX/FL-Y CL 10.9

7519212

$9,44 Unit Price incl. VAT

10

ASM-ARM 83.2 NARROW

1544129

$73,49 Unit Price incl. VAT

11

WASHER-.344X.688X.063 FL-ZOD

7556524

$1,56 Unit Price incl. VAT

12

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

13

RIGHT HAND TORSION SPRING .375; BLACK

7045210329

Not Available

13

SPRING-TOR .359S 80 11# LH BLK

7045190329

Not Available

13

TORSION SPRING; BLACK

7045209329

Not Available

13

TORSION SPRING .375S 80 RIGHT SIDE BLACK

7045208329

Not Available

13

SPRING-TOR .359S 80 11# RH BLK

7045191329

Not Available

13

TORSION SPRING .375/80/13 LFT SIDE BLK

7045207329

Not Available

14

SPACER-.520X.770X1.125 HDPE

5334285

$4,19 Unit Price incl. VAT

15

ROLLER-SPRING TRI-ADJ LH

5434589

$68,24 Unit Price incl. VAT

15

ROLLER-SPRING TRI-ADJ RH

5434590

$62,99 Unit Price incl. VAT

16

PUSH ON CLIP

7080394

$4,19 Unit Price incl. VAT

16

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

17

HEX HEAD FLANGE BOLT 10MM X 1.5MM X230MM

7518472

$11,54 Unit Price incl. VAT

18

PULL ROD BUSHING

5142128

$15,74 Unit Price incl. VAT

19

SHAFT-RTA LOWER

5142129

$47,24 Unit Price incl. VAT

20

HEX FLANGE SCREW; 8 MM X 1.25 MM X 80 MM

7519217

$3,14 Unit Price incl. VAT

21

SHOCK ROD

5141836

$73,49 Unit Price incl. VAT

22

SCR-HXFL-M8X1.25X65 8.8 ZOD

7519971

7521332-65

$3,14 Unit Price incl. VAT

23

SHOCK PIVOT ARM BUSHING

5142127

$20,99 Unit Price incl. VAT

24

SHOCK PIVOT ARM WELD; BLACK

1544017329

Not Available

25

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$6,29 Unit Price incl. VAT

26

HEX NUT; 8 MM X 1.25 MM

7547480

$4,19 Unit Price incl. VAT

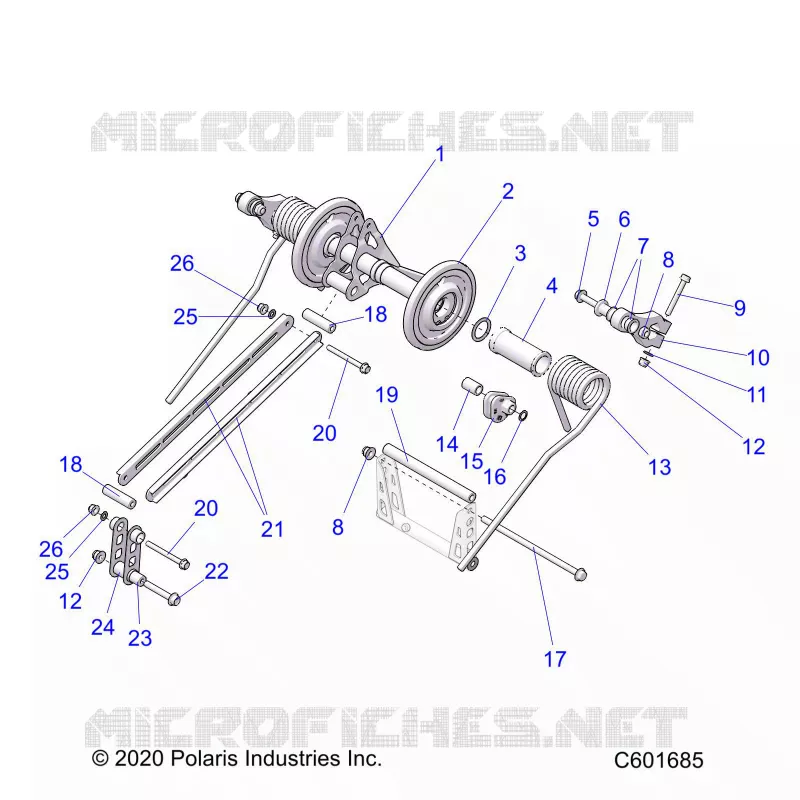

Find the detailed SUSPENSION, REAR TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
