DRIVE TRAIN, CHAINCASE for POLARIS 550 IQ LXT from 2012

DRIVE TRAIN, CHAINCASE

1

OIL SEAL

3610030

$36,74 Unit Price incl. VAT

2

BALL BEARING #6205

3514309

3515910

$30,23 Unit Price incl. VAT

3

PIN-ROLL 125 X1.25

7661867

9999999

Not Available

4

RETAINING RING

7718406

$11,54 Unit Price incl. VAT

5

CHAIN TIGHTENER ASSEMBLY

1332427

$135,44 Unit Price incl. VAT

6

WASHER-THREAD SEAL;3/8-16-UNC

7556340

$6,29 Unit Price incl. VAT

7

NUT-3/8-16 HX FLG GRF ZY

7547304

9999999

Not Available

8

SCREW(10)

7515511

$7,34 Unit Price incl. VAT

9

SPKT 18T 3/4W 15 SPL HV PM

3221094

$68,24 Unit Price incl. VAT

10

WASHER SPRING

7571620

$13,64 Unit Price incl. VAT

11

NUT-5/8-18 THIN;NYL INSERT-Y

7547202

$10,49 Unit Price incl. VAT

12

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

13

SCR-3/8-24X.75 HXHD/NYL GR8

7518717

9999999

Not Available

14

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

15

SPRKT-42T 3/4W LWT HYVO PM

3222192

$104,99 Unit Price incl. VAT

16

MAGNETIC PLUG

7052394

9999999

Not Available

17

CHAINCASE COVER GASKET; 8.373

5813205

$41,99 Unit Price incl. VAT

17

ASM-COVER 8.373 W/SIGHT GLASS

1332596

9999999

Not Available

17

CHAINCASE AND COVER SERVICE KIT

2203548

9999999

Not Available

17

SCREW

7515179

$4,19 Unit Price incl. VAT

18

PLUG-9/16-20-UN2A MAGNETIZED

7052382

9999999

Not Available

19

HYVO CHAIN

3221108

$262,49 Unit Price incl. VAT

20

BOLT-CARRIAGE 3/8-16X1.75-Y

7518268

9999999

Not Available

21

BOLT-CARR 3/8-16X1.00 GR5-Y

7518494

$6,29 Unit Price incl. VAT

22

FLANGED NUT; 3/8-16

7547180

$4,19 Unit Price incl. VAT

23

CHAINCASE COVER GASKET; 8.373

5812755

$41,99 Unit Price incl. VAT

24

COVER WITH SIGHT GLASS ASSEMBLY

1332354

9999999

Not Available

25

FOIL

5812758

9999999

Not Available

26

SCREW

7512225

9999999

Not Available

27

BRKT-COVER CHAINCASE;BLK

5251316329

Not Available

28

OIL CHECK; SIGHT GLASS

3610126

9999999

Not Available

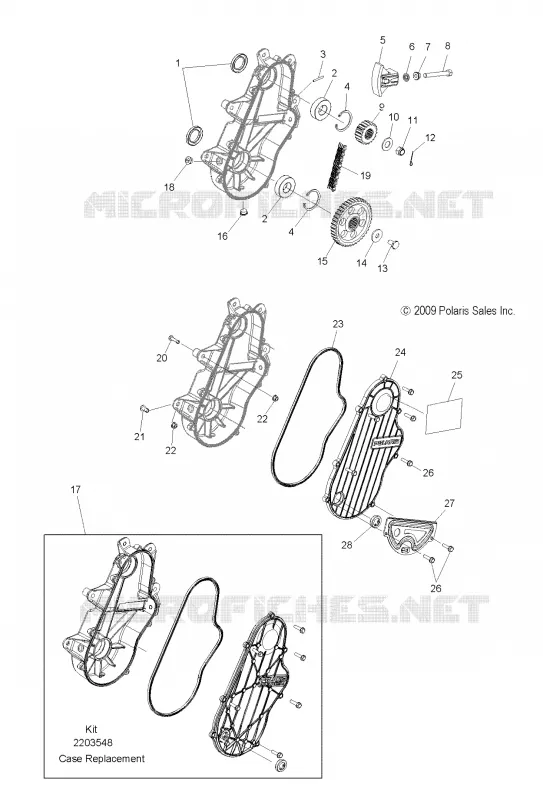

Find the detailed DRIVE TRAIN, CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
