DRIVE TRAIN, CLUTCH COVER AND DUCTING for POLARIS RANGER 570 from 2020

CHASSIS, FRAME AND FRONT BUMPER

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, CLUTCH COVER AND DUCTING

1

CLAMP-VINYL COATED;1.00IN ID

7081854

$10,49 Unit Price incl. VAT

2

SCREW

7512098

$3,14 Unit Price incl. VAT

3

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

4

CLAMP HOSE S.S.(10)

7080451

$13,64 Unit Price incl. VAT

5

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

6

HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK

7518533

$2,09 Unit Price incl. VAT

7

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

OUTER CLUTCH COVER ASSEMBLY

2634179

$346,49 Unit Price incl. VAT

8

DRAIN PLUG

5434264

$10,49 Unit Price incl. VAT

9

CLUTCH COVER ASSEMBLY; INNER

2634188

$257,24 Unit Price incl. VAT

9

CLUTCH COVER; INNER

5454520

$314,99 Unit Price incl. VAT

10

AIR INLET CLUTCH DUCT

5438891

$52,49 Unit Price incl. VAT

11

CLUTCH COVER SEAL OUTER

5521831

5526449

$78,74 Unit Price incl. VAT

12

CLUTCH HOSE INTAKE

5414501

$104,99 Unit Price incl. VAT

13

O RING-.364X.504X.07

5410542

5411432

$9,44 Unit Price incl. VAT

14

DECAL-BELT CAUTION/CHECK

7177469

Not Available

15

SCREW HI/LO M6 X 35

7519330

$7,34 Unit Price incl. VAT

16

BOLT/WASHER ASSMEBLY; 20 MM

7519278

$9,44 Unit Price incl. VAT

17

DUCT-OUTLET CLUTCH

5450181

2636954

$346,49 Unit Price incl. VAT

17

CLUTCH HOSE; AIR OUTLET

5416458

$136,49 Unit Price incl. VAT

18

DECAL-WARN CLUTCH COVER

7175488

Not Available

19

BRKT-SCREEN BELT

5264754

$62,99 Unit Price incl. VAT

20

NARROW BAND CLAMP; 70-90 MM

7081279

$5,76 Unit Price incl. VAT

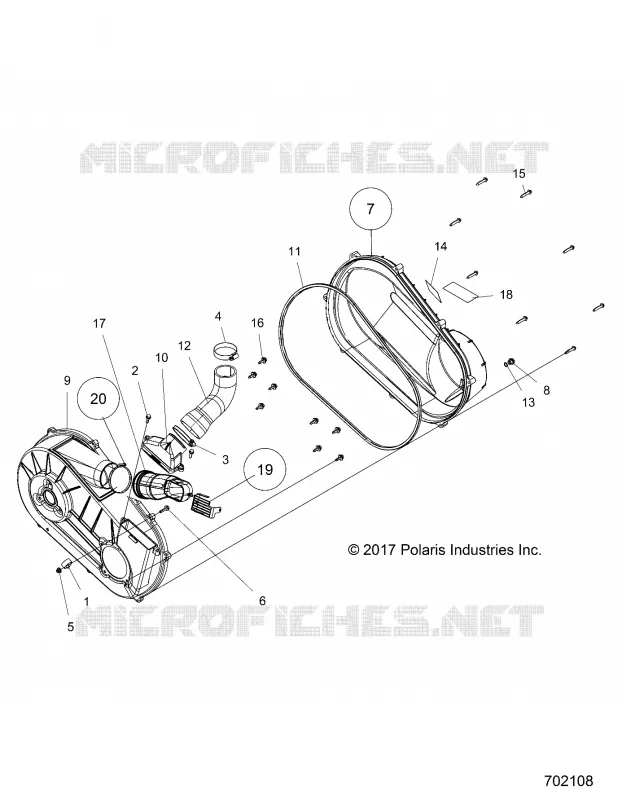

Find the detailed DRIVE TRAIN, CLUTCH COVER AND DUCTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
