MID GEARCASE
5
Parts Diagram
Parts Catalog
GEARCASE
by
GEAR SELECTOR/DIFFERENTIAL LOCK
MID GEARCASE
-
13
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
-
ASM-MID GEARCASE
1341405
9999999
Not Available
1
SCREW
3233252
$9,44 Unit Price incl. VAT
2
DRAIN PLUG
3233805
$19,94 Unit Price incl. VAT
3
SEAL
3233803
$31,49 Unit Price incl. VAT
4
TUBE VENT
3233524
$15,74 Unit Price incl. VAT
5
COVER-OUTPUT MACH
3233982
9999999
Not Available
6
SHIM; 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
7
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
8
RING GEAR; 37T; MACHINED
3233985
9999999
Not Available
9
SHAFT-OUTPUT
3233986
9999999
Not Available
10
BALL BEARING; 30 X 42 X 7
3233806
$60,89 Unit Price incl. VAT
11
SPRING-WAVE
3233987
9999999
Not Available
12
O-RING; -168
3233988
$25,19 Unit Price incl. VAT
13
KNOCK PIPE
3233529
9999999
Not Available
14
TRIPLE LIP SEAL
3233788
$57,74 Unit Price incl. VAT
15
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
16
THRUST WASHER-1.007X1.542X.063
3234050
9999999
Not Available
17
GARLOCK BUSHING
3233989
$52,49 Unit Price incl. VAT
18
GEARCASE-RII MID MACH
3233983
9999999
Not Available
19
BUSHING
3233292
9999999
Not Available
20
PINIONT; 10T; MACHINED
3233990
9999999
Not Available
21
GEAR-26T OUTPUT
3233991
9999999
Not Available
22
BALL BEARING
3233589
$101,84 Unit Price incl. VAT
23
TRIPLE LIP SEAL
3233785
$36,74 Unit Price incl. VAT
24
COVER-INPUT MACH
3233984
9999999
Not Available
25
GEAR-26T INPUT
3233993
9999999
Not Available
26
OUTPUT THRU SHAFT
3233992
9999999
Not Available

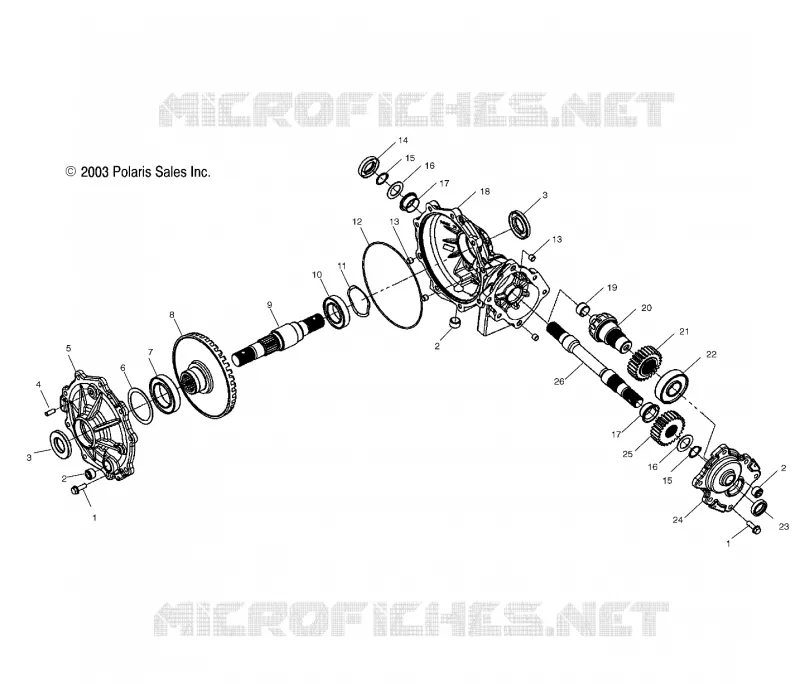

Find the detailed MID GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
