BRAKES, BRAKE PEDAL AND MASTER CYLINDER for POLARIS SPORTSMAN 570 EFI from 2019

BRAKES, FRONT BRAKE LEVER AND MASTER CYLINDER

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

1

2-EAR RESERVOIR BRAKE ASSEMBLY; TALL

1911224

$68,24 Unit Price incl. VAT

2

MASTER CYLINDER FOOT BRAKE ASSEMBLY

1912301

$178,49 Unit Price incl. VAT

3

DIAPHRAGM-RESERVOIR BRAKE

5413262

$9,44 Unit Price incl. VAT

4

RING-RESERVOIR BRAKE

5437041

$10,49 Unit Price incl. VAT

5

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

6

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

6

HOSE-RESERVOIR BRAKE 660MM

1911267660

Not Available

6

SHEATH-REFLECTSLEEVE 16MMX33CM

845010533

Not Available

7

SCREW

7512126

$9,44 Unit Price incl. VAT

8

COTTER PIN

7661401

$1,56 Unit Price incl. VAT

9

WASHER

7555919

$7,34 Unit Price incl. VAT

10

PEDAL PIVOT BUSHING

5433189

$7,34 Unit Price incl. VAT

11

WELD-BRAKE PEDAL M.BLK

1911657458

Not Available

11

BRAKE PEDAL WELD; MEDIUM GLOSS BLACK

1911657067

Not Available

12

TORSION SPRING; BRAKE

7041750

$16,79 Unit Price incl. VAT

13

SCREW

7517312

$2,09 Unit Price incl. VAT

14

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

15

CLEVIS PIN

7661830

$7,34 Unit Price incl. VAT

16

PIN-COTTER 5/64X3/4-Y

7661900

$6,29 Unit Price incl. VAT

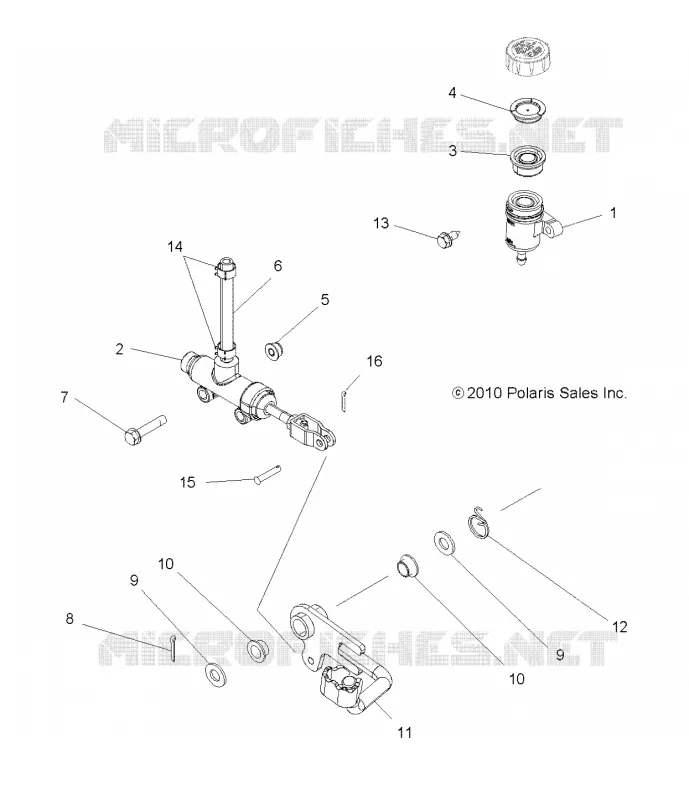

Find the detailed BRAKES, BRAKE PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
